One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
Product Details:
Place of Origin: | Zhejiang , China |
Brand Name: | YEEDA |
Certification: | CE |
Model Number: | YD05-001 |
Payment & Shipping Terms:
Minimum Order Quantity: | 20 PCS |
---|---|
Price: | USD90.95/PCS |
Packaging Details: | Wood Box |
Delivery Time: | 15DAYS |
Payment Terms: | T/T |
Supply Ability: | 1000PCS/MONTH |
Detail Information |
|||
Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD05-001 |
---|---|---|---|
Name: | 0.5T One Stage Hydraulic Transmission Jack | Capacity: | 500KGS |
Color: | Red,blue, Customized Color Acceptable | Surface Treatment: | Powder Coating |
MOQ: | 20 PCS | Delivery Time: | 15 Days After Received Deposit |
Packaging: | Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
Test Video: | Provided | Certification: | CE |
Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
High Light: | 500kg Hydraulic Transmission Jack,0.5 Ton Hydraulic Transmission Jack,0.5t Air Over Hydraulic Transmission Jack |
Product Description
Model No.: YD05-001

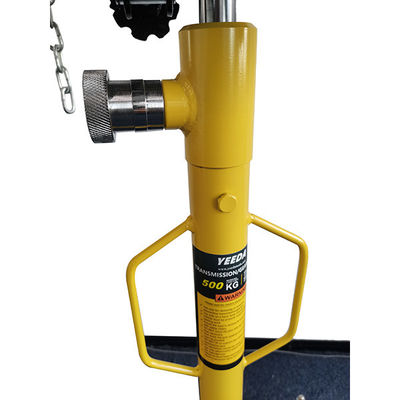

0.5 Ton One Stage Hydraulic Transmission Jack With Adaptor
With this high-quality hydraulic jack from Yeeda, you can easily lift and lower transmissions or other heavy parts with little effort. The transmission jack is capable of lifting up to 0.5 tonnes. This practical tool is simply placed under the vehicle and raised using the foot pedal. You can lower it using the hand wheel, which offers infinite positioning. Order your hydraulic jack from tectake today.
Highlights
- lifting capacity of 0.5 tonnes
- adjustable height

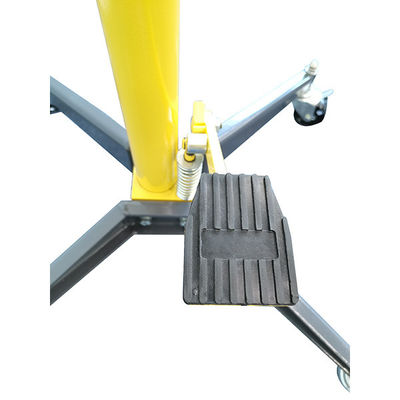

- hydraulic lift by means of a foot pedal
- lowering by means of a handwheel
- the lowering speed is especially closely adjustable

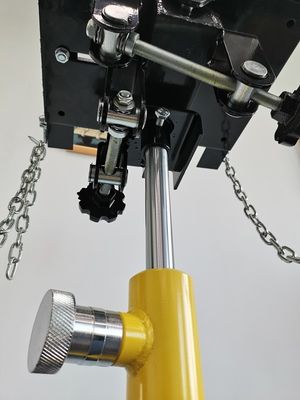

- backup chain for more safety and stability
- retaining plate individually adjustable to the shape of the gear or transmission

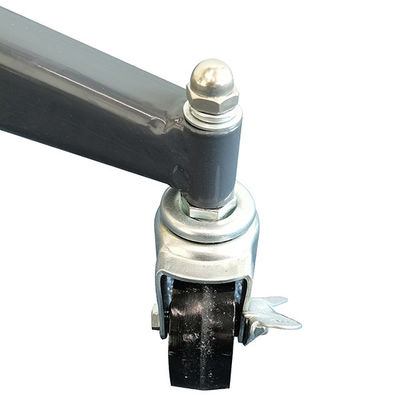

- stable, steerable wheels
- two wheels with brake function
- Colour: Yellow+Gray+Black
Technical details
- total dimensions (LxW): 70 x 65 x 127 cm
- drive: hydraulic
- working height min. and max.: 127 cm - 195 cm
- stroke: 68 cm
- gearbox mount platform (LxW): 36 x 27 cm
- cross base (LxW): 70 x 65 cm
- wheels diameter: 8 cm
- backup chain (L): 80 cm
- bearing capacity (max.): 500 kg
- material: steel
- Net weight: 37 kg
- G.W.: 39 kg
- Package Size: 1270 x 25 x 27mm
