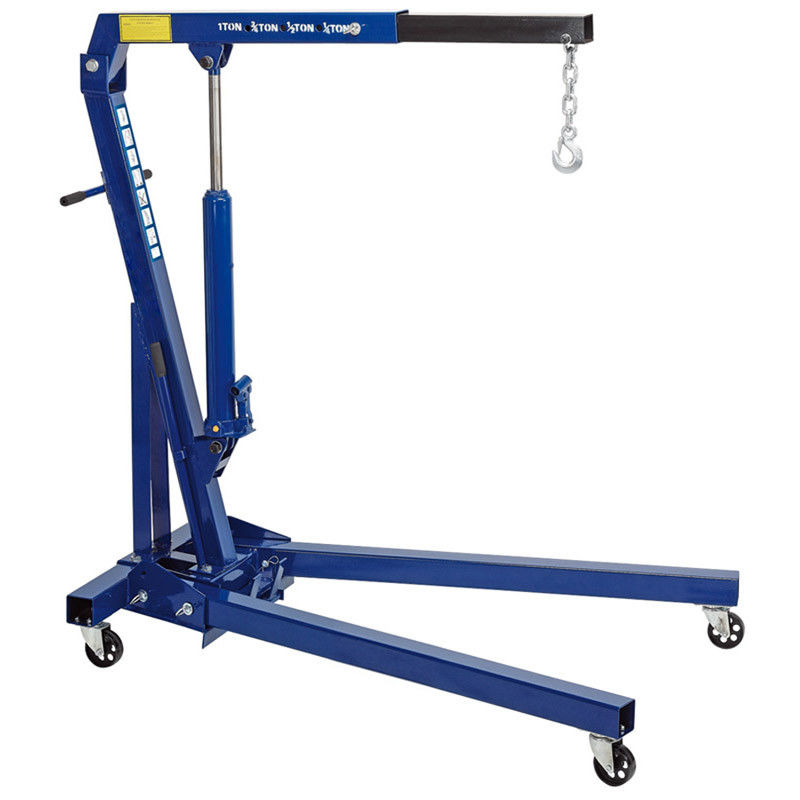

1Ton Engine Hoist And Stand

This workshop crane is the best solution for moving heavy weights effortlessly from one point to another. The crane moves weights up to 1000 kg via hydraulic lifting mechanism. Like that, you can not only simplify the workflow but also speed it up. You can use the crane for a variety of things such as lifting an engine out of a car or moving heavy boxes. However, it isn't only ideal for a workshop. You can also use it as a carrying aid for cobblestone or for the removal of roots.

The length of the lifting arm is between 960 to 1240 mm. Depending on the situation you can individually adjust the length of the arm. It can also be extended to a height of 2120 mm. The wheels on the crane make sure that you can't only lift but also move heavy items. When not in use, it can be folded and stored to save space.



Foldable Engine Crane up to 1T and Extendable Lifting Arm 960-1240 mm



1TONNE FOLDING ENGINE GRANE



FEATURES:
Foldable engine crane with single piston hydraulic pump. Four pre-set positions for lifting.

SPECIFICATION:
Capacity ... 1000kg(2200lb)
4 Lifting Positions ... 250kg(550lb); 500kg(1100lb); 750kg(1650lb); 1000kg(2200lb)
Frame height ... 150cm(59")
Frame length ... 145cm(57")
Frame width ... 100cm(39.37")
Dist. between ctr. of front wheels ... 80cm(31.5")
Dist. between ctr. of rear wheels ... 54cm(21.2")

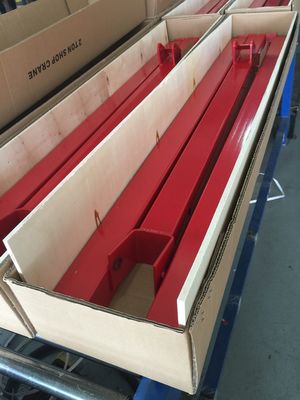

Weight & Package Dimensions:
Package 1
G.W.			33LBS (15KGS)
N.W.			28.6LBS (13KGS)
PACKAGE SIZE:			28"x13.8"x6.3"x (71x35x16CM)
Package 2
G.W.			125LBS (57KGS)
N.W.			121LBS (55KGS)
PACKAGE SIZE:			55"x11.8"x7.8" (140x30x20CM)
