50tonne Hydraulic Press With Gauge
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD06-011 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|

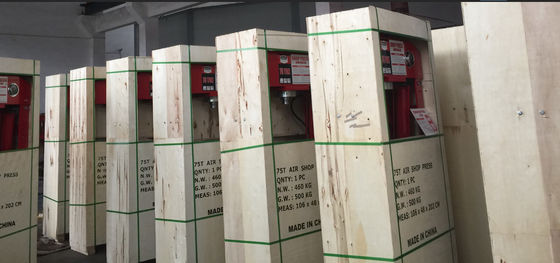

| Packaging Details: | Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 300PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD06-011 |
|---|---|---|---|
| Name: | 75tonne Pneumatic/Hydraulic Workshop Press With Gague | Color: | Red,blue, Customized Color Acceptable |
| Surface Treatment: | Powder Coating | MOQ: | 20 PCS |
| Delivery Time: | 20 Days After Received Deposit | Packaging: | Crate |
| Payment Term: | T/T 30% Deposit, 70% Before Shipment | Test Video: | Provided |
| Certification: | CE | Warranty Of Core Components: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | ||
| High Light: | 50tonne Hydraulic Press With Gauge,Handy Hydraulic Press With Gauge,Handy 50 Ton Hydraulic Forging Press |
||
Product Description

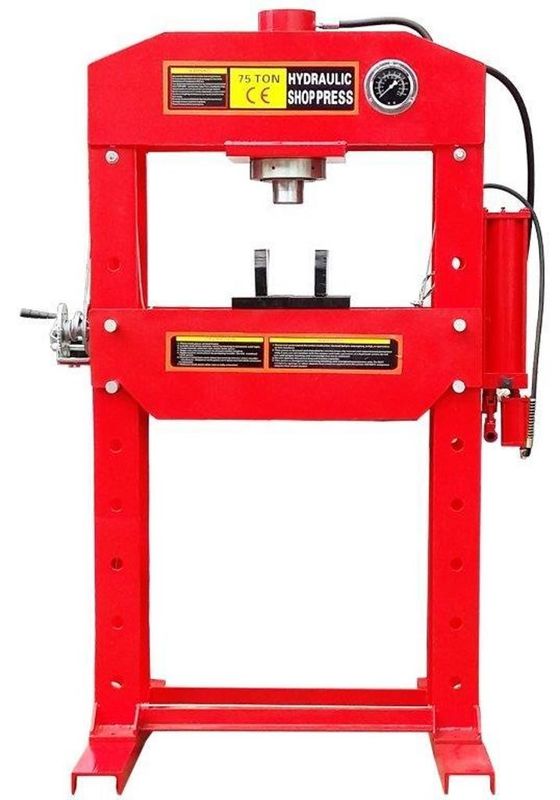

75-Ton Air / Hydraulic WorkShop Press
Features:
The machine is suitable for large, medium and small businesses, factories, mining and auto repair shop, heavy machinery, flanges, alignment, calibration, pressure sleeve, the finale and the pressure bearing assembly operations, bending, demolition work, cutting steel, rope, coupled with mold may punching, blanking, bending, stretching, folding, accompanied by vice, can be tube reaming teeth or fitter job, you can replace the old press-shaped screw hand press operation can be performed row jack test. Hydraulic machine mainly from the rack, countertops, operating cylinder, electric pump or manual pump for the power source.
Specification:
| Model No. | YD06-011 | ||||
| Holding Capacity : | 165,000lb(75,000kg) | ||||
| Min Height -Ram to table: | 2.87"(7.3cm) | ||||
| Max Height -Ram to table: | 31.6"(80.3cm) | ||||
| Ram Stroke: | 10"(25.4cm) | ||||
| Air Inlet: | 1/4"NP | ||||
| Air Pressure: | 110-125PSI | ||||
| G.W. | 1056lb(480kg) | ||||
| N.W. | 1012LBS (460kg) | ||||
| PACKAGE SIZE: | 41.7"x18.9"x79.5" (106x48x202CM) |
