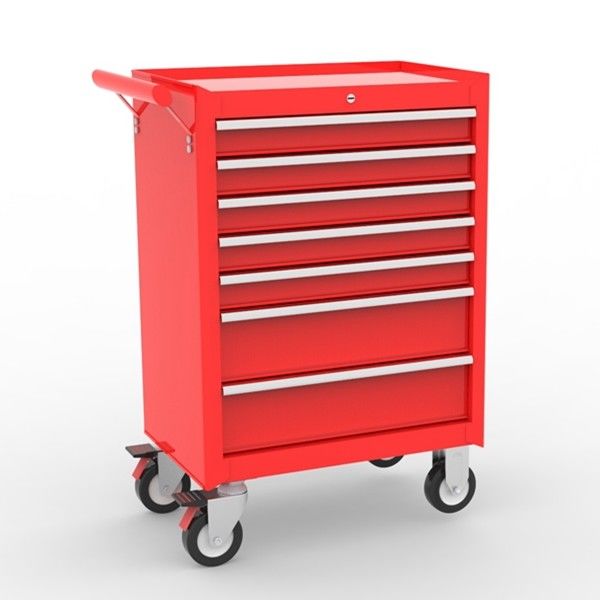

Red 7 Drawers Mobile Workshop Tool Storage Cabinets

Brand Name: YEEDA
Model Number: YD27-007-7D
Place of Origin: Zhejiang , China
Minimum Order Quantity: 50 pcs
Supply Ability: 2000PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box

Product Details


Model: YD27-007-7D Name: Tool Cabinet
Material: 0.8-1.0mm Thickness Iron Size: 688*459*858mm Without Casters
Color: Red,blue, Customized Color Acceptable Surface: Powder Coating
Type: Tool Trolley Package: 1pcs/CTN Corrugated Case
Package Size: 750*530*780mm Place Of Origin: Zhejiang ,China
G.W./N.W.: 65.2/61.7 Kg Usage: Hardware Tools Storage
Casters: 5'' Rubber Wheel
Highlight

7 Drawers Workshop Tool Storage Cabinets

,

Mobile Workshop Trolley

,

Red Color Tool Trolley

Product Description

YD27-007-7D/Red Color Tool Trolley Seven Drawers Mobile Workshop Trolley Tool Cabinet



7 drawers Closable storage areas Painted red Functional handles covering the entire width of the drawer Robust construction with 2 fixed and 2 movable wheels including locking brake.



Features:

  •  With 7 drawers you will be able to sort your tools just how you want them. Each drawer is coated with a non-slip covering so that your tools will stay where you put them.

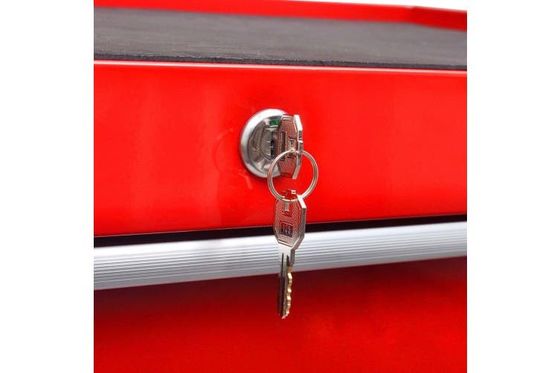

  •  The central locking mechanism locks all drawers in one go which prevents them opening while driving.
  •  The 4 stabile, 0.98 in (25 mm) wide and 2.76 in (70 mm) high wheels (2 swivel and 2 lockable) ensure precise and easy manoeuvrability of the trolley. The robust work surface on the trolley provides enough space to place frequently used tools or materials on top.



Technical Specification:

Sizes&Weight
Overall size:(without casters) 688X459X858mm;27.09"X18.07"X33.78"
Carton size: 750X530X780mm;29.53"X20.87"X36.81"
5 drawers: 580X400X61(75)mm;22.83"X15.75"X2.40"(2.95")
2 drawer: 580x400x141(154)mm;22.83"X15.75"X5.55"(6.06")
N.W.: 61.7Kgs;136.03Lbs
G.W.: 65.2Kgs; 143.74Lbs
Container Oty.: 72pcs/20';144pcs/40';180pcs/40'HQ
Technical Parameters
Steel Thickness 1.0mm for the body and 0.8mm for the drawer
Surface Treatment Powder Coating with Red/any Pantone or RAL color
Drawer Pulls Aluminum (customized logo optional)
Slides 7 Pairs 16"*45mm ball-bearing slides
Drawer Function with self lock and auto return function (optional)
Drawer Liners 2.5mm thick EVA liner inside
Casters One set casters:5"*2" TPR castors, two fixed and two swivel with full brakes
Side Handle Oval-shaped side handle
Lock one sets central flat lock and keys
Packing PE bag + styrofoam + five layers export brown carton;

Red 7 Drawers Mobile  Workshop Tool Storage Cabinets

Product Highlights

YD27-007-7D/Red Color Tool Trolley Seven Drawers Mobile Workshop Trolley Tool Cabinet 7 drawers Closable storage areas Painted red Functional handles covering the entire width of the drawer Robust construction with 2 fixed and 2 movable wheels including locking brake. Features: With 7 drawers you ...
