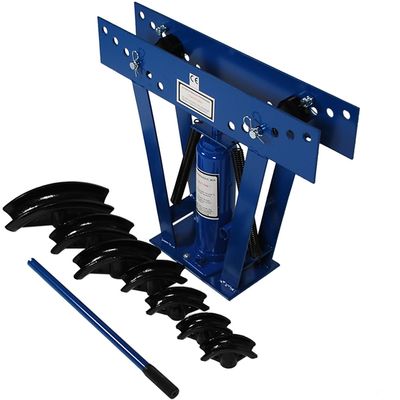

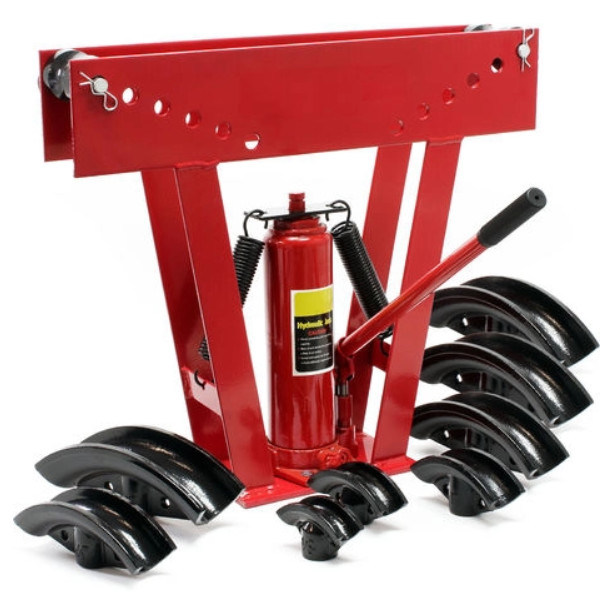

3inch Hydraulic Pipe Bender

No matter if for commercial or private application: this manually operated, hydraulic tube bender is the ideal solution for bringing pipes into the desired form without much effort.

This long-lived tool offers a pressing force of 16 tons and is a versatile item due to the set of 8 differently sized dies made from durable cast iron. These dies enable it to professionally bend tubes of different materials and sizes up to an angle of 90°. The combination of manual operation and hydraulic support minimises the required expenditure of energy while at the same time maximising the control over the angle you wish for the tube to have.

The device is suited for pipes up to a diameter of approximately 7.62 cm and can individually and effortlessly be adjusted to meet your needs thanks to the different dies and settings.

The scope of delivery includes:

- 1 x 16 tons tube bender
- 1 x ½" (approx. 1.27 cm) die
- 1 x ¾" (approx. 1.91 cm) die
- 1 x 1" (approx. 2.54 cm) die
- 1 x 1 ¼" (approx. 3.8 cm) die
- 1 x 1 ½" (approx. 3.81 cm) die
- 1 x 2" (approx. 5.08 cm) die
- 1 x 2 ½" (approx. 6.35 cm) die
- 1 x 3" (approx. 7.62 cm) die

Model No.	YD07-002
Anzahl Packstücke	2
Dimensions	610 x 185 x 560 mm max. tube width 55 mm
Weight in kg	58
Usage / Information / Features	Can be used vertically or horizontally Smooth operation possible Bending Angle up to 90° Bends all common tubes
Accessories	1x 16 tons tube bender 1x ½" (approx. 1.27 cm) die 1x ¾" (approx. 1.91 cm) die 1x 1" (approx. 2.54 cm) die 1x 1 ¼" (approx. 3.8 cm) die 1x 1 ½" (approx. 3.81 cm) die 1x 2" (approx. 5.08 cm) die 1x 2 ½" (approx. 6.35 cm) die 1x 3" (approx. 7.62 cm) die
Tool Type	Pipe Bender
net Weight [kg]	46.5000
Package: Height in mm	195
Package: Length in mm	660
Package: Width in mm	600
