Arm Extenders Flat Roller Hydraulic 2 Ton Jacking Beam
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD08-003E & YD08-003F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | plywood cases |
| Delivery Time: | 45 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500PCS/MONTH |
|
Detail Information |
|||
| Model No.: | YD08-003E & YD08-003F | Name: | 2 Ton Hydraulic Jacking Beam |
|---|---|---|---|
| Material: | Steel | Function: | Hydraulic |
| Type: | One Cylinder Hydraulic Lift | Lifting Capacity: | 2Ton |
| Color: | Normal In Red And Blue, And Can Be Customized | Surface: | Powder Coating |
| MOQ: | 10 Sets | Payment Term: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
| N.W./G.W.: | 98/110kgs | Package: | Plywood Cases |
| High Light: | Hydraulic 2 Ton Jacking Beam,Arm Extenders 2 Ton Jacking Beam,2t Hydraulic Jacking Beam |
||
Product Description

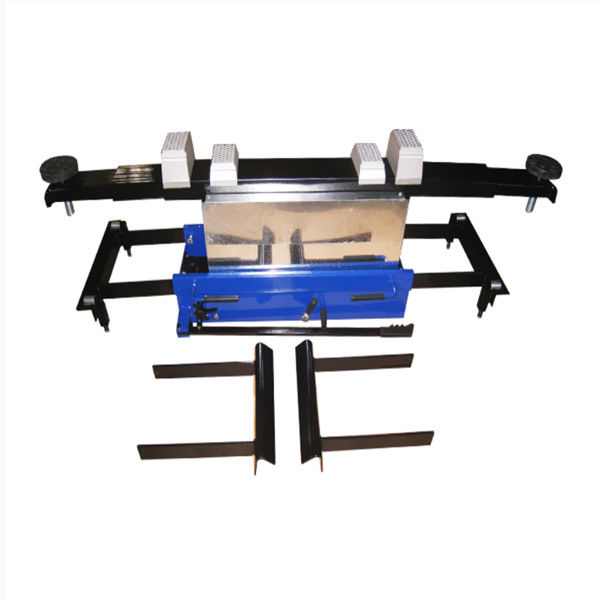

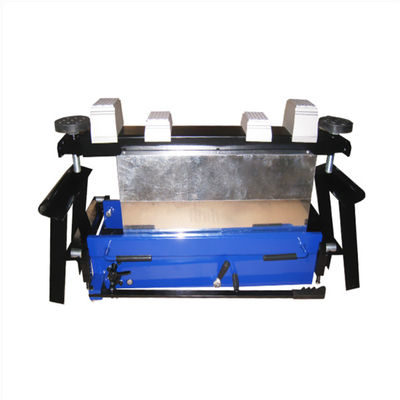

2 Ton and 3 Ton Hydraulic Jacking Beam with Arm Extenders & Flat Roller Supports
Feature:
- Two-stage mechanical safety lock and telescopic finger guards to prevent accidental injury.
- Supplied with two pairs of aluminium support blocks.
- Beam has spring loaded flat arms with roller bearings - when unloaded, these support the weight of the beam, allowing the entire unit to run smoothly along the pit or ramp, but when loaded, they firmly stabilise the unit.
- Optional hook arms supplied.
Technical Specification:
| Model No | Capacity | Support Arm Reach | Beam Lift Range | Load Arm Reach | N.W./G.W. | Package Size | 20ft cntr |
| YD08-003E | 2 ton | 780-1075 mm | 95-300 mm | 850-1600 mm | 98/110 kg | 99x49x35 cm | 130pcs |
| YD08-003F | 3 ton | 780-1075 mm | 95-300 mm | 850-1600 mm | 102/112 kg | 99x49x35 cm | 130pcs |
