Home ProductsEngine Hoist And Stand

Single Pump 2 Ton Folding Shop Crane

China Jiaxing Yeeda International Co.,Ltd certification
China Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

Single Pump 2 Ton Folding Shop Crane

Single Pump 2 Ton Folding Shop Crane
Single Pump 2 Ton Folding Shop Crane Single Pump 2 Ton Folding Shop Crane Single Pump 2 Ton Folding Shop Crane Single Pump 2 Ton Folding Shop Crane Single Pump 2 Ton Folding Shop Crane

Large Image :  Single Pump 2 Ton Folding Shop Crane

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Model Number: YD01-007
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 1000PCS/MONTH
Detailed Product Description
Applicable Industries:: Machinery Repair Shops, Vehicle Repair Model No.: YD01-007
Name: Hydraulic Folding Engine Crane Capacity: 2 Ton
Rated Lifting Moment: 0-2350MM Max. Lifting Height: 2350MM
Color:: Red,blue, Customized Color Acceptable Surface Treatment:: Powder Coating
MOQ: 20pieces Delivery Time: 15 Days After Received Deposit
Packaging: Carton Box Or Crate Payment Term: T/T 30% Deposit, 70% Before Shipment
Test Video: Provided Certification: CE
Warranty Of Core Components: 1 Year After Warranty Service: Video Technical Support, Online Support, Spare Parts
Highlight:

Single Pump 2 Ton Folding Shop Crane

,

Hydraulic 2 Ton Folding Shop Crane

,

Hydraulic 2 Ton Capacity Foldable Shop Crane

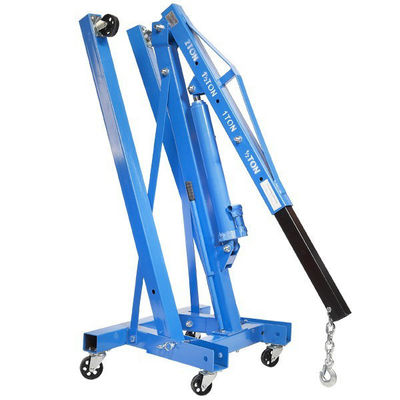

The YD01-007 is a hydraulic workshop crane that lets you effortless lift loads up to 2000kg in weight. Depending on its position, the hoisting crane can lift 500 kg, 1000 kg , 1500 kg or 2000 kg loads.

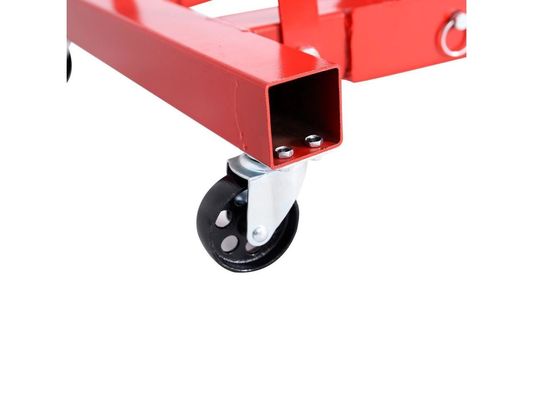

Its 6 castor wheels make the crane easy to move. To store away, simply collapse the crane together and place to one side.

This workshop crane is ideal for lifting loads in auto repair and workshop environments, as well as on assembly lines, farms and at home. The device allows for professional, safe and comfortable work.

2TON FOLDING ENGINE GRANE

Model No.: YD01-007

FEATURES:
Foldable engine crane with single piston hydraulic pump. Four pre-set positions for lifting.

SPECIFICATION:
Capacity ... 2000kg(4400lb)
4 Lifting positions ..500kg(1100lb); 1000kg(2200lb); 1500kg(3300lb); 2000kg(4400lb)
Boom Length ... 102cm-155cm(40"-61")
Full length ... 178cm (70")
Top to Bottom ...146cm(57.5")
Full Extended ... 156cm(61.4")
Weight (approx)... 75kgs/80kgs/92kgs

Weight & Package Dimensions:  For 95kgs
Package 1
G.W. 152LBS (69KGS)
N.W. 147LBS (67KGS)
PACKAGE SIZE: 59"x12.2"x6.7"x (151x31x17CM)
Package 2
G.W. 66LBS (30KGS)
N.W. 61.6LBS (28KGS)
PACKAGE SIZE: 31.5"x22.8"x3.15" (82x58x8CM)



Single Pump 2 Ton Folding Shop Crane 0Single Pump 2 Ton Folding Shop Crane 1
