Multiple Ram Saddle 50T Pneumatic Hydraulic Jack
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD15-001---YD15-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS/MONTH |
|
Detail Information |
|||
| Model No.: | YD15-001----YD15-005 | Name: | Air Hydraulic Bottle Jack Mechanical Tool |
|---|---|---|---|
| Capacity: | 5T,12T,20T,32T,50T | Material: | Steel |
| Type: | Air And Hydraulic | Color: | Red,blue, Customized Color Acceptable |
| MOQ: | 20 Pcs | Deliver Time: | 15 Days |
| Package: | Carton Box | Payment: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
| High Light: | Ram Saddle Pneumatic Hydraulic Jack,50T Pneumatic Hydraulic Jack,Ram Saddle 50 Ton Pneumatic Bottle Jack |
||
Product Description

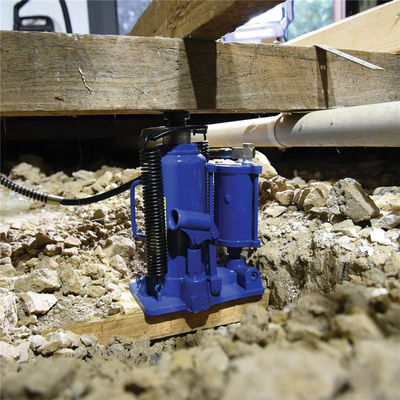

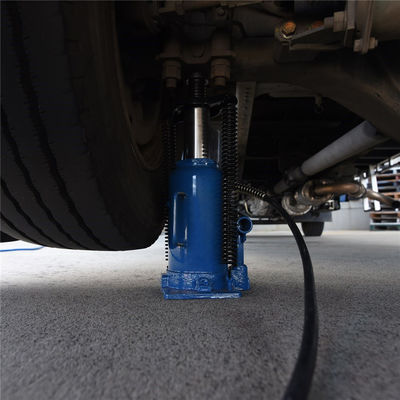

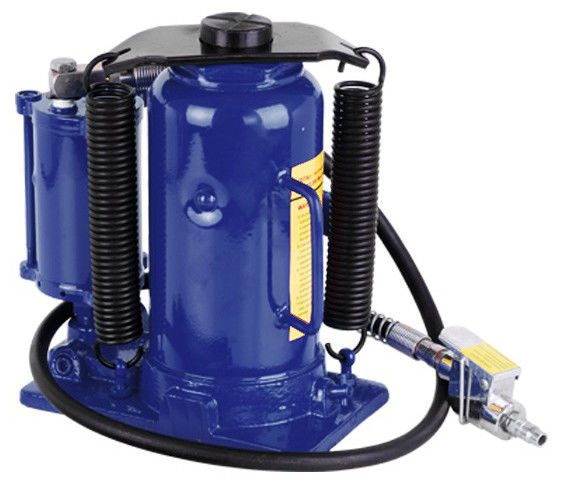

5Ton-50 Ton Pneumatic Hydraulic Bottle Jack With Ram Saddle
Pneumatic Hydraulic car jack is the ideal lifting tool for loads up to 5Ton,12Ton,20ton,32Ton,50Ton.
The device is perfect for use in workshops, garages or any situation that requires a lot of strength.
The car jack operates either hydraulic all by hand or pneumatically using compressed air.
Due to its compact size, it is ideal for portable use as well. On the other hand, its heavy construction ensures stability and reliability. The safety valve protects the jack against overloading. With this car jack, its easy to perform almost any lifting job.
Features:
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Manual or pneumatic operation for versatility
- Fitted with a safety overload valve for extra protection
- 2-piece manual lifting handle connects quickly making storage easier
- Dependable double spring return lowers piston-ram quickly with no load
Technical Specification:
| Model | Capacity | Min.H (mm) | Adjust H (mm) | Lifting H (mm) | Max.H (mm) | N.W (kg) |
| YD15-001 | 5 | 210 | 60 | 160 | 430 | 6 |
| YD15-002 | 12 | 250 | 80 | 150 | 480 | 12 |
| YD15-003 | 20 | 260 | 80 | 150 | 490 | 17 |
| YD15-004 | 32 | 260 | / | 155 | 415 | 21 |
| YD15-005 | 50 | 280 | / | 160 | 440 | 34 |
