Product Details:
Payment & Shipping Terms:
|
| Applicable Industries:: | Machinery Repair Shops, Construction Works, Vehicle Repair | Model No.: | YD01-002 |
|---|---|---|---|
| Name: | Engine Lift Shop Crane | Capacity: | 2000LBS |
| Rated Lifting Moment: | 0-1800MM | Max. Lifting Height: | 1800MM |
| Color:: | Red,blue, Customized Color Acceptable | Surface Treatment:: | Powder Coating |
| MOQ: | 10pieces | Delivery Time: | 15 Days After Received Deposit |
| Packaging: | Carton Box Or Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight: | 2000lbs Hydraulic Jack For Engine Crane,1800MM Hydraulic Jack For Engine Crane,2000lbs Engine Lift Shop Crane |
||
Model No. : YD01-002

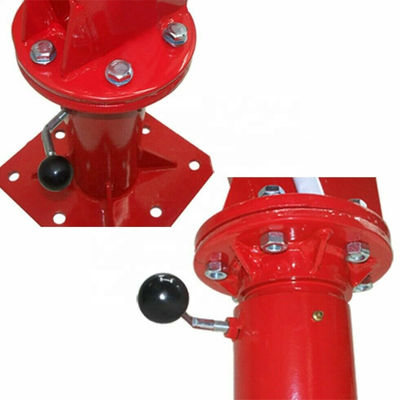

360°STATIONARY ROTATING SWIVEL BOOM
Attributes &Specification:
Product Reference: Truck Accessory

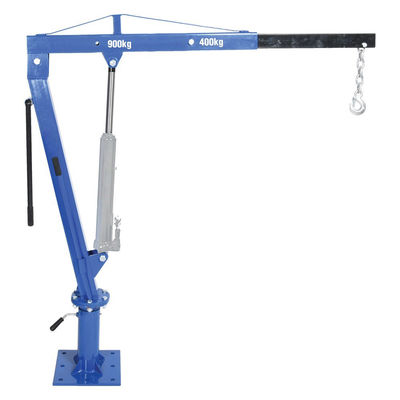

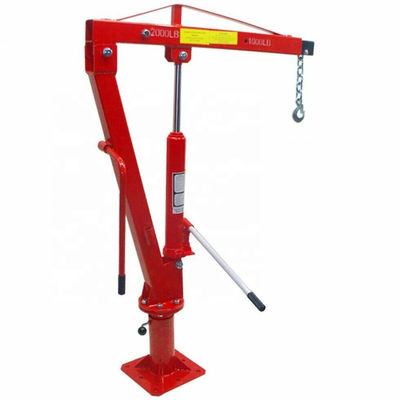

• Type: Pick-Up Truck Mount Crane
• Capacity:900 kg (2000 lbs)
• Min Lifting Radius: 93cm (36.6")
• Max Lifting Radius:130cm (51") •
Max Lifting Height: 180cm(70.8")
• Base Size:27cm x 27cm (10.6" x 10.6")
• Folded Standing Height: 136cm(53.54")
| Weight & Package Dimensions: | |||||
| Package 1 | |||||
| G.W. | 31LBS (14KGS) | ||||
| N.W. | 28.6LBS (13KGS) | ||||
| PACKAGE SIZE: | 13.4"x13"x12.6"x (34x33x32CM) | ||||
| Package 2 | |||||
| G.W. | 74.8LBS (34KGS) | ||||
| N.W. | 72.6LBS (33KGS) | ||||
| PACKAGE SIZE: | 43.7"x9.85"x7.08" (111x25x18CM) |
