Hydraulic 360 Swivel Foldable 1000LBS Engine Hoist And Stand

Product Description

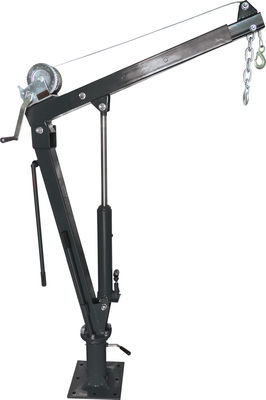

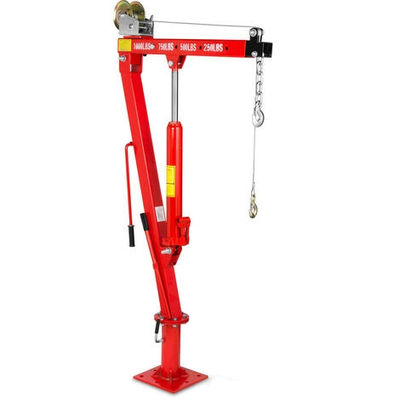

The pick-up crane is a hydraulically operated lifting crane with swivel function and is used for loading and unloading truck beds or for moving loads. With its maximum lifting capacity of 450 kg, you can carry out numerous lifting tasks in a quick and easy way. It is thus an extremely practical aid for nearly all lifting operations up to 0.45 tons - whether at home or on smaller construction sites.

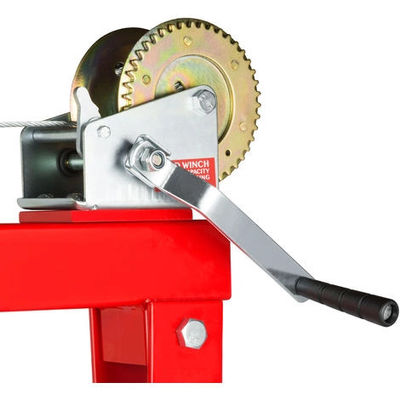

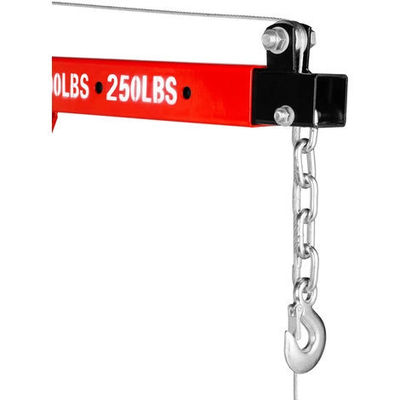

The crane can be easily mounted on almost any solid surface. Mounted on the loading bed of your vehicle or trailer, it can be used wherever your vehicle stands. Depending on the cranes adjustment, the lifting capacity is 110 kg (extended) or max. 450 kg (retracted). Via the steel chain and the loading hook attached to the crane, loads can be picked up directly from the ground and lifted to a height of 2015 mm (hook height). The robust hand winch, as well as the rotary tower supports you with a 360° swiveling range – even at full load.

Model No. : YD01-003

360°STATIONARY ROTATING SWIVEL BOOM

Attributes &Specification:
Product Reference: Truck Accessory

•  Type: Pick-Up Truck Mount Crane
•  Capacity: 450kgs (1000 lbs )

•  Min Lifting Radius: 93cm (36.6")

•  Max Lifting Radius:130cm (51")

•  Max Lifting Height: 202cm(79.3")

•  Base Size: 27cm x 27cm(10.6" x 10.6")
