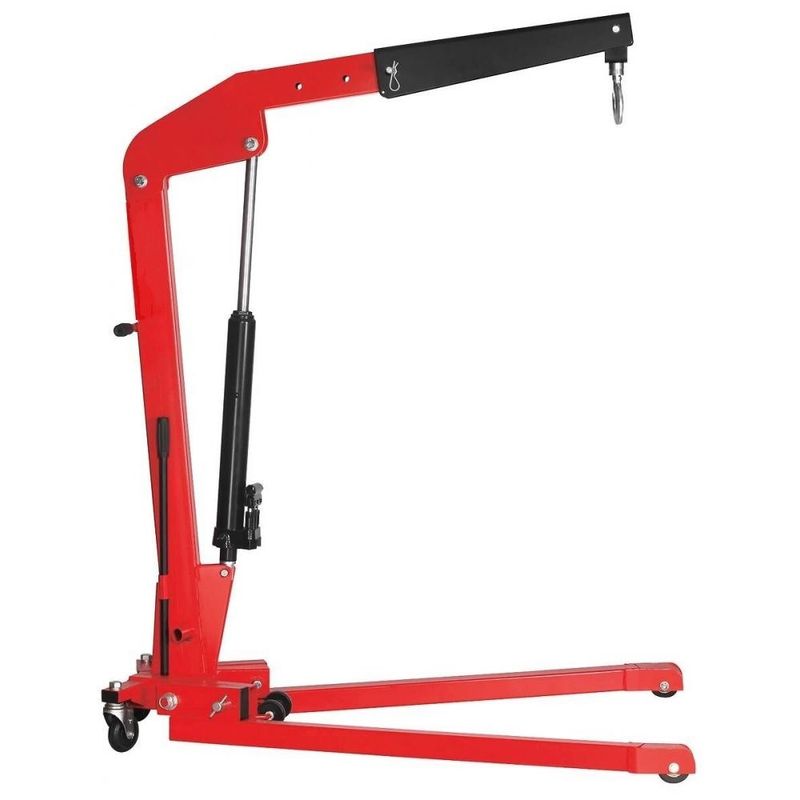

Red Double Pump Folding 1Ton Engine Hoist And Stand

1 Ton Double Pump Folding Engine Crane

 1 Ton Folding Engine Crane with heavy-duty forged hook. Low entry with a height of only 80mm at the wheels. Fast folding for easy storage and transportation. Weighs 80kg and is perfect for professional workshop use. Beam can be set in 3-positions, allowing a lifting capacity 500kgs, 750kg ,1000kg. Features 270° rotating pump handle to aid use where space is limited.

Features

• 1ton Folding Engine Crane with heavy-duty forged hook

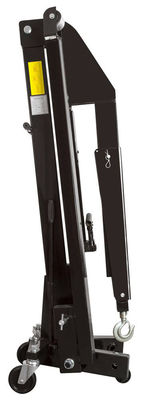

•  Fast folding for easy storage and transportation
•  Low entry with a height of only 80mm at the wheels
•  Weighs 80kg and is perfect for professional workshop use
•  Beam can be set in 3-positions, allowing a lifting capacity from 500kg to 1000kg
•  270° Rotating double pump for quickly lift.

Specification

•  Model No.: YD01-005
•  Height Jib Down: 1665mm
•  Height Legs Folded: 1680mm
•  Height of Frame: 80mm
•  Length Legs Extended: n/a
•  Length of Jib Position 1: 1280mm
•  Length of Jib Position 2: 1430mm
•  Length of Jib Position 3: 1576mm
•  Length of Jib Position 4: n/a
•  Length of Jib Position 5: n/a
•  Length: 1750mm
•  Lifting Capacity in Position 1: 1000kg
•  Lifting Capacity in Position 2: 750kg
•  Lifting Capacity in Position 3: 500kg
•  Lifting Capacity in Position 4: n/a
•  Lifting Capacity in Position 5: n/a
•  Max. Lift Ht at Jib Position 1: 2380mm
•  Max. Lift Ht at Jib Position 2: 2465mm
•  Max. Lift Ht at Jib Position 3: 2500mm
•  Max. Lift Ht at Jib Position 4: n/a
•  Max. Lift Ht at Jib Position 5: n/a
•  Nett Weight: 80kg
•  Rear Width: 435mm
•  Width Front Frame: 1065mm
•  Width Inside Front Frame: 930mm
