Fixed Frame 3 Ton Engine Crane
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD01-008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Packaging Details: | Carton Box or Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD01-008 |
|---|---|---|---|
| Name: | Heavy-Duty Fixed Frame Crane | Capacity: | 3Ton |
| Color:: | Red,blue, Customized Color Acceptable | Surface Treatment:: | Powder Coating |
| MOQ: | 20pieces | Delivery Time: | 25 Days After Received Deposit |
| Packaging: | Carton Box Or Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight: | Extendable 3 Ton Engine Crane,Fixed Frame 3 Ton Engine Crane,1200mm 3 Ton Shop Crane |
||
Product Description

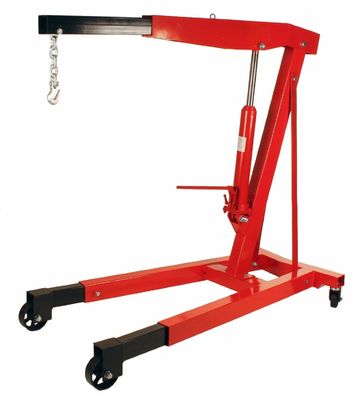

3 Ton( 6000 LB) Heavy Duty Engine Hoist Shop Crane
Net Weighs 120kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
Features
- Lifts 3000kg at 1200mm jib extension
- Heavy-duty castors
- Perfect for heavy commercial, industrial and workshop use
- Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions

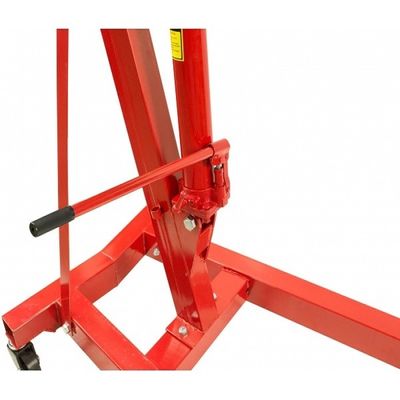

- Pump access from side for safe handling of heavy loads
- Delivered in knock-down form for reduced freight cost
- Some self assembly required
Specification
- Model No.: YD01-008

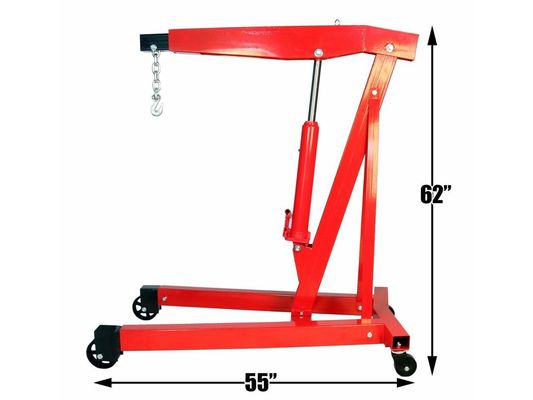

- Height Jib Down: 1610mm
- Height Legs Folded: n/a
- Height of Frame: 195mm
- Length Legs Extended: n/a

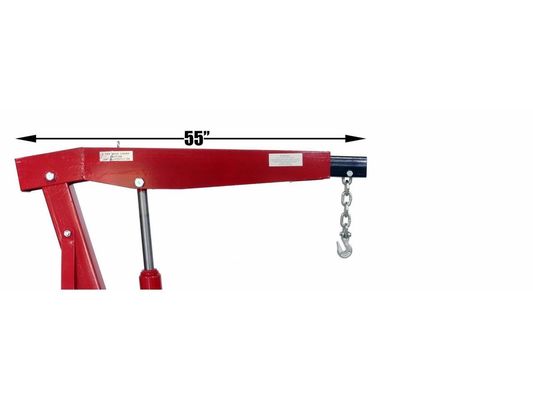

- Length of Jib Position 1: 1200mm
- Length of Jib Position 2: 1400mm
- Length of Jib Position 3: 1610mm
- Length of Jib Position 4: 1820mm
- Length of Jib Position 5: n/a
- Length: 1940mm*

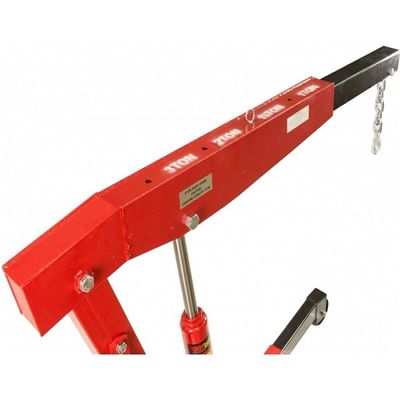

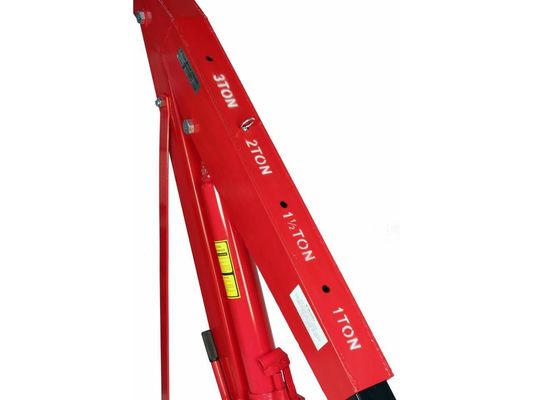

- Lifting Capacity in Position 1: 3000kg
- Lifting Capacity in Position 2: 2000kg
- Lifting Capacity in Position 3: 1500kg
- Lifting Capacity in Position 4: 1000kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 1880mm
- Max. Lift Ht at Jib Position 2: 1970mm
- Max. Lift Ht at Jib Position 3: 2010mm
- Max. Lift Ht at Jib Position 4: 2220mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 155kg
- Note: *Legs Extended
- Rear Width: 780mm
- Width Front Frame: 855mm*
- Width Inside Front Frame: 700mm*
| Weight & Package Dimensions: | |||||
| Package 1 | |||||
| G.W. | 77LBS (35KGS) | ||||
| N.W. | 72.6LBS (33KGS) | ||||
| PACKAGE SIZE: | 5"x33.8"x4.3"x (13x86x11CM) | ||||
| Package 2 | |||||
| G.W. | 162LBS (74KGS) | ||||
| N.W. | 158LBS (72KGS) | ||||
| PACKAGE SIZE: | 57.8"x11.8"x7.8" (147x30x20CM) | ||||
| Package 3 | |||||
| G.W. | 35LBS (16KGS) | ||||
| N.W. | 33LBS (15KGS) | ||||
| PACKAGE SIZE: | 27.5"x7"x6"x (70x18x15CM) |
