2000LB Powder Coating rotating engine and gearbox support stand
Product Details:
Place of Origin: | Zhejiang , China |
Brand Name: | YEEDA |
Certification: | CE |
Model Number: | YD04-005 |
Payment & Shipping Terms:
Minimum Order Quantity: | 20 pcs |
---|---|
Packaging Details: | Carton Box |
Delivery Time: | 30-45DAYS |
Payment Terms: | T/T |
Supply Ability: | 500PCS/MONTH |
Detail Information |
|||
Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD04-005 |
---|---|---|---|
Name: | 2000lbs Blue Engine Stand With Gearbox | Capacity: | 2000LBS |
Color:: | Red,blue, Customized Color Acceptable | Surface Treatment:: | Powder Coating |
MOQ: | 20pieces | Delivery Time: | 15 Days After Received Deposit |
Packaging: | Carton Box Or Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
Test Video: | Provided | Certification: | CE |
Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
High Light: | 2000lbs Engine Hoist And Stand,Gearbox Engine Hoist And Stand,2000lbs Blue Engine Stand |
Product Description

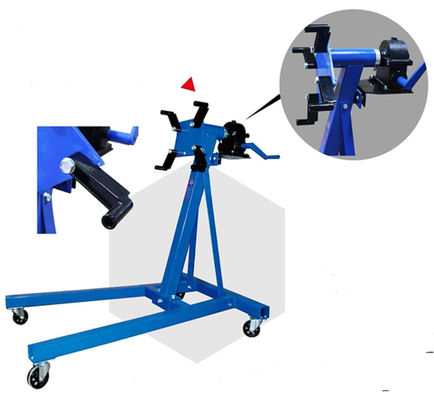

2000lbs Blue Engine Stand With Gearbox
Features:
- Constructed of high-grade steel and built to "Made for the product" standards for quality and durability
- 360° swiveling and gear ratio head allows easy rotation for obtaining the perfect angle position.
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and prevent rust.
- Paint is oil, grease and dirt-resistant for easy cleanup.
- Heavy-gauge tubular construction with industrial-grade steel bearing castors for easy maneuverability.
- Mounting head has four adjustable arms with bolt holes to accommodate various load sizes.
Specifications | ||
Model No | YD04-005 | |
Capacity | 2000 lb | |
Center Height | 1050 mm | |
Gearbox Ratio | 40:1 | |
Product Size | 1190x850x1230 mm | |
Castor Diameter | 90 mm | |
Distance between legs | 680 mm | |
Lower steel tubing | 60 x 60 mm | |
Column tubing | 70 x 70 mm | |
N.W.:/G.W.: | 1# 16/17 kg / 2# 38/45 kg | |
Package Size | 1# 119.5x86x7 cm 2# 112x27x23 cm | |
20'ft cntr | 180pcs |
