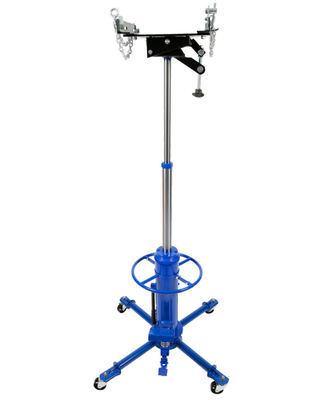

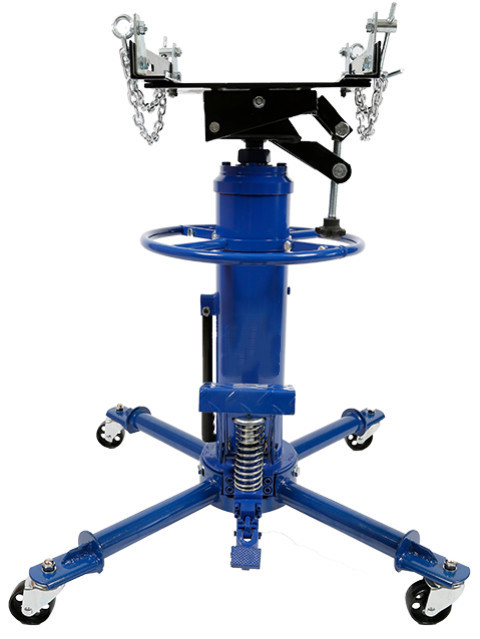

Hydraulic Car Auto Lift 0.5T 46.5CM 2 Stage Transmission Jack
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD05-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Packaging Details: | Wood Box |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD05-003 |
|---|---|---|---|
| Name: | 0.5T Two Stage Hydraulic Transmission Jack | Capacity: | 500KGS |
| Color: | Red,blue, Customized Color Acceptable | Surface Treatment: | Powder Coating |
| MOQ: | 20pieces | Delivery Time: | 15 Days After Received Deposit |
| Packaging: | Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| High Light: | 0.5T 2 Stage Transmission Jack,46.5CM 2 Stage Transmission Jack,Hydraulic 0.5 Ton Transmission Jack |
||
Product Description
Model No.:YD05-003
0.5T Double Ram Hydraulic Transmission Jack With adaptor
Mainly use for raising and lowering transmissions and gearboxes in both front and rear wheel drive vehicles.Also can be use for raising and lowering petrol and fuel tanks, exhausts full and partial systems, rear axles, trans axles , subframes, steering racks and suspension components.
The extra wide base gives the jack a high degree of stability.
Suitable for cars, light commercial and small truck.
360° swivel top head, 4 swivel castors and double handle make this jack very easy to move to exact position you need

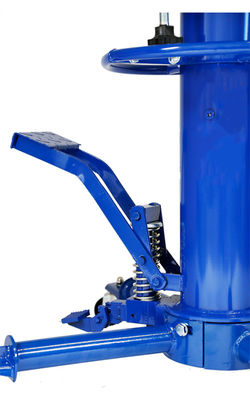

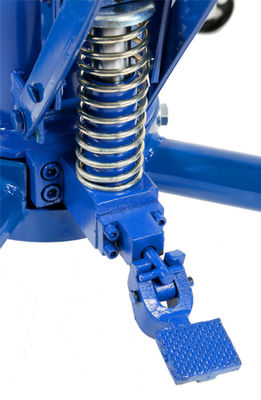

The foot pedal pump and hands release valve means you can position the transmission to exact positions you require
The extra wide base gives the jack a high degree of stability.
Specification:
| Model No. | YD05-003 | ||||
| Capacity : | 1100LBS (500KGS) | ||||
| Min Height: | 34"(87CM ) | ||||
| Max Height: | 70.86"(180CM ) | ||||
| 1st stage stroke: | 18.3"(46.5CM ) | ||||
| 2nd stage stroke: | 18.3"(46.5CM ) | ||||
| G.W. | 189LBS (86KGS) | ||||
| N.W. | 176LBS (80KGS) | ||||
| PACKAGE SIZE: | 21.65"x14"x33.5" (55x36x85CM) |
