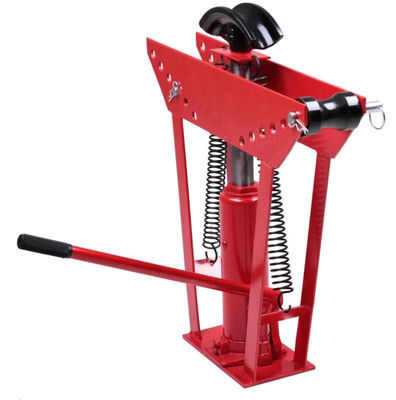

Heavy Duty 12Ton 6 Dies Hand Hydraulic Tube Bender
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD07-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Packaging Details: | Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD07-001 |
|---|---|---|---|
| Name: | Pipe Bender Hydraulic 12t Pipe Bender Bending Machine | Bending Radius (mm): | 0.1 - 0.5 |
| Max. Bending Angle: | 90° | Color: | Red,blue, Customized Color Acceptable |
| Surface Treatment: | Powder Coating | MOQ: | 20 PCS |
| Delivery Time: | 20 Days After Received Deposit | Packaging: | Crate |
| Payment Term: | T/T 30% Deposit, 70% Before Shipment | Test Video: | Provided |
| Certification: | CE | Warranty Of Core Components: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | ||
| Highlight: | 12Ton Hand Hydraulic Tube Bender,6 Dies Hand Hydraulic Tube Bender,6 Dies Hydraulic 12 Ton Pipe Bender |
||
Product Description
Feature:
With the high hydraulic pipe bending machine, pipes of all materials can be bent quickly and accurately up to 90 °. The lever allows maximum pressure to be achieved with minimal effort. Thus, the bending machine is universally applicable in various fields such as heating and piping, vehicle repair, crash protection, railings, attachments, etc.

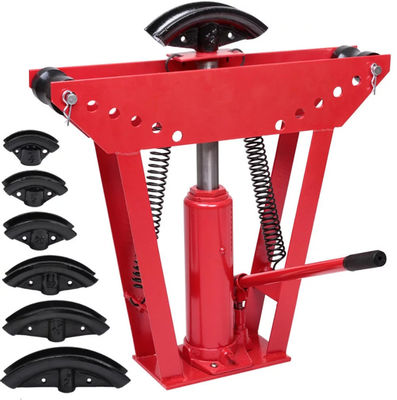

The various push-to-press files, included in the delivery, enable you to bend the various thicknesses at different angles. The machine is also suitable for horizontal as well as vertical use.
The various push-to-press files, included in the delivery, enable you to bend the various thicknesses at different angles. The machine is also suitable for horizontal as well as vertical use.
| Model No. | YD07-001 |

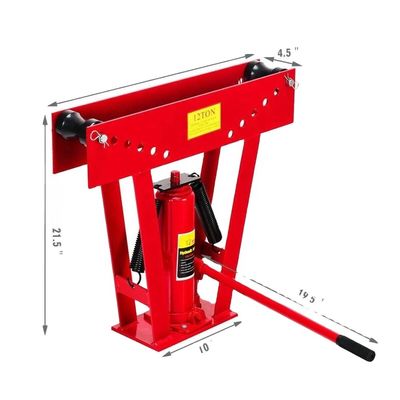

| Dimensions | 610 x 540 x 160 mm |
| Weight in kg | 30 |
|
Usage / Information / Features |
DN15 Ø 21,3mm (1/2") DN20 Ø 26,9mm (3/4") DN25 Ø 33,7mm (1") DN32 Ø 42,4mm (1 1/4") DN40 Ø 48,3mm (1 1/2") DN50 Ø 60,3mm (2") Pressing pressure up to 12 tons Pressings with 21,3mm - 60,3mm For vertical and horizontal use |
| Tool Type | Pipe Bender |
| Net Weight [kg] | 30 |
| Package Size | 630 x 560 x 170mm |
