• CE 20 Ton 8 Dies Pipe Bending Dies For Hydraulic Press
CE 20 Ton 8 Dies Pipe Bending Dies For Hydraulic Press

CE 20 Ton 8 Dies Pipe Bending Dies For Hydraulic Press

Product Details:

Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Model Number: YD07-003

Payment & Shipping Terms:

Minimum Order Quantity: 20 PCS
Packaging Details: Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Get Best Price Contact Now

Detail Information

Applicable Industries: Machinery Repair Shops, Vehicle Repair Model No.: YD07-003
Name: Pipe Bender Hydraulic 16TPipe Bender Bending Machine Bending Radius (mm): 0.1 - 0.5
Max. Bending Angle: 90° Color: Red,blue, Customized Color Acceptable
Surface Treatment: Powder Coating MOQ: 20 PCS
Delivery Time: 20 Days After Received Deposit Packaging: Crate
Payment Term: T/T 30% Deposit, 70% Before Shipment Test Video: Provided
Certification: CE Warranty Of Core Components: 1 Year
After Warranty Service: Video Technical Support, Online Support, Spare Parts
High Light:

20Ton Pipe Bending Dies For Hydraulic Press


8 Dies Pipe Bending Dies For Hydraulic Press


20t Hydraulic Tube Bending Machine

Product Description

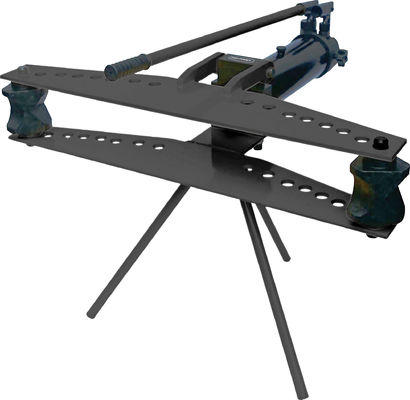

No matter if for commercial or private application: this manually operated, hydraulic tube bender is the ideal solution for bringing pipes into the desired form without much effort.

This long-lived tool offers a pressing force of 16 tons and is a versatile item due to the set of 8 differently sized dies made from durable cast iron. These dies enable it to professionally bend tubes of different materials and sizes up to an angle of 90°. The combination of manual operation and hydraulic support minimises the required expenditure of energy while at the same time maximising the control over the angle you wish for the tube to have.

The device is suited for pipes up to a diameter of approximately 7.62 cm and can individually and effortlessly be adjusted to meet your needs thanks to the different dies and settings.

The scope of delivery includes:

- 1 x 20 tons tube bender
- 1 x ½" (approx. 1.27 cm) die
- 1 x ¾" (approx. 1.91 cm) die
- 1 x 1" (approx. 2.54 cm) die
- 1 x 1 ¼" (approx. 3.8 cm) die
- 1 x 1 ½" (approx. 3.81 cm) die
- 1 x 2" (approx. 5.08 cm) die
- 1 x 2 ½" (approx. 6.35 cm) die
- 1 x 3" (approx. 7.62 cm) die
YD07-003 --Hydraulic 20 Ton Pipe Bender including 8 Dies with 1/2" to 3" Diameter
Capacity (tons) 20 tons
Max. Bending Capacity (in.) 3 in.
Max. Bending Thickness (in.) .2 in.
Max. Bending Radius (in.) 90 in.
Min. Bending Radius (in.) 0 in.
Die Sizes (in.) 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 and 3 in.
Jack stroke (in.) 11-3/8 in.
Material Steel
Packaging (qty) 1 qty


Weight & Package Dimensions

  •  Weight (lbs) 221.4
  •  Package (L x W x H) 37.0 x 15.5 x 8.0 in.
