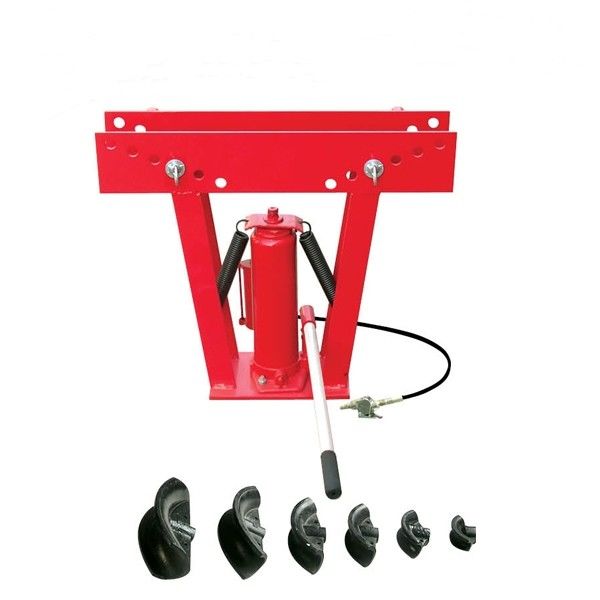

Manual 6 Dies 12Ton Heavy Duty Hydraulic Pipe Bender

Model No.: YD07-004--Shop air / hydraulic pipe bender with a rugged high-grade steel frame for bending or forming steel pipe or tubing easily. Minimum wall thickness of 3mm is required otherwise kinking can occur. NOT suitable for automotive exhaust style tubing. Can be used vertically or horizontally. Unit and formers supplied in separate packaging.

Features:

•  High grade steel frame, painted enamel finish for corrosion resistance
•  6 position adjustable top roller guides
•  Heavy duty dual return springs for easy returns and resets
•  6 extra deep formers included, individually size stamped (metric and imperial)
•  Shop air over hydraulic ram for ergonomic 1-man operation

Specifications:

•  Former sizes (packaged separately): 1/2” (13mm), 3/4” (19mm),1” (25mm), 11/4” (32mm), 11/2” (40mm), 2” (50mm)
•  Packaged Dimensions (formers) (L x W x H):350 x 300 x 120mm
•  Weight (net)(formers): 12kg
•  Ram Capacity: 12,000 KG
•  Working air pressure: 80 – 120 PSI
•  Maximum Tubing Diameter: 2” (50mm)
•  Packaged Dimensions (unit) (L x W x H): 680 x 540 x 260mm
•  Weight (net)(unit): 36kg
