2 stage 16 Ton 8 Dies 3" Air Over Hydraulic Pipe Bender
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD07-006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Packaging Details: | Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD07-006 |
|---|---|---|---|
| Name: | Pipe Bender Hydraulic 16TPipe Bender Bending Machine | Bending Radius (mm): | 0.1 - 0.5 |
| Max. Bending Angle: | 90° | Color: | Red,blue, Customized Color Acceptable |
| Surface Treatment: | Powder Coating | MOQ: | 50 PCS |
| Delivery Time: | 20 Days After Received Deposit | Packaging: | Crate |
| Payment Term: | T/T 30% Deposit, 70% Before Shipment | Test Video: | Provided |
| Certification: | CE | Warranty Of Core Components: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | ||
| High Light: | 8 Dies Air Over Hydraulic Pipe Bender,16 Ton Air Over Hydraulic Pipe Bender,8 Dies Hydraulic 16 Ton Pipe Bender |
||
Product Description

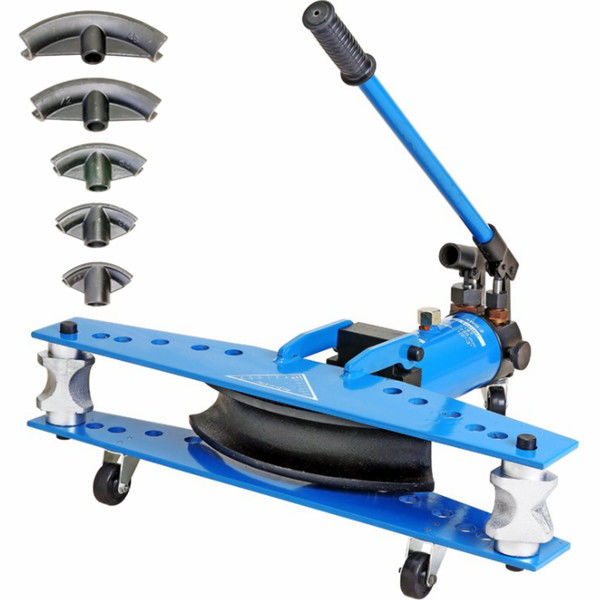

This hydraulic pipe bending machine is suitable for different types of round pipes
Operated manually by 2-stage hydraulic hand pump.
This machine enables exact pipe bending of round pipes.
This tool stands on 3 swivel castors
Technical data:

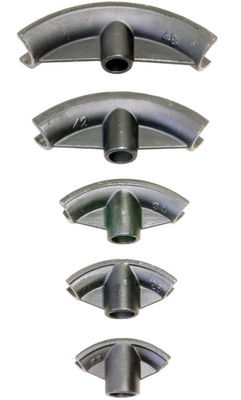

This tool is delivered with the following adaptors for different pipe diameters
1/2" - 3/4" - 1" - 1 1/4" - 1 1/2" - 2"
Pipe wall thickness: from 2.5 mm - 4.5 mm
Bending area: up to 90°
Hydraulic rod pressure force: 16T
Hydraulic rod stroke: 240 mm
Dimensions (length x width x height): 570 mm x 690 mm x 250 mm
2 universal counter bearings with quick adjustment
2-stages Hydraulic pump: one of the mountings for hand pump lever is for fast feed, the other one for slow feed at higher pressure. So you can reach the workpiece very fast with few strokes.
Note:
1/2" equals a pipe diameter of approx. 22 mm
3/4" equals a pipe diameter of approx. 28 mm
1" equals a pipe diameter of approx. 34 mm
1 1/4" equals a pipe diameter of approx. 42 mm
1 1/2" equals a pipe diameter of approx. 48 mm
2" equals a pipe diameter of approx. 60 mm
Weight: 42 kg
Shipping weight: 49 kg
