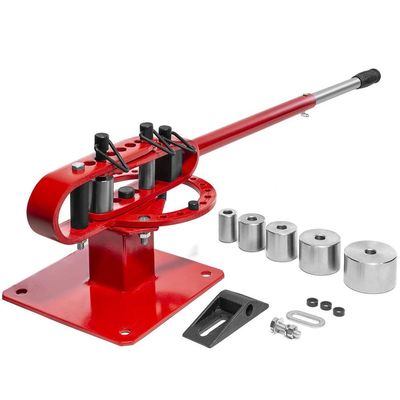

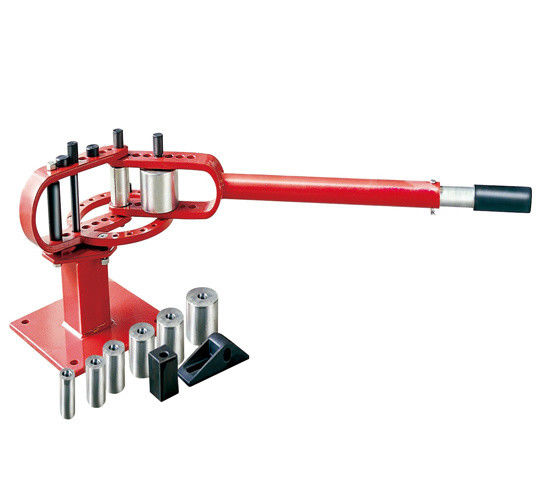

7 Dies Manually Mounted Steel Air Hydraulic Pipe Bender
Product Details
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, | Model No.: | YD07-008 |
|---|---|---|---|
| Name: | Pipe Bender Hydraulic | Max. Bending Angle: | 200° |
| Color: | Red,blue, Customized Color Acceptable | Surface Treatment: | Powder Coating |
| MOQ: | 50 PCS | Delivery Time: | 15 Days After Received Deposit |
| Packaging: | Carton Box | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight |
Manually Air Hydraulic Pipe Bender,7 Dies Air Hydraulic Pipe Bender,7 Dies Manual Hydraulic Pipe Bending Machine |
||
Product Description
- The 7 included dies and attachments allow you to make unlimited designs.
- It may be used to create sing letters, anchor bolts, U bolts, pipe clamps, handles and more.
- It is light enough to be used as a portable bender on trucks or trailers.
- Right angle attachment included.
- Pre drilled holes allows for easy mounting to bench or tables tops.
- Manual with assembly and operating instructions included.
- Mounting holes: (4) 5/8"
- Max. width of stock: 1-15/16".
- Max stock thickness: 5/16"
- Round die sizes: 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3".

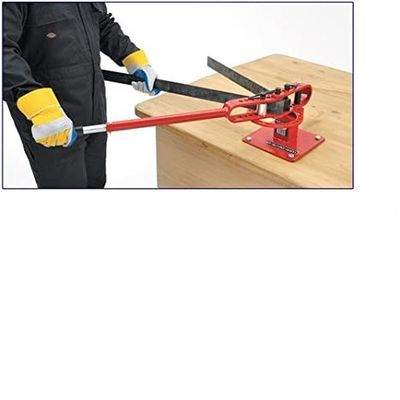

This versatile pipe bender can be used for the precise bending of round pipes, square rods as well as strip steel, making it ideal for daily workshop use. This bender is sturdily constructed. The bender can bend pieces of up to 6 mm thick and 50 mm wide. Supplied with 7 different die rollers, the bender can make unlimited designs, such as U bolts, pipe clamps, handles and more. The extendable lever will increase the pressure you apply to the metal. Thanks to its four pre-drilled holes, the bender can be easily bolted to the floor. It is compact in size and light in weight, suitable for mobile use.
| Model No. | YD07-008 | ||
| Mild Steel Capacity: | 5/16" &1-1/4" or 1/4"&2" | ||
| DIE.Size: | 1", 1-1/4", 1-1/2" | ||
| 1-3/4" ,2" ,2-1/2" , 3" | |||
| N.W. / G.W.: | 17.5 / 18.5 KGS | ||
| Package Size: | 700 x 280 x 130 MM | ||
