Scissor Lift 1100LBS Hydraulic Motorcycle Lift Bench
Product Details:
Place of Origin: | Zhejiang , China |
Brand Name: | YEEDA |
Certification: | CE |
Model Number: | YD08-023 |
Payment & Shipping Terms:
Minimum Order Quantity: | 30 |
---|---|
Packaging Details: | plywood cases |
Delivery Time: | 50 DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 500PCS/MONTH |
Detail Information |
|||
Model No.: | YD08-023 | Name: | Motorcycle & ATV Scissor Lift 1100LBS(500kg) Capacity Hydraulic |
---|---|---|---|
Material: | Steel | Function: | Hydraulic |
Type: | One Cylinder Hydraulic Lift | Lifting Capacity: | 500 KGS |
Color: | Normal In Red And Blue, And Can Be Customized | Surface: | Powder Coating |
MOQ: | 30PCS | Payment Term: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
N.W./G.W.: | 23/25kgs | Package: | Carton Box |
High Light: | 1100LBS Motorcycle Lift Bench,Scissor Lift Motorcycle Lift Bench,500kg Center Jack Scissor Lift Stand |
Product Description
Hydraulic Motorcycle & ATV Scissor Lift 1100LBS(500kg) Capacity
- Steel construction with bottle jack style hydraulic unit. Lifting arms suitable for bikes with cradle frames, quads, all terrain vehicles, trikes and vehicle transmissions. Features two mechanical safety locks, lockable in four positions, for supporting the motorcycle over extended periods. Mounted on two fixed wheels and two double castors for manoeuvrability. Unlike most other motorcycle lifts, it is possible to remove both wheels, front forks, steering assembly, rear swing arm and suspension units as well as the engine. Can be used anywhere with a hard level floor thus making this suitable for mobile motorcycle mechanics. Ideal for use with the Sealey range of wheel chocks to assist supporting the motorcycle, whilst adjusting the frame supports and securing to the lift.
- Steel construction scissor with bottle jack style power unit
- Four locking positions for supporting the motorcycle over extended periods on the lift
- With this lift it is possible to remove both wheels, front forks, steering assembly, rear swing arm and suspension units as well as the engine
- Benefits from being portable so can be used anywhere with a hard level floor thus making this suitable for mobile motorcycle mechanics
- Ideal for use with the Sealey range of wheel chocks to assist supporting the motorcycle, whilst adjusting the frame supports and securing to the lift
- Min /Max Lift Height : 110/400mm
- Maximum Frame Dimensions (W x D): 680 x 360mm
Feature:
- Solid bike lift for repair and maintenance work
- Save lifting of bikes with double-tube frame and quads
- Ideal for comfortable and safe working at the front and real wheel
- Extremely big contact surface170"X89"(68X36cm ) for firm stand

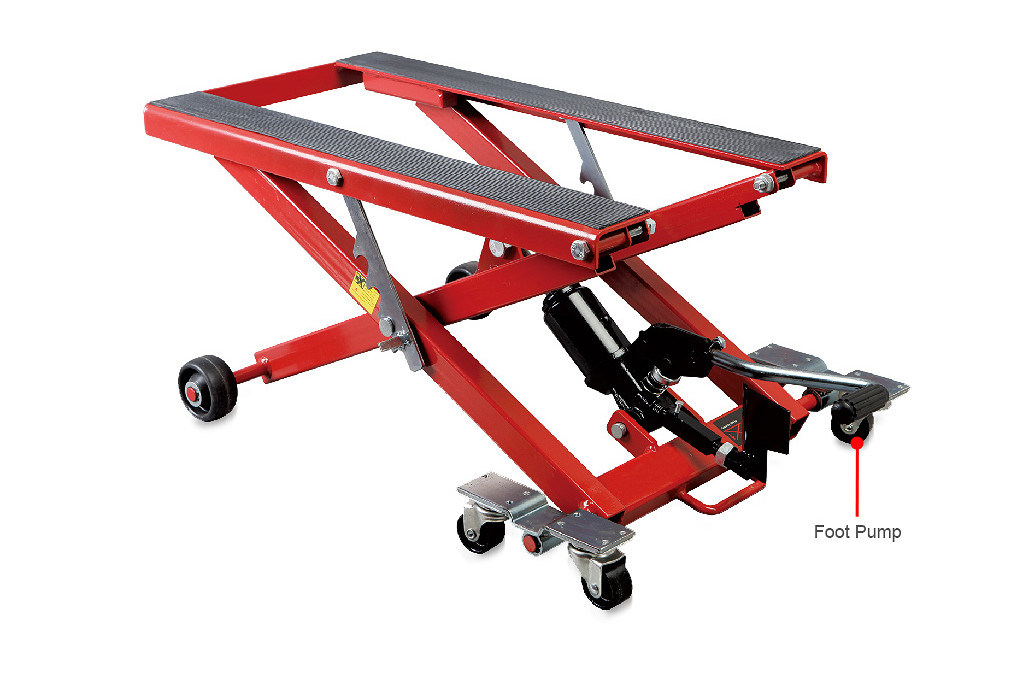

- Hydraulic Pump pedal for safety raise and lower with hand valve
Technical Specification:
Model No. | YD08-023 | ||||
Capacity : | 1100LBS (500KGS) | ||||
QTY | 1PC/CTN | ||||
G.W. | 55LBS (25KGS) | ||||
N.W. | 50.6LBS (23KGS) | ||||
Lift Height: | 4.3"-15.7"( 11- 40CM) | ||||
PACKAGE SIZE: | 30.7"x20.8"x5" (78x53x12.5CM) |
