Steel Hydraulic Cylinder 500 Kg Sky Lift Motorcycle Lift
Product Details:
Place of Origin: | Zhejiang , China |
Brand Name: | YEEDA |
Certification: | CE |
Model Number: | YD08-024 |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 pcs |
---|---|
Packaging Details: | plywood cases |
Delivery Time: | 50 DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 500PCS/MONTH |
Detail Information |
|||
Model No.: | YD08-024 | Name: | Motorcycle Sky Lift With Hydraulic Cylinder |
---|---|---|---|
Material: | Steel | Function: | Hydraulic |
Type: | One Cylinder Hydraulic Lift | Lifting Capacity: | 500 KGS |
Color: | Normal In Red And Blue, And Can Be Customized | Surface: | Powder Coating |
MOQ: | 50PCS | Payment Term: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
N.W./G.W.: | 48/60kgs | Package: | Plywood Cases |
High Light: | 500 Kg Hydraulic Sky Lift Motorcycle Lift,Hydraulic Sky Lift Motorcycle Lift,500 Kg Skylift Motorcycle Lift |
Product Description

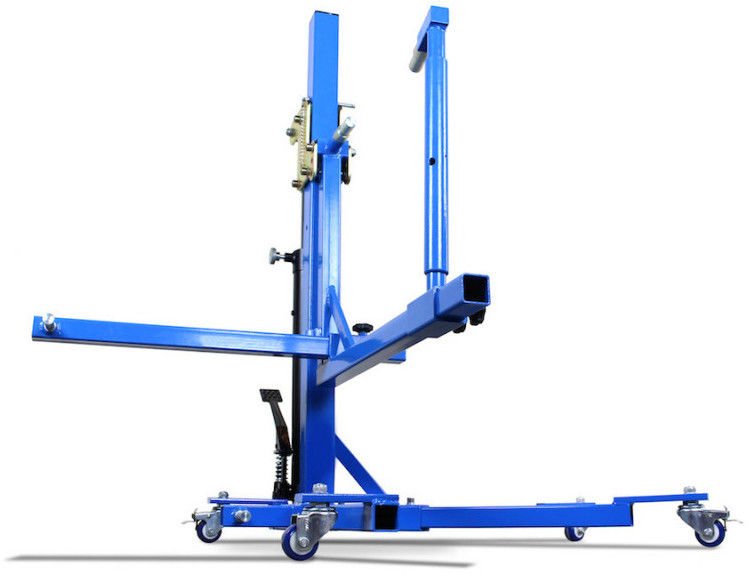

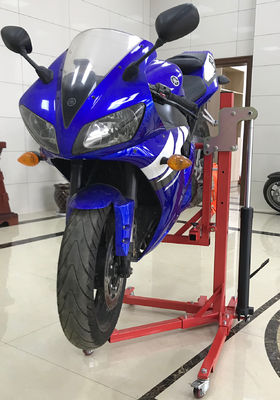

Motorcycle Sky Lift With Hydraulic Cylinder For Motorbike repair
Feature:
- 3T Hydraulic Ram •Lifts motorcycles of weight up to 500kg
- Lifts bike up to height of 450mm
- The 3 connecting pins 18mm or 23mm or 25mm ought to be inserted into the frame holes to lift the bike
- 1 PC in a"L"Style Wooden case , then, two Wooden cases tied together to save the container room (125x54x98cm)
Technical Specification:
Model No. | YD08-024 | ||||
Capacity : | 1100LBS (500KGS) | ||||
Hydraulic Ram Capacity | 6,600LB(3,000kg) | ||||
Lifting Height | 17.7"(45CM) | ||||
G.W. | 132LBS (60KGS) | ||||
N.W. | 105.6LBS (48KGS) | ||||
PACKAGE SIZE (2PCS): | 49.2"x21.2"x38.6" (125x54x98CM) |
