Hydraulic Car Ramp Adjustable 2T Auto Wheel Dollies
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD10-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Sets |
|---|---|
| Packaging Details: | plywood cases |
| Delivery Time: | 50 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000PCS/MONTH |
|
Detail Information |
|||
| Model No.: | YD10-001 | Name: | 2T Heavy Duty Hydraulic Car Ramp |
|---|---|---|---|
| Material: | Steel | Function: | Hydraulic |
| Type: | One Cylinder Hydraulic Lift | Lifting Capacity: | 2T |
| Color: | Normal In Red And Blue, And Can Be Customized | Surface: | Powder Coating |
| MOQ: | 50 Sets | Payment Term: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
| N.W./G.W.: | 22/24kgs | Package: | Carton Box |
| High Light: | Car Ramps Auto Wheel Dollies,2T Auto Wheel Dollies,2t Car Ramps With Hydraulic Lift |
||
Product Description

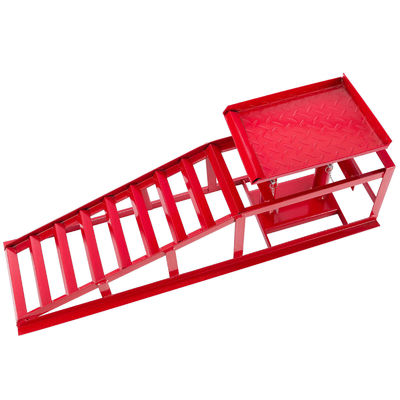

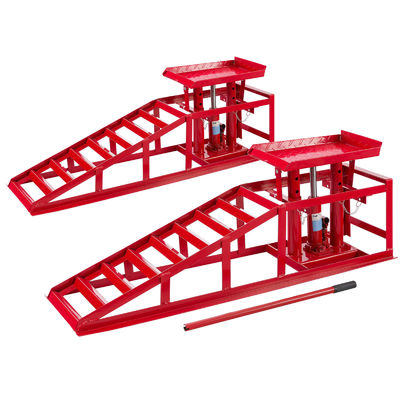

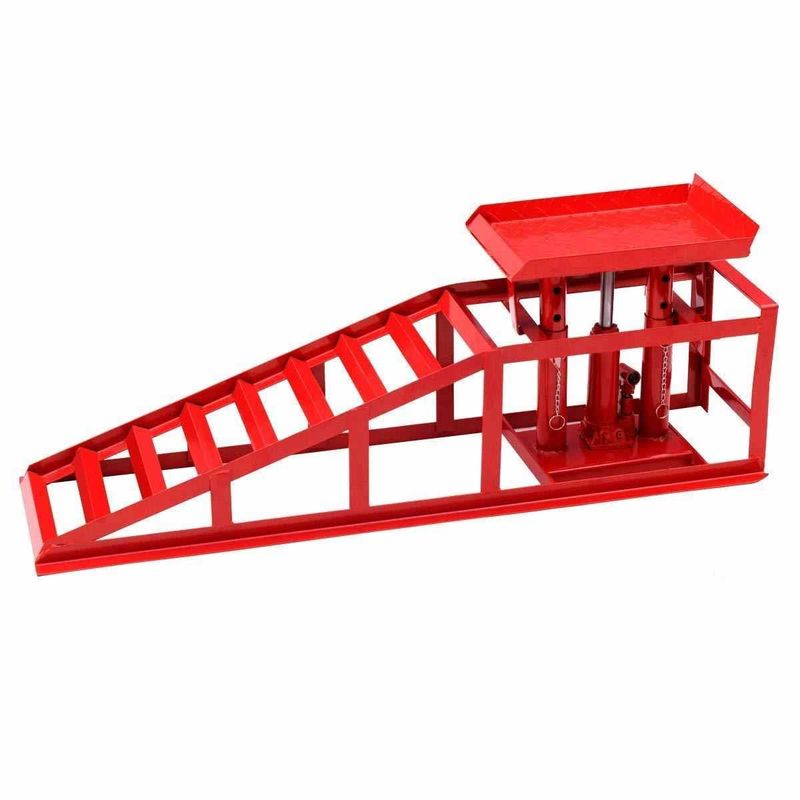

2Ton Hydraulic Car Ramp

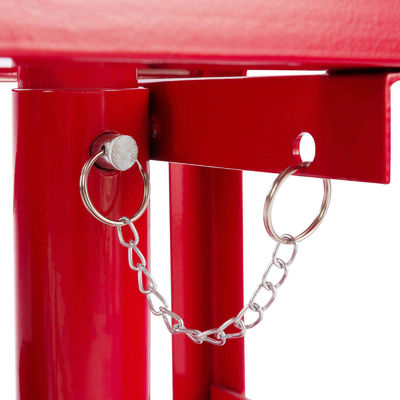

Adjustable ramp of 10.63 - 14.76 in (270 - 375 mm) for numerous cars Sturdy steel construction to CE standard With hydraulic jack with safety / overload valve Secure bolt for securing the raised vehicle Entry width to 9.65 in (245 mm)
Article Description
The height- adjustable loading ramp is ideal for making repairs and maintenance on your vehicle.
The very robust steel construction with a loading capacity of up to 4409 lbs (2000 kg) consists of a wide loading ramp with a frame to secure from driving over and a height-adjustable hydraulic platform as well as a hydraulic cylinder which can be also used as a hydraulic jack.
The width of the ramp is 9.65 in (245 mm). The loading ramp is easily raised and lowed by the hydraulic cylinder.
Technical data
- Model No.: YD10-001
- Capacity: max. 4409 lbs (2000 kg)
- Ramp height Starting position: 10.63 in (270 mm)
- Drivable width: up to 9.65 in (245 mm)
- Capacity hydraulic jack: max. 4409 lbs (2000 kg)

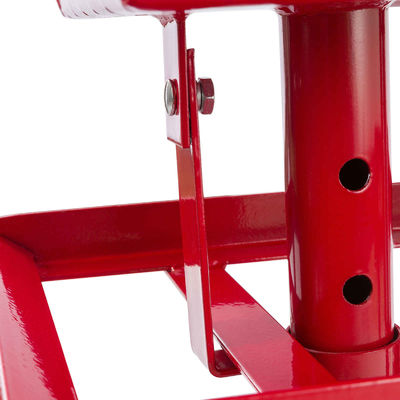

- Height adjustable: from 10.63 - 14.76 in (270 - 375 mm)
- Dimensions: 14.28 x 12.8 x 10.63 in (1150 x 325 x 270 mm)
- Platform size: 15.75 x 10.63 in (400 x 270 mm)
- Material: Steel
- Colour: Red
- Weight: 46.3 lbs (22 kg)
- Packing Size: 47" x 15" x 12.6"(1200 x 380 x 320mm)

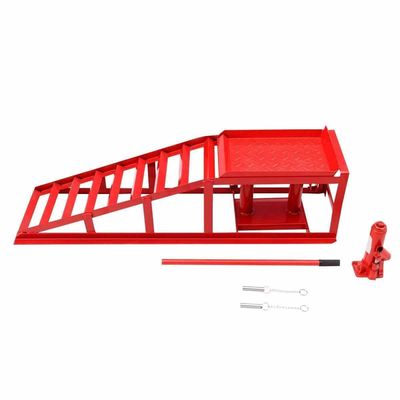

- Delivery: 1x access ramp, 1x hydraulic cylinders, 1x instruction manual
