Baked Powder Workshop 10000PSI Air Hydraulic Foot Pump

Brand Name: YEEDA
Model Number: YD02-005,YD02-006,YD02-007,YD02-008
Place of Origin: Zhejiang , China
Certification: CE
Minimum Order Quantity: 20PCS
Supply Ability: 3000PCS/MONTH
Delivery Time: 45 Days
Payment Terms: T/T
Standard Packaging: Carton Box

Product Details


Model NO.: YD02-005,YD02-006,YD02-007,YD02-008 Name: Multi-type Air/ Hydraulic Pump
Type: Air/Hydraulic Pump Color: Normal In Yellow Red And Blue, And Can Be Customized
Surface Treatment: Powder Coating MOQ: 20PCS
Delivery Time: 10 Days After Received Deposit Use: Workshop,industrial
Certification: CE Payment: 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight
Highlight

10000 PSI Air Hydraulic Foot Pump

,

Baked Powder Air Hydraulic Foot Pump

,

10000 PSI Air Over Hydraulic Foot Pump

Product Description

Multi-type Air Powered Hydraulic Foot Pump 10000PSI For Workshop,industrial



This machine is made of rugged construction parts are built for long life and easy service. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance and 5ft with /8 NPT quick hydraulic coupler with dust cap.



Advantages:

  •  It is designed to be used with single acting cylinders.
  •  Provides hands free operation for pumping and releasing load.
  •  TUFF COAT finish maximizes assembly corrosion resistance and 5ft with /8 NPT quick hydraulic coupler with dust cap.



Feature:

  •  Built to last with fully rebuildable components.
  •  All Metal Construction built to handle tough industrial applications.
  •  Baked Powder TUFF COAT finish maximizes assembly corrosion resistance.
  •  5ft with /8 NPT Quick hydraulic coupler with dust cap.
  •  Compact design for field use on construction sites and maintenance jobs.

Technical Specification:

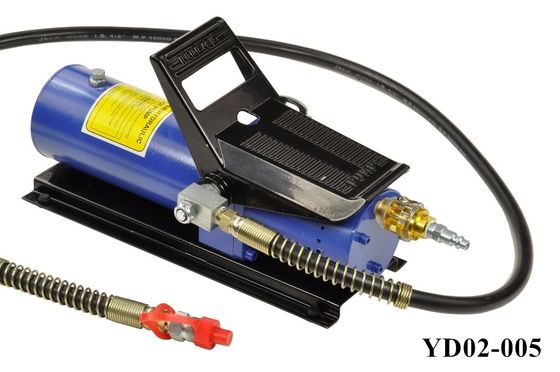

Model No.: YD02-005

Working pressure:0.4-1.17 Mpa

Max hydraulic pressure:70 Mpa

Output flow(no load): 490ml/min

Output flow(loaded): 130ml/min

Input port thread:1/4"(NPT) Output port thread:1/4"(NPT) Reservoir material: Steel
Reservoir capacity: 690ml
Cylinder inner diameter: 80 Pump core outer diameter: 7
External dimension:368*175*190 mm
Packing Dimensions:380*180*200 mm

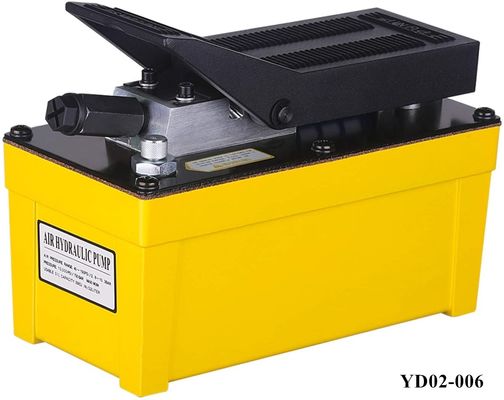

Model No.: YD02-006

Working pressure:0.28-0.86 Mpa

Max hydraulic pressure:70 Mpa

Output flow(no load): 850ml/min

Output flow(loaded): 170ml/min

Input port thread:1/4"(NPT)

Output port thread:3/8"(NPT)

Reservoir material: Aluminum
Reservoir capacity:1700 ml

Cylinder inner diameter: 70

Pump core outer diameter: 6.8
External dimension:256*127*190mm Packing Dimensions: 270*127*190 mm

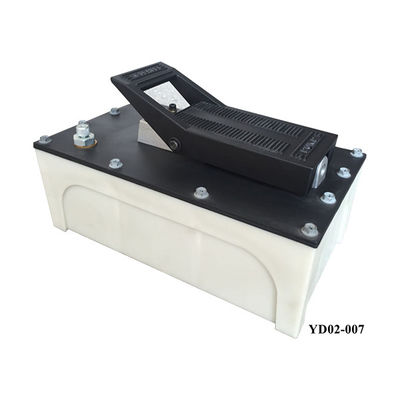

Model No.: YD02-007

Working pressure:0.28-0.86 Mpa

Max hydraulic pressure:70 Mpa

Output flow(no load): 850ml/min

Output flow(loaded): 170ml/min

Input port thread:1/4"(NPT)

Output port thread:3/8"(NPT)

Reservoir material: Plastic Reservoir capacity:3200 ml

Cylinder inner diameter: 70

Pump core outer diameter: 6.8
External dimension:332*189*190 mm
Packing Dimensions:340*210*215 mm

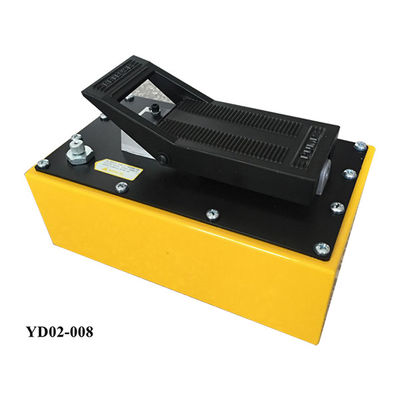

Model No.: YD02-008

Working pressure:0.28-0.86 Mpa

Max hydraulic pressure:70 Mpa

Output flow(no load): 850ml/min

Output flow(loaded): 170ml/min

Input port thread:1/4"(NPT)

Output port thread:3/8"(NPT)

Reservoir material: Steel
Reservoir capacity:3200 ml

Cylinder inner diameter: 70

Pump core outer diameter: 6.8
External dimension:332*189*190 mm
Packing Dimensions: 340*220*215 mm



Baked Powder Workshop 10000PSI Air Hydraulic Foot PumpBaked Powder Workshop 10000PSI Air Hydraulic Foot PumpBaked Powder Workshop 10000PSI Air Hydraulic Foot Pump

Product Highlights

Multi-type Air Powered Hydraulic Foot Pump 10000PSI For Workshop,industrial This machine is made of rugged construction parts are built for long life and easy service. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance and 5ft with /8 NPT quick hydraulic coupler with dust cap. ...
