Jiaxing Yeeda International Co.,Ltd
Home ProductsPneumatic Hydraulic Jack

Telescopic Air Hydraulic Trolley Jack

China Jiaxing Yeeda International Co.,Ltd certification
China Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

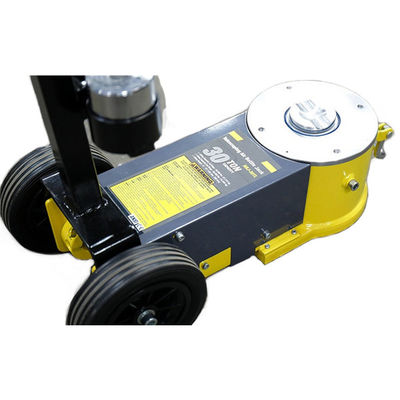

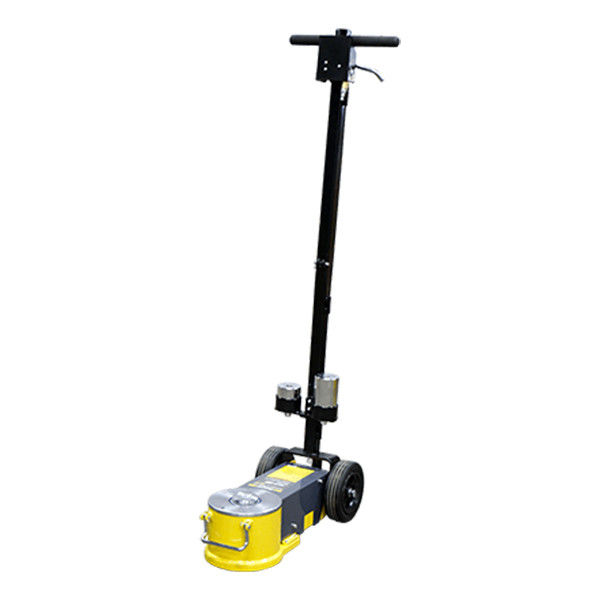

Telescopic Air Hydraulic Trolley Jack

Telescopic Air Hydraulic Trolley Jack
Telescopic Air Hydraulic Trolley Jack Telescopic Air Hydraulic Trolley Jack Telescopic Air Hydraulic Trolley Jack Telescopic Air Hydraulic Trolley Jack Telescopic Air Hydraulic Trolley Jack

Large Image :  Telescopic Air Hydraulic Trolley Jack

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Model Number: YD21-018
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Packaging Details: Carton Box
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 200 PCS/MONTH
Detailed Product Description
Model No.: YD21-018 Name: 15/30 Ton Capacity Two Stages Telescopic Air Trolley Jack
Capacity: 30Ton Material: Steel
Type: Air And Hydraulic Color: Gray And Yellow, Customized Color Acceptable
MOQ: 10 Pcs Deliver Time: 30 Days
Package: Carton Box Payment: 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight.
Highlight:

30Ton Telescopic Air Hydraulic Trolley Jack

,

Telescopic Air Hydraulic Trolley Jack

,

15t Pneumatic Trolley Jack

15/30 Ton Capacity Two Stages Telescopic Air Trolley Jack In Garage Repair



While it’s designed for heavy-duty commercial applications, this jack can be used to lift smaller vehicles with ease. This product offers infinite versatility up to the rated lift capacity, so it may be one of the last floor jacks you ever need! All it requires to function is access to shop air, and then there's no stopping this trolley jack from being your go-to heavy-duty lifting solution.



Features:

  • 60,000-lb. lifting capacity
  • Designed for heavy commercial use
  • Air-hydraulic operation
  • Lowered profile for low ground-clearance vehicles

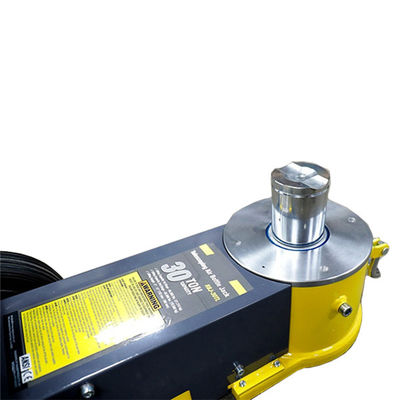

  • Hardened alloy-plated telescoping ram for maximum durability
  • Heavy-duty steel saddle
  • Large rubber wheels for easy maneuverability
  • Compact design fits easily between tandem wheels
  • Dead-man controls for safe operation

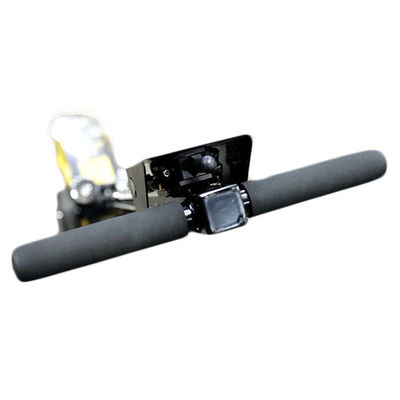

  • Long "T" handle for easy positioning

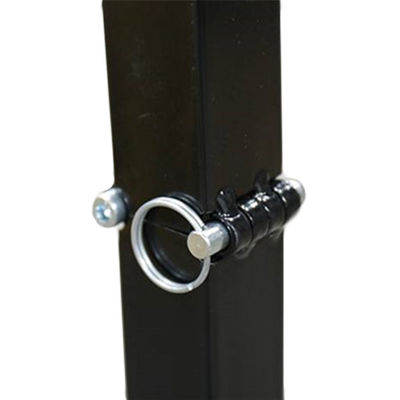

  • "T" handle can be locked in three different positions
  • Double-sealed for longer service life
  • Air valve with integrated filter
  • Heavy-duty air motor provides maximum power
  • Sealed hydraulic unit prevents contamination
  • Built-in safety valve prevents jack from being used beyond its rated capacity
  • Additional lifting saddles included

Technical Specification:

Model No. YD21-018
Lifting Capacity - 1st Stage 66,000 lbs. (30,000 kg)
Lifting Capacity - 2nd Stage 33,000 lbs. (15,000 kg)
Lowered Height 6.5" (150 mm)
Raised Height 6” - 12" (152 mm - 305 mm)
Chassis Width 12.5" (318 mm)
Chassis Length 22.5" (572 mm)
Shipping Weight 113 lbs. (51.5 kg)
Shipping Dimensions 28" x 15" x 12" (711 x 381 x 305 mm)



Telescopic Air Hydraulic Trolley Jack 0

Telescopic Air Hydraulic Trolley Jack 1Telescopic Air Hydraulic Trolley Jack 2Telescopic Air Hydraulic Trolley Jack 3Telescopic Air Hydraulic Trolley Jack 4
