Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Brand Name
YEEDA
PRODUCT MODEL
YD21-019
certificate
CE
country of origin
Zhejiang , China
MOQ
10 PCS
payment method
T/T
Supply Capacity
200 PCS/MONTH
Product Summary
10/25/50 Ton Capacity Three Stages Telescopic Air Trolley Jack In Garage Repair The true king of rolling floor jacks, the YD21-019 rules the garage with its mighty 110,000-lb(50Ton). lifting capacity. Simply hook it up to a shop air line and experience total ease of use and incredible safety when ...
Product Details
Highlight:
Three Stages Pneumatic Hydraulic Jack
,25Ton Pneumatic Hydraulic Jack
,10Ton Air Hydraulic Trolley Jack
Model No.:
YD21-019
Name:
10/25/50 Ton Capacity Three Stages Telescopic Air Trolley Jack
Capacity:
50Ton
Material:
Steel
Type:
Air And Hydraulic
Color:
Gray And Yellow, Customized Color Acceptable
MOQ:
10 Pcs
Deliver Time:
30 Days
Package:
Carton Box
Payment:
1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight.
Product Description

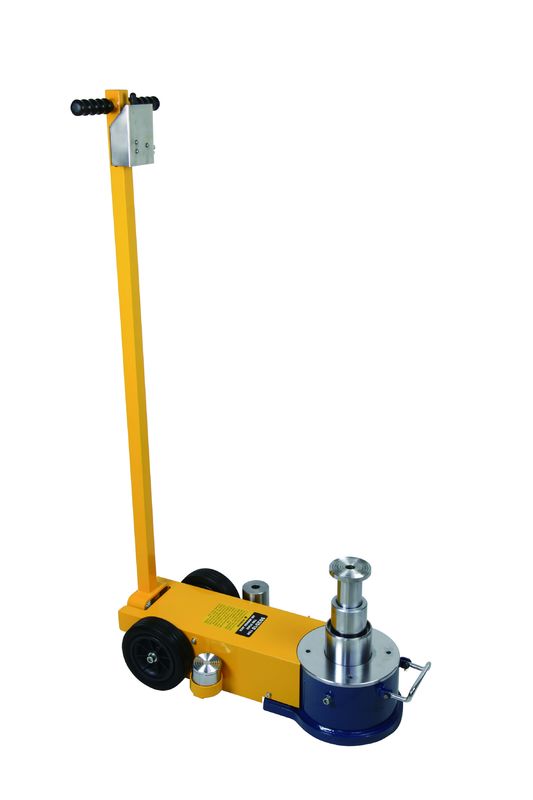

10/25/50 Ton Capacity Three Stages Telescopic Air Trolley Jack In Garage Repair
The true king of rolling floor jacks, the YD21-019 rules the garage with its mighty 110,000-lb(50Ton). lifting capacity. Simply hook it up to a shop air line and experience total ease of use and incredible safety when lifting five-axle semis and other heavy-duty equipment.
Features:
- 110,000-lb(50Ton). lifting capacity
- Designed for heavy commercial use
- Air-hydraulic operation
- Lowered profile for low ground-clearance vehicles
- Hardened alloy-plated telescoping ram for maximum durability
- Heavy-duty steel saddle
- Large rubber wheels for easy maneuverability
- Compact design fits easily between tandem wheels
- Dead-man controls for safe operation

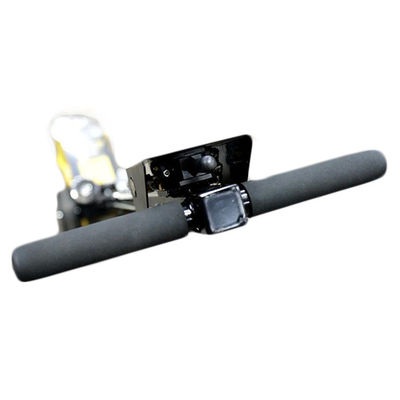

- Long "T" handle for easy positioning

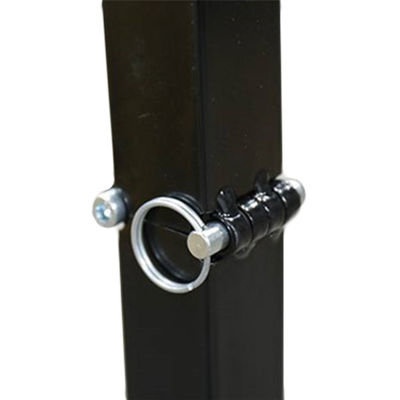

- "T" handle can be locked in three different positions
- Double-sealed for longer service life

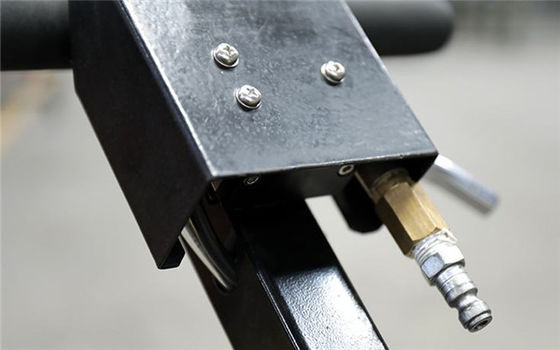

- Air valve with integrated filter
- Heavy-duty air motor provides maximum power
- Sealed hydraulic unit prevents contamination
- Built-in safety valve prevents jack from being used beyond its rated capacity

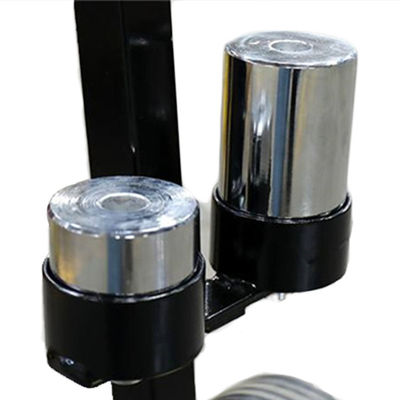

- Additional lifting saddles included
Technical Specification:
| Model No. | YD21-019 | ||||
| Lifting Capacity - 1st Stage | 110,000 lbs. (50,000 kg) | ||||
| Lifting Capacity - 2nd Stage | 55,000 lbs. (25,000 kg) | ||||
| Lifting Capacity - 3rd Stage | 22,000 lbs. (10,000 kg) | ||||
| Min Height | 6.5" (150 mm) | ||||
| Max Height | 14.5"(367 mm) | ||||
| Air Pressure | 0.7-1.0Mpa | ||||
| Shipping Weight | 157 lbs. (71.5 kg) | ||||
| Shipping Dimensions | 28" x 14" x 11" (720 x 365 x 300 mm) | ||||
