Powder Coated Mobile Pulling Handle 9 Drawer Top Tool Chest
Product Details
| Model: | YD27-007-9D | Name: | Tool Cabinet |
|---|---|---|---|
| Type: | Tool Trolley | Size: | 688*459*858mm Without Casters |
| Material: | 0.8-1.0mm Thickness Iron | Surface: | Powder Coating |
| Color: | Red,blue, Customized Color Acceptable | Package Size: | 750*530*780mm |
| Package: | 1pcs/CTN Corrugated Case | G.W./N.W.: | 68.2/66.1 Kg |
| Casters: | 5'' Rubber Wheel | Usage: | Hardware Tools Storage |
| Place Of Origin: | Zhejiang ,China | Port: | Shanghai/Ningbo,China |
| Highlight |
Pulling Handle 9 Drawer Top Tool Chest,Powder Coated 9 Drawer Top Tool Chest,688 mm Heavy Duty Rolling Tool Cabinet |
||
Product Description

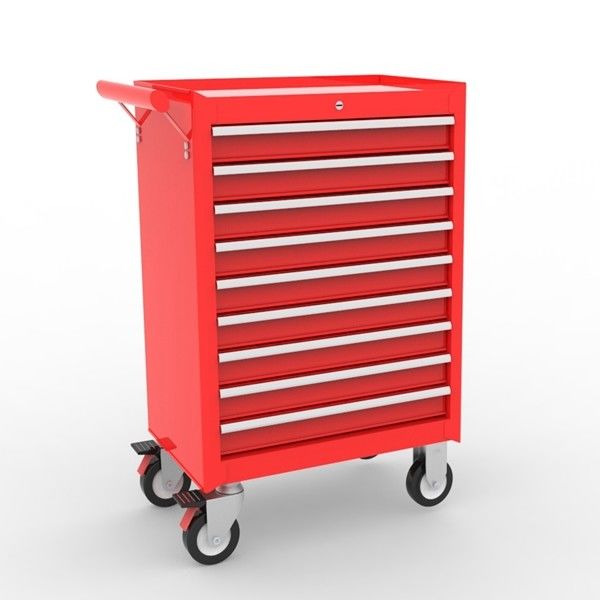

YD27-007-9D/Red Color Tool Trolley 9 Drawers Mobile Workshop Trolley Tool Cabinet
Features:
- 9 drawer roller cabinet with pulling handle manufactured from sheet steel with a powder coated finish.
- Fitted with two fixed and two braked, heavy - duty swivelling castors.
- Drawers are fitted with ball bearing runners for smoother operation and a protective foam liner.

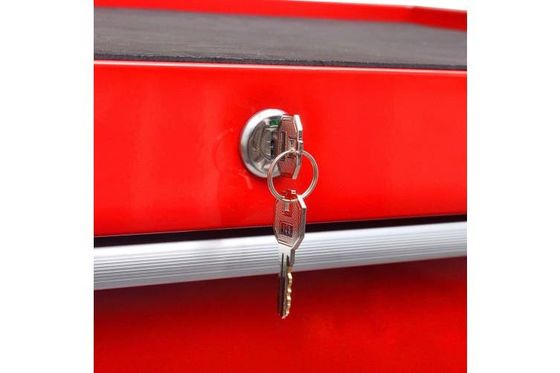

- Each roller cabinet is fitted with a secure integral locking system Supplied with two keys.
- Carton packed.
Technical Specification:
| Sizes&Weight | ||||||
| Overall size:(without casters) | 688X459X858mm;27.09"X18.07"X33.78" | |||||
| Carton size: | 750X530X780mm;29.53"X20.87"X36.81" | |||||
| 9 drawers: | 580X400X61(75)mm;22.83"X15.75"X2.40"(2.95") | |||||
| N.W.: | 66.1Kgs;145.73Lbs | |||||
| G.W.: | 68.2Kgs; 150.36Lbs | |||||
| Container Oty.: | 72pcs/20';144pcs/40';180pcs/40'HQ | |||||
| Technical Parameters | ||||||
| Steel Thickness | 1.0mm for the body and 0.8mm for the drawer | |||||
| Surface Treatment | Powder Coating with Red/any Pantone or RAL color | |||||
| Drawer Pulls | Aluminum (customized logo optional) | |||||
| Slides | 9 Pairs 16"*45mm ball-bearing slides | |||||
| Drawer Function | with self lock and auto return function (optional) | |||||
| Drawer Liners | 2.5mm thick EVA liner inside | |||||
| Casters | One set casters:5"*2" TPR castors, two fixed and two swivel with full brakes | |||||
| Side Handle | Oval-shaped side handle | |||||
| Lock | one sets central flat lock and keys | |||||
| Packing | PE bag + styrofoam + five layers export brown carton; | |||||
