Product Details:
Payment & Shipping Terms:
|
| Model No.: | YD57-006 | Name: | Ball Joint Puller Separator Tie Rod End Extractor Remover Tool Set |
|---|---|---|---|
| Material: | Chrome Vanadium Steel | Heat Treatment Technology: | Quenching - Hardening - Tempering |
| Surface: | Fulyl Polished And Mirror Chrome Plated | Process: | Drop Forged & Heat Treated |
| Application: | Auto Repair Tool | Package: | Inner Color Case And Master Carton |
| Port: | Shanghai/Ningbo,China | ||
| Highlight: | 155mm Garage Hand Tools,Chrome Vanadium Garage Hand Tools,22MM Tie Rod Ball Joint Separator |
||
Ball Joint Puller Separator Tie Rod End Extractor Remover Tool Set

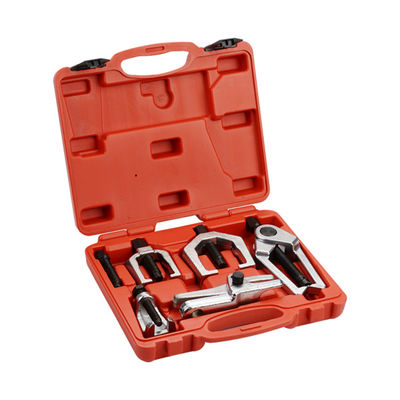

Universal release and ejector set for ball joints, tie rod ends, ball joint pins on tie rods and stabilizers. All clamping screws are equipped with fine thread, so that a free adjustment is possible. The set is delivered in an assortment case for easy transportation.
The following parts are included in the set:

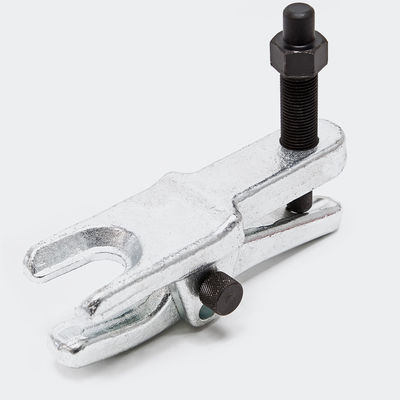

Ball joint ejector
• Opening 20 - 22 mm
• Length 155 mm
• Drive over 21 mm external hexagon
• Clamping range adjustable in two positions 30 or 55 mm
• for pushing out the ball joint pins on tie rods and stabilizers

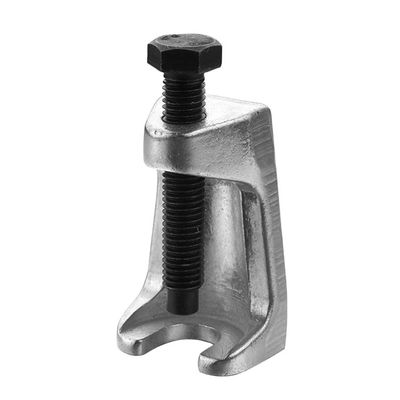

Tie rod end ejector
• forged and galvanized
• Opening 18 mm, width 28 mm, height 50 mm
• Spindle M12 x 1.75, drive with hexagon wrench size 19 mm

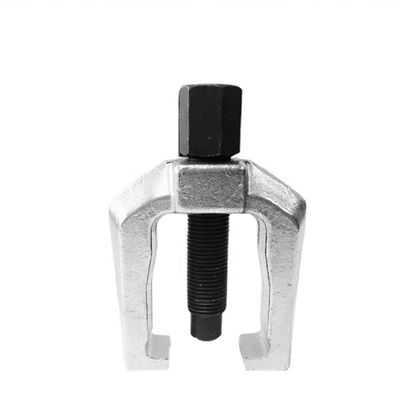

2-arm puller for steering column arm / steering arm
• forged and galvanized
• Opening 18 mm, width 18 mm, inner opening 45 mm, inner height 50 mm
• Spindle M16, drive with hexagon wrench size 19 mm

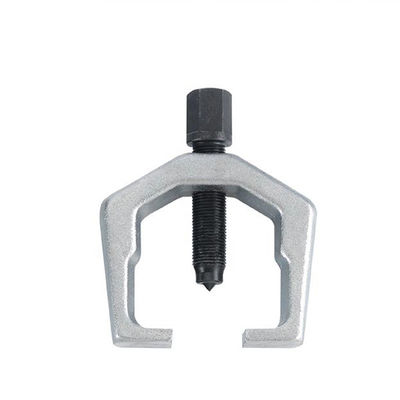

2-arm tie rods and steering column lever / steering arm ejector
• forged and galvanized
• Opening 33 mm, width 28 mm, inner opening 55 mm, inner height 55 mm
• Spindle M16, drive with hexagon wrench size 19 mm

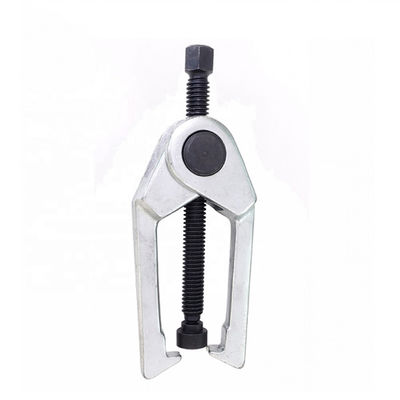

2-arm ball bearing puller / ball joint extractor and disc puller
• Length 160 mm
• Arm width 16 mm, inner leg 75 mm, leg inner height 75 mm
• Spindle M14, drive with hexagon wrench size 17 mm
