Jiaxing Yeeda International Co.,Ltd
Home ProductsGarage Hand Tools

Gear Puller Garage Hand Tools

China Jiaxing Yeeda International Co.,Ltd certification
China Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

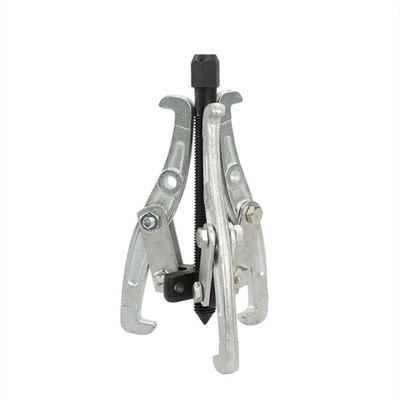

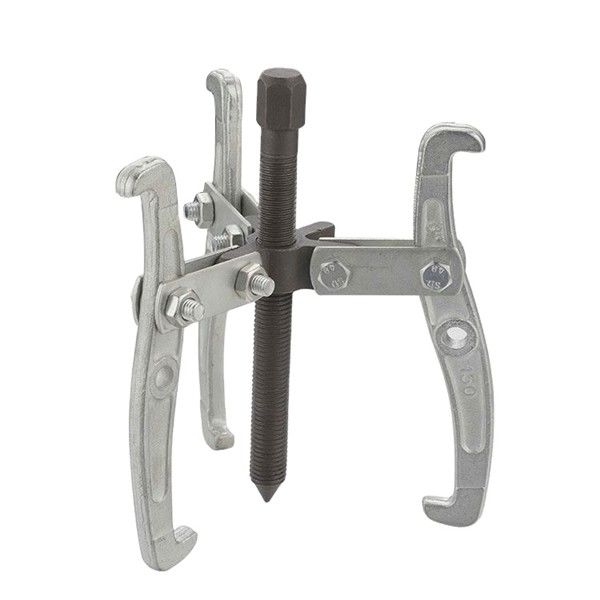

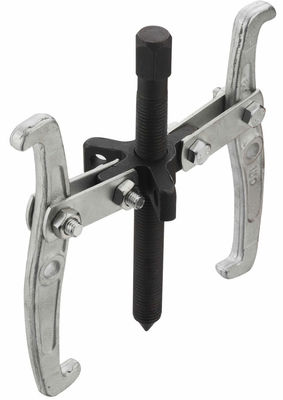

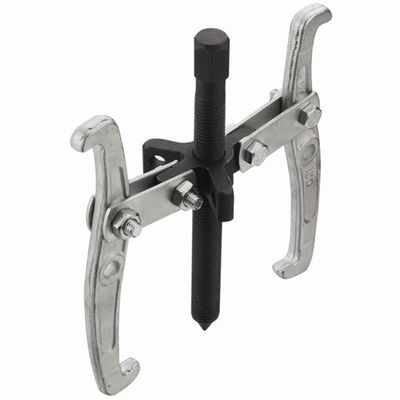

Gear Puller Garage Hand Tools

Gear Puller Garage Hand Tools
Gear Puller Garage Hand Tools Gear Puller Garage Hand Tools Gear Puller Garage Hand Tools Gear Puller Garage Hand Tools

Large Image :  Gear Puller Garage Hand Tools

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Model Number: YD60-001---YD60-008
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Carton Box
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 2000PCS/MONTH
Detailed Product Description
Model No.: YD60-001---YD60-008 Name: Forged 2/3 Jaws Gear Puller
Materiale: Carbon Steel Surface: Zinc Plated
Package: Blow Mould Case+master Carton Process: Forged
Application: Automotive Repair Tools Port: Shanghai/Ningbo,China
Highlight:

Gear Puller Garage Hand Tools

,

Zinc Plated Garage Hand Tools

,

Multi Function 3 Jaw Gear Puller

Multi-Function 2/3 Jaw Gear Puller Hub Bearing Removal Pulley Tool for Car Repairing



Introductions:

  •  2/3-jaws puller are ideal for a quick and safe removal of e.g. gears, pulleys or ball bearings of a shaft. They are characterized by a high intrinsic stability. The clamping depth can be set as desired.

    The 2/3-pieces tool set in its high-quality design is forged and chrome-plated and therefore ensures for a long operational life. By simply turning the puller clamps, it can be used for both the interior and the exterior setting.

Features:

  •  Fully adjustable design.
  •  Reversible for internal and external use.
  •  Swivel thrust plates on larger sizes prevent damage to shaft ends.
  •  Hex head forcing screws suitable for use with ratchet wrench or combination spanner.
  •  Suitable for removing gears, sprockets, bearings, pulleys, and much more,Even can be used for flywheels on small engines, found in outboards, lawn mowers.

Specifications:

Jaws drop-forged with carbon steel,Surface treatment of White Zine Plated.
Model No. Size QTY/CTN G.W./CTN PACKAGE /CTN (CM)
YD60-001 3"(75mm) 40 18 25 x 24 x 17.5
YD60-002 4”(100mm) 25 19 30 x 15 x 25
YD60-003 6”(150mm) 15 17.5 34.5 x 20 x 14.8
YD60-004 8"(200mm) 10 21 42 x 25 x 11.5
YD60-005 10"(250mm) 5 17 45 x 30.5 x 7.5
YD60-006 12"(300mm) 4 19 35 x 20 x 14
YD60-007 14"(350mm) 2 14 42.5 x 24 x 8
YD60-008 16"(400mm) 2 19 43 x 26 x 9.5

Gear Puller Garage Hand Tools 0Gear Puller Garage Hand Tools 1Gear Puller Garage Hand Tools 2
