2inch Straight Tongue Trailer Coupler
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD36-001---YD36-009A/B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 PCS |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Pcs/Month |
|
Detail Information |
|||
| Model No.: | YD36-001---YD36-009A/B | Name: | Heavy Duty Trailer Hitch Ball Coupler |
|---|---|---|---|
| Material: | Steel | Ball Size: | 50mm,1-7/8",2",2-5/16" |
| Channel: | 2",2-1/2",3",2" | Surface: | Zinc Plating, Black Powder Coating, Etc. |
| Use Parts: | Trailer Parts | Parts: | Trailer Locks |
| Application: | Connecting | ||
| Highlight: | 2inch Straight Tongue Trailer Coupler,Heavy Duty Straight Tongue Trailer Coupler,Heavy Duty 2 Inch A Frame Trailer Coupler |
||
Product Description
Multi-Type Matal Heavy-Duty Trailer Tow Hitch Ball Coupler Use For Trailer Hookup
- Perfect for your heavy-duty towing needs, this rust-resistant trailer coupler is designed for Class II vehicles. The trailer coupler features a spring loaded collar and meets V-5 & SAE standards. Attached to your vehicle, this coupler enables you to tow up to 2000lb,3500 lb,5000lb......
Feature:
- Drop forged, heat treated flanged steel construction
- Sturdy, riveted tongue lock with spring release
- Use with industrial, commercial, utility agricultural, and recreational equipment
Specification:
| Part No. | Ball Dia. | Channel | Max. Capacity (LBS) | Finish | |
| YD36-001 | 1-7/8" | 2" | 2,000 | Zinc | |
| YD36-002 | 1-7/8" | 2-1/2" | 2,000 | Zinc | |
| YD36-003 | 1-7/8" | 3" | 2,000 | Zinc | |
| YD36-004 | 2" | 2" | 3,500 | Zinc | |
| YD36-005 | 2" | 2-1/2" | 3,500 | Zinc | |
| YD36-006 | 2" | 3" | 3,500 | Zinc | |
| YD36-007 | 2 | 3" | 5,000 | Zinc | |
| YD36-008 | 2" | / | 5,000 | Black | |
| YD36-009A | 2" | / | 7,000 | Black | |
| YD36-009B | 2-5/16" | / | 12,000 | Black | |

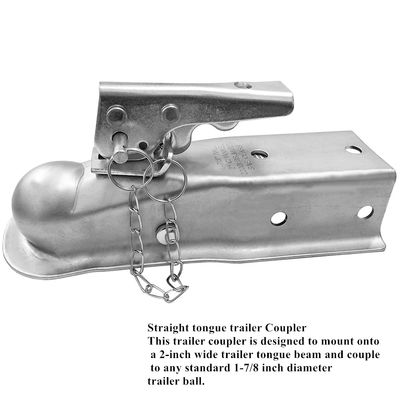

- YD36-001--003 coupler for 1-7/8" ,2"(2-1/2" or 3" ) channel width balls
- is galvanized to prevent corrosion and rust. It is suitable for 2" (2-1/2" or 3" ) channels.
- Suitable for 1-7/8" steel balls. Maximum load capacity is 2,000 lbs, in accordance with American standards.

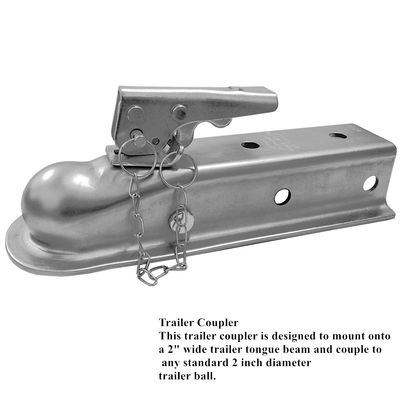

- YD36-004--006 coupler for 2" ,2"(2-1/2" or 3" ) channel width balls
- is galvanized to prevent corrosion and rust. It is suitable for 2" (2-1/2" or 3" )
- channels.Suitable for 1-7/8" steel balls. Maximum load capacity is 3,500 lbs, which meets American standards.
- YD36-007 coupler for 2",3"channel width balls is galvanized to prevent corrosion and rust.
- It is suitable for 3" channels.Suitable for 2" steel balls. Maximum load capacity is 5,000 lbs, in line with American standards.

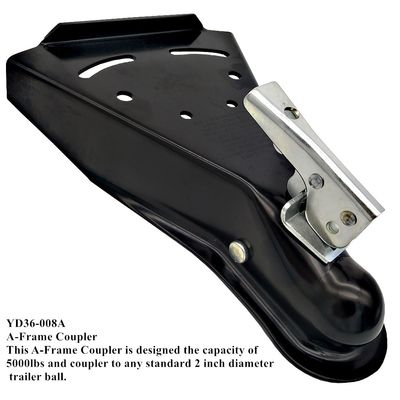

- YD36-008 A COUPLER for 2" steel ball ,black painted to prevent corrosion and rust.
- It is suitable for 2" steel balls and meets SAE class III Standards.The capacity is 5,000 LBS.

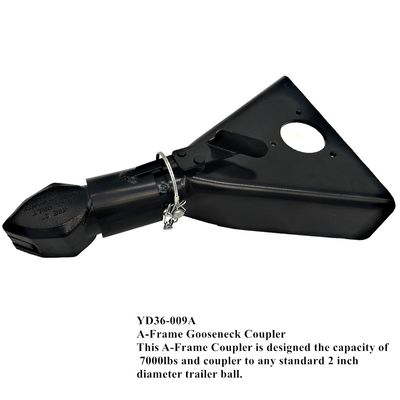

- YD36-009A and 009B Type A coupler for 2" (2-5/16") steel balls, black painted,
- with steel chain to prevent corrosion and rust. It is suitable for 2" (2-5/16") steel balls and
- meets SAE class III standards.The capacity is 7,000 lbs(12,000lbs)
