Single Beam 1 Ton Portable Gantry Crane
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD48-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Packaging Details: | Plywood Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/MONTH |
|
Detail Information |
|||
| Model No.: | YD48-001 | Name: | Portable Gantry Crane Adjustable 1tonne |
|---|---|---|---|
| Capacity: | 1 Tonne | Material: | Steel |
| Crane Type: | Single Beam Light Duty Gantry Crane | Color: | Red,Black, Customized Color Acceptable |
| Max. Lifting Height: | 3600mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage |
| Moving Method: | Hand Push | Crane Feature: | Adjustable Height |
| N.W./G.W.: | 124/144kgs | Package Size: | 227x44x34 Cm |
| Shipping Package: | Wooden Box | ||
| High Light: | Adjustable 1 Ton Portable Gantry Crane,Single Beam 1 Ton Portable Gantry Crane,1t Single Beam Gantry Crane |
||
Product Description

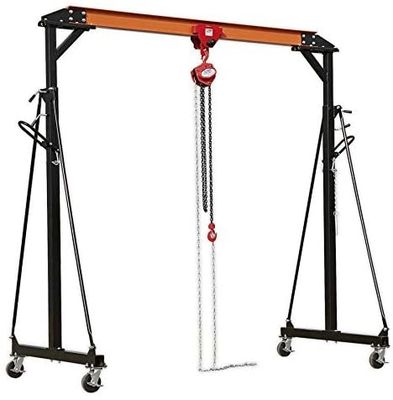

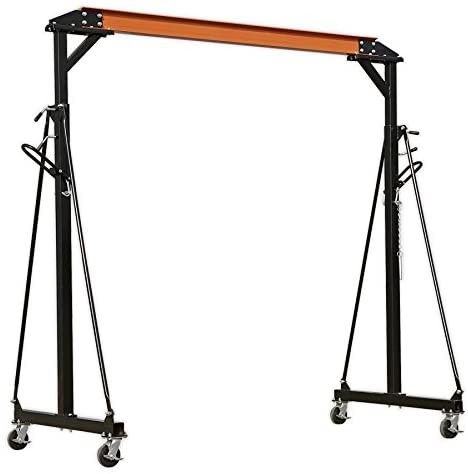

1 Tonne Portable Gantry Adjustable Crane for Garage Workshop Equipment
Ideal for workshops/garages where level lifting is essential. Fitted with four swivel locking castors. Gantry crane is NOT to be moved while loaded. All steel construction with 'I-beam' cross member for added strength. Height adjustable from 2400 to 3600mm in 100mm increments. Ideal for maintenance, manufacturing, repairs and other material handling tasks. Quick assembly and disassembly for easy transport within a workplace or from site to site. Lifting tackle not included.
Features:
- Portable adjustable gantry crane is ideal for shops where level lifting is essential

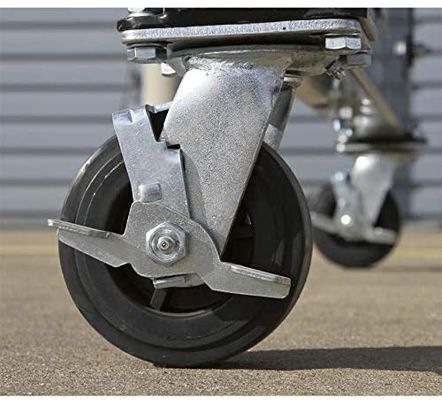

- Four swivel locking castors
- All steel construction
- 'I' beam cross member for added strength
- Ideal for maintenance, manufacturing, repairs and other material-handling tasks
- Quick assembly and disassembly for easy transport within a workplace or from site to site
- Gantry crane is NOT to be moved while loaded
- Lifting tackle not included
Detail Specification:
| Model No | Capacity | Min. Height | Max. Height | Post Width | Gear Number | Adjust size of each |
| YD48-001 | 1 ton | 2395 mm | 3595 mm | 3595 mm | 12 | 100 mm |
| Beam Size | Product Size(WxDxH) | N.W.:/G.W.: | Package Size | 20ft cntr/MOQ |
| 120x74x2200 mm | 3120x1200x2515 mm | 124/144 kg | 227x44x34 cm | 60pcs/30PCS |
