360 Swivel Wheels 0.5t Capacity Transmission Jack 2 Stage Car Position Jack

Brand Name: YEEDA
Model Number: YD05-002
Place of Origin: Zhejiang , China
Certification: CE
Minimum Order Quantity: 20 pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 15DAYS
Payment Terms: T/T
Standard Packaging: Wood Box

Product Details


Model No.: YD05-002 Name: 0.5T Two Stage Hydraulic Transmission Jack
Capacity: 500KGS Applicable Industries:: Machinery Repair Shops, Vehicle Repair
Color: Red,blue, Customized Color Acceptable Surface Treatment: Powder Coating
MOQ: 20pieces Packaging: Crate
Delivery Time: 15 Days After Received Deposit Test Video: Provided
Warranty Of Core Components: 1 Year Certification: CE
Highlight

Car Position hydraulic transmission jack

,

2 Stage hydraulic transmission jack

,

transmission jack 0.5 ton

Product Description

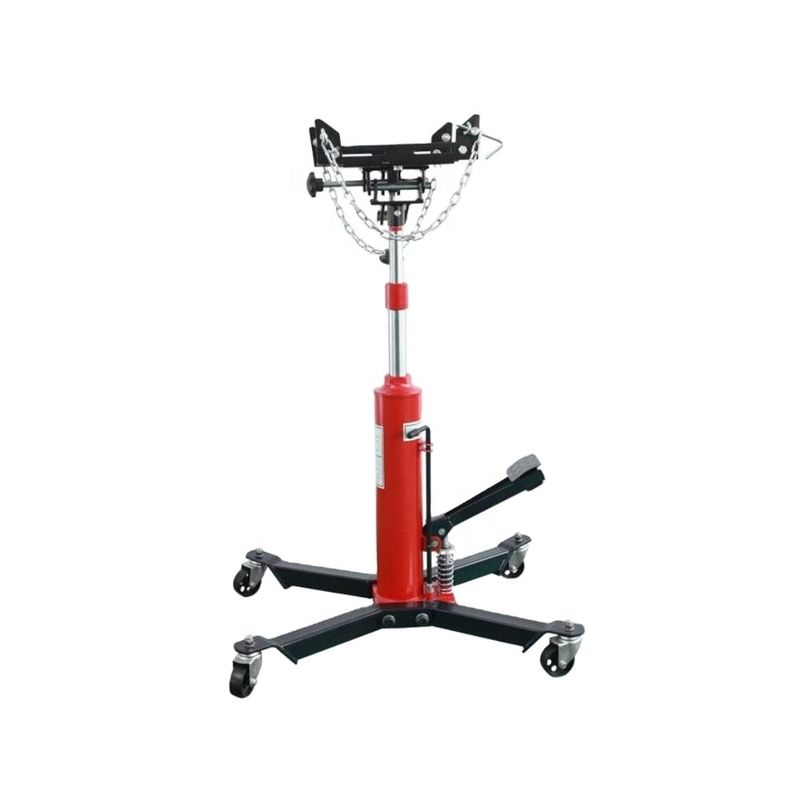

360 Swivel Wheels 0.5t Capacity Transmission Jack 2 Stage Car Position Jack

Model No.:YD05-002



0.5T Two Stage Hydraulic Transmission Jack With adaptor

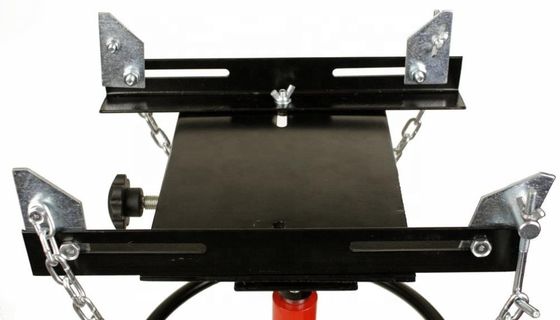

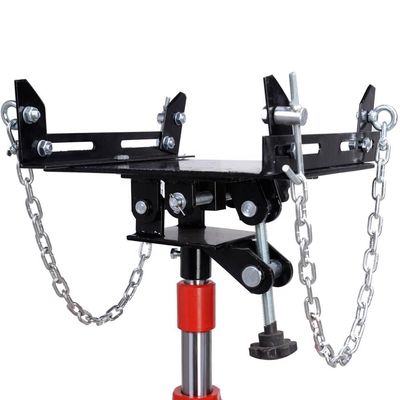

This is our  Hydraulic Pressure Transmission Jack, with which you can easily guide a transmission safely and securely. It is features fully adjustable saddle with corner brackets. Comes with foot operated pump and lowering pedal, great lift range by telescopic two-stage hydraulic ram, wide 4-leg base with swivel casters for stability and easy movement. It's ideal for any automotive or light truck transmission installation or removal.


Mainly use for raising and lowering transmissions and gearboxes in both front and rear wheel drive vehicles.Also can be use for raising and lowering petrol and fuel tanks, exhausts full and partial systems, rear axles, trans axles , subframes, steering racks and suspension components.
The extra wide base gives the jack a high degree of stability.
Suitable for cars, light commercial and small truck.

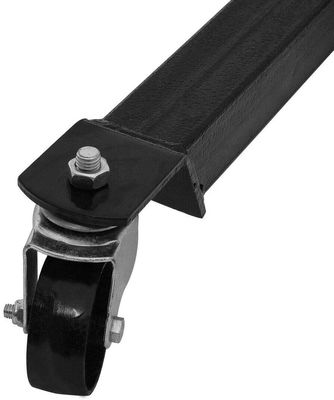

360° swivel top head, 4 swivel castors and double handle make this jack very easy to move to exact position you need

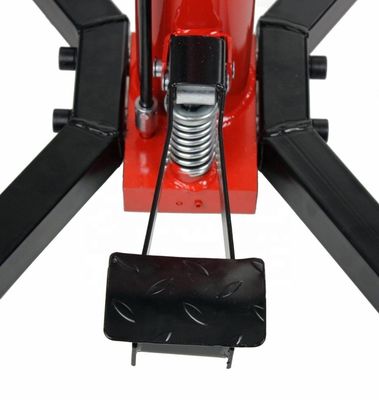

The foot pedal pump and hands release valve means you can position the transmission to exact positions you require
The extra wide base gives the jack a high degree of stability.



Specification:



Capacity:500 kgs

Height (Min.)........33"(850mm)

Height (Max.).......68.9"(1750mm)

1St Stage Stroke........17.7"(450mm)

2 nd Stage Stroke..........17.7"(450mm)

G.W........145LB(66KGS)

N.W........132LB(60KGS)

Packing Size.........18.9" x 11.4" x 29.5"(480 x 290 x 750mm)

360 Swivel Wheels 0.5t Capacity Transmission Jack 2 Stage Car Position Jack360 Swivel Wheels 0.5t Capacity Transmission Jack 2 Stage Car Position Jack360 Swivel Wheels 0.5t Capacity Transmission Jack 2 Stage Car Position Jack
