1T Double Ram Hydraulic Transmission Jack 2 Stage Telescoping Car Jack
Product Details
| Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD05-003A |
|---|---|---|---|
| Name: | Two Stage Hydraulic Transmission Jack | Color: | Red,blue, Customized Color Acceptable |
| Capacity: | 500 / 1000KGS | MOQ: | 20pieces |
| Surface Treatment: | Powder Coating | Delivery Time: | 15 Days After Received Deposit |
| Packaging: | Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Warranty Of Core Components: | 1 Year |
| Highlight |
Telescoping 2 stage transmission jack,Hydraulic 2 stage transmission jack,1T Double Ram Telescopic Transmission Jack |
||
Product Description
1T Hydraulic High Position Transmission Jack 2 Stage Car Position Jack With Adaptor

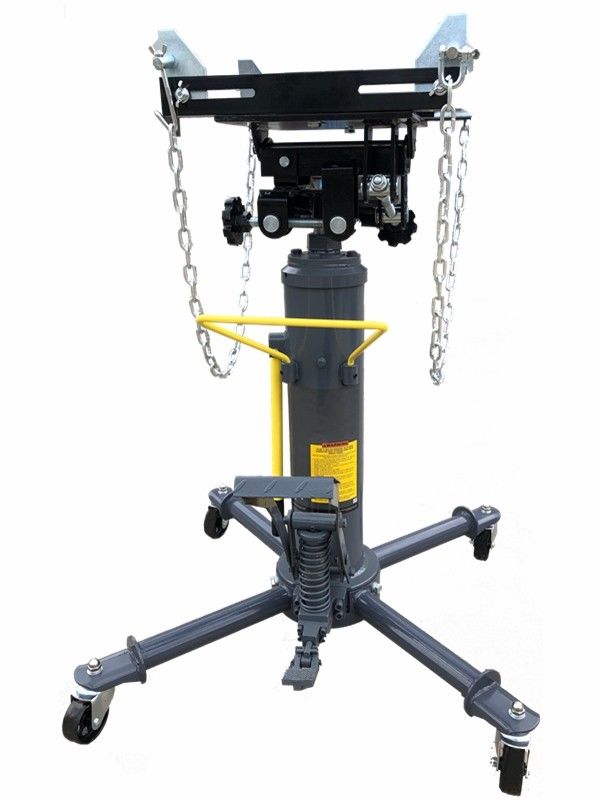

1T Double Ram Hydraulic Transmission Jack
The Hydraulic Transmission Jack is the ideal tool for removal and installation of the transmission and differential. The Hydraulic Transmission Jack is equipped with a height-adjustable hydraulic piston which is actuated by a pedal (this leaves the hands free to position the jack correctly).
Stand with four legs
Chrome piston
4 swivel wheels
Quick-descent mechanism
Actuated by pedal
Telescopic 2-stage model for reduced clearance lifts. Featuring high speed lift to gearbox - just lift piston. Foot pedal operation keeps hands-free. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. Highly manoeuvrable on castors.
1 Ton 2 Stage Telescoping Transmission Jack offers high end transmission jack features at an affordable price. This full-featured transmission jack has a 4-way adjustable saddle with independently adjustable fingers for greater flexibility and safety. It also has smooth rolling, rubber coated steel casters with locks for easy operation. The internal shaft retention system reduces potential leak points for added durability. Foot operated pump and release pedals provide hands-free lifting and lowering control.
Specification:
Model No.:YD05-003A
Capacity:1000 kgs
Lifting Height --1st Stage : 2084lbs(946kgs)
Lifting Height--2nd Stage : 1000lbs(454kgs)
Lowered Height : 37"(940mm)
First Stage Height : 56"(1422mmm)
Full Raise Height : 74.5"(1898mm)
Base Dimension: 31" x 31" (787 x 787mm)
G.W........85kgs
N.W........77kgs
Packing Size.........15" x 22.4" x 34.6"(38 x 56 x 88cm)
