Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Product Details
| Model No.: | YD05-004 | Name: | 1T Two Stage Hydraulic Transmission Jack |
|---|---|---|---|
| Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Capacity: | 1000KGS |
| Color: | Red,blue, Customized Color Acceptable | Surface Treatment: | Powder Coating |
| MOQ: | 20pieces | Delivery Time: | 20 Days After Received Deposit |
| Packaging: | Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight |
Vehicle Repair hydraulic telescopic transmission jack,465mm hydraulic telescopic transmission jack,1T Double Ram Hydraulic Transmission Jack |
||
Product Description

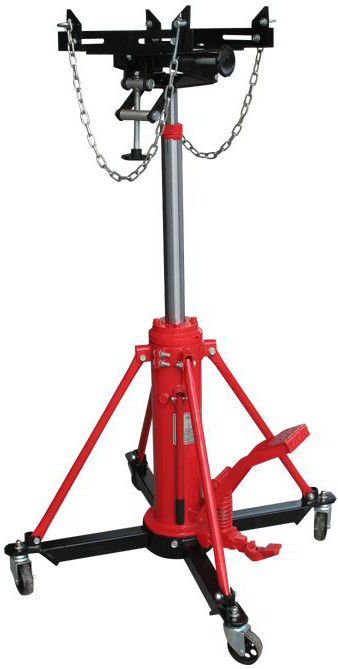

Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Model No.:YD05-004
1T Double Ram Hydraulic Transmission Jack

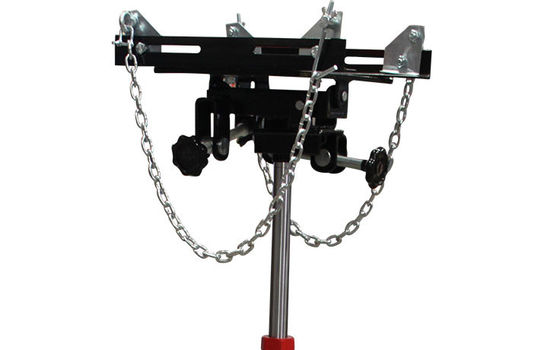

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into positionand the safety overload valveprovides addeduser protection. Operated via the twin position andlsquo;Quick Lift' foot pedal for hands - free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side - mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side - to - side tilt features aids the user further.
1 Ton 2 Stage Telescoping Transmission Jack offers high end transmission jack features at an affordable price. This full-featured transmission jack has a 2-way adjustable saddle with independently adjustable fingers for greater flexibility and safety. It also has smooth rolling, rubber coated steel casters with locks for easy operation. The internal shaft retention system reduces potential leak points for added durability. Foot operated pump and release pedals provide hands-free lifting and lowering control.
Specification:
Capacity:1000 kgs
Height (Min.)........880mm
Height (Max.).......1810mm
1St Stage Stroke........465mm
2 nd Stage Stroke..........465mm
G.W........85kgs
N.W........75kgs
Packing Size.........55 x 36 x 85cm
Product Highlights
