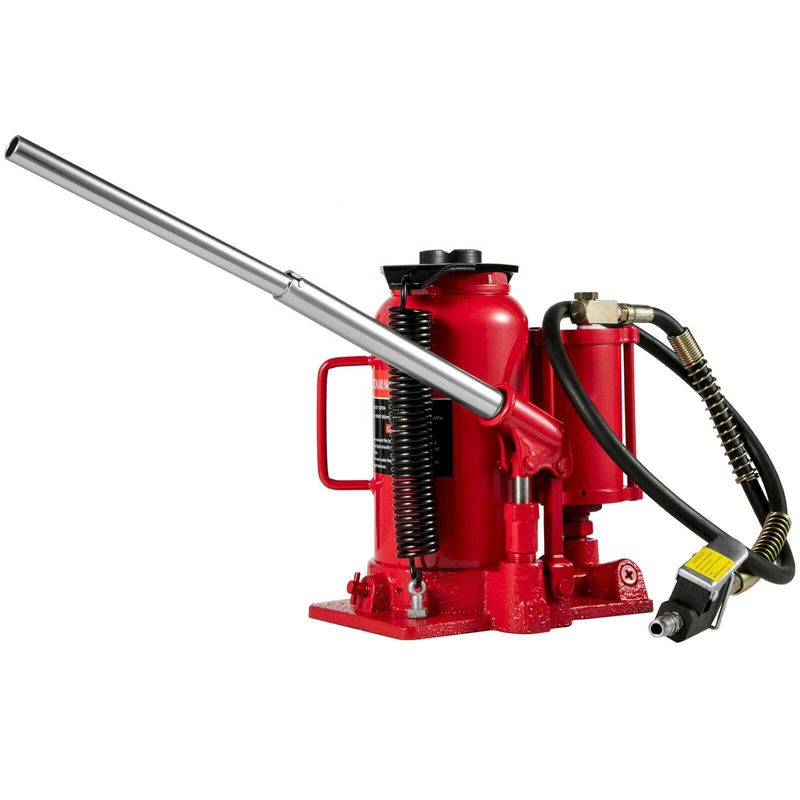

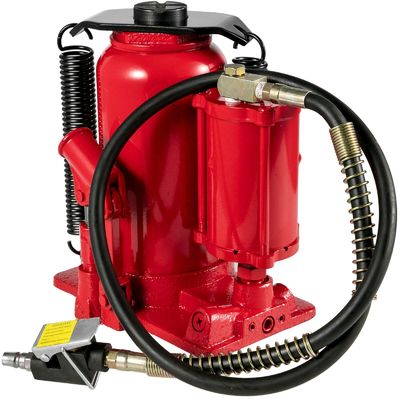

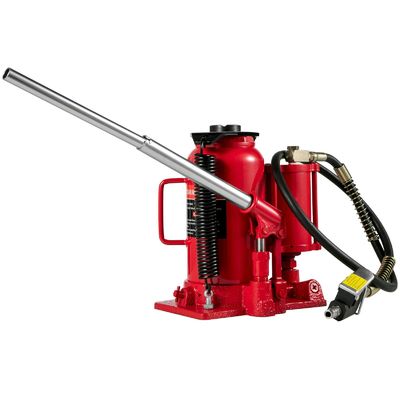

20 Ton Air Hydraulic Bottle Jack With Safety Overload Valve
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD15-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS/MONTH |
|
Detail Information |
|||
| Model No.: | YD15-001 | Name: | Air Hydraulic Bottle Jack Mechanical Tool |
|---|---|---|---|
| Capacity: | 20T | Material: | Steel |
| Type: | Air And Hydraulic | Color: | Red,blue, Customized Color Acceptable |
| MOQ: | 20 Pcs | Deliver Time: | 15 Days |
| Package: | Carton Box | Payment: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight. |
| High Light: | 20 Ton Air Hydraulic Bottle Jack,Steel Air Hydraulic Bottle Jack,Safety Overload Valve Air Bottle Jack |
||
Product Description
Red Color 20 Ton Air Hydraulic Bottle Jack With Ce Certificate
20Ton Pneumatic Hydraulic Bottle Jack With Ram Saddle
Pneumatic Hydraulic car jack is the ideal lifting tool for loads up to 20ton.
The car jack operates either hydraulic all by hand or pneumatically using compressed air.
The device is perfect for use in workshops, garages or any situation that requires a lot of strength.
Due to its compact size, it is ideal for portable use as well. On the other hand, its heavy construction ensures stability and reliability. The safety valve protects the jack against overloading. With this car jack, its easy to perform almost any lifting job.
Features:
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Manual or pneumatic operation for versatility
- Fitted with a safety overload valve for extra protection
- 2-piece manual lifting handle connects quickly making storage easier
- Dependable double spring return lowers piston-ram quickly with no load
Technical Specification:
| Model | Capacity | Min.H (mm) | Adjust H (mm) | Lifting H (mm) | Max.H (mm) | N.W (kg) |
| YD15-001 | 5 | 210 | 60 | 160 | 430 | 6 |
| YD15-002 | 12 | 250 | 80 | 150 | 480 | 12 |
| YD15-003 | 20 | 260 | 80 | 150 | 490 | 17 |
| YD15-004 | 32 | 260 | / | 155 | 415 | 21 |
| YD15-005 | 50 | 280 | / | 160 | 440 | 34 |
