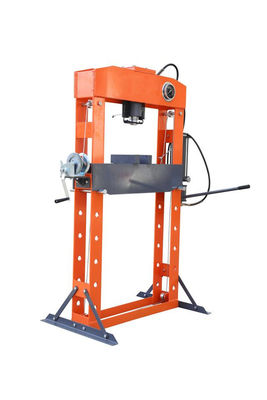

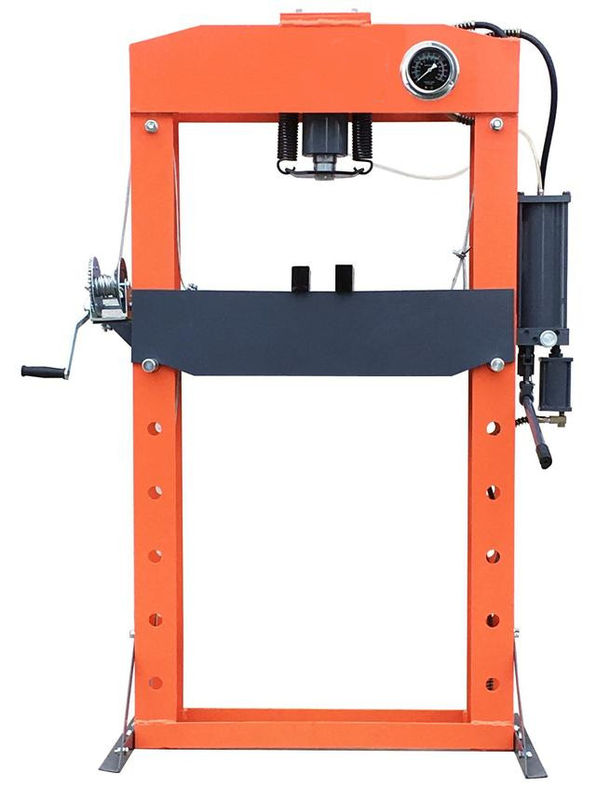

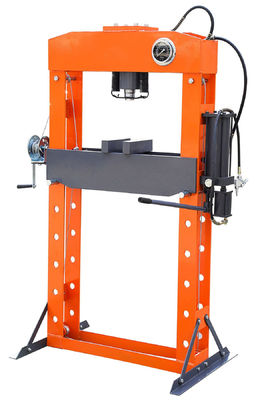

125 Psi Air Pressure 50 Ton Hydraulic Forging Press With Gauge
125 Psi Air Pressure 50 Ton Hydraulic Forging Press With Gauge
125 Psi Air Pressure 50 Ton Hydraulic Forging Press With Gauge
Brand Name
YEEDA
PRODUCT MODEL
YD06-013
certificate
CE
country of origin
Zhejiang , China
MOQ
20 PCS
payment method
T/T
Supply Capacity
300PCS/MONTH
Product Summary
Hydraulic 50 Tonne Shop Press With Pressure Gauge The 50-ton air/hydraulic shop press is commonly found in fabrication, welding, and machine shops. This air operated shop press features a 7.5” stroke, working range of up to 40”, and a working width of 27.5”. The press has a fully-welded steel plate ...
Product Details
Highlight:
50 Ton Hydraulic Forging Press
,Gauge 50 Ton Hydraulic Forging Press
,125 Psi 50 Ton Press
Applicable Industries:
Machinery Repair Shops, Vehicle Repair
Model No.:
YD06-013
Name:
75tonne Pneumatic/Hydraulic Workshop Press With Gague
Color:
Red,blue, Customized Color Acceptable
Surface Treatment:
Powder Coating
MOQ:
20 PCS
Delivery Time:
20 Days After Received Deposit
Packaging:
Crate
Payment Term:
T/T 30% Deposit, 70% Before Shipment
Test Video:
Provided
Certification:
CE
Warranty Of Core Components:
1 Year
After Warranty Service:
Video Technical Support, Online Support, Spare Parts
Product Description
Hydraulic 50 Tonne Shop Press With Pressure Gauge
The 50-ton air/hydraulic shop press is commonly found in fabrication, welding, and machine shops. This air operated shop press features a 7.5” stroke, working range of up to 40”, and a working width of 27.5”. The press has a fully-welded steel plate frame and uses industrial-grade hydraulic components to ensure long-lasting performance. A pully system makes lowering and raising the table of this shop an easy task, saving you from using your back when adjusting the table position. This press will easily handle your needs, whether you are removing gears, bushings, bearings, or straightening and stamping.
Specifications:
- Continuous force capacity: 50 tons
- Vertical working opening: up to 40”
- Working width: 27.5”
- Ram stroke: 7.5”
- Air pressure: 110~125 psi
- Operation mode: air and hand
- Air inlet: ¼” NPT
- Adjustable bed height
- Comes with 2 pressure plates
Packaging:
- Dimension: 37" x 10" x 75"
- Shipping weight: 485 lbs
