Powder Coating 75 Tonne Workshop Hydraulic Press With Pressure Gauge
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD06-014 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Packaging Details: | Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 300PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD06-014 |
|---|---|---|---|
| Name: | 75tonne Pneumatic/Hydraulic Workshop Press With Gague | Color: | Red,blue, Customized Color Acceptable |
| Surface Treatment: | Powder Coating | MOQ: | 20 PCS |
| Delivery Time: | 20 Days After Received Deposit | Packaging: | Crate |
| Payment Term: | T/T 30% Deposit, 70% Before Shipment | Test Video: | Provided |
| Certification: | CE | Warranty Of Core Components: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | ||
| High Light: | 75 Tonne Workshop Hydraulic Press,Powder Coating Workshop Hydraulic Press,Workshop Hydraulic Press With Pressure Gauge |
||
Product Description

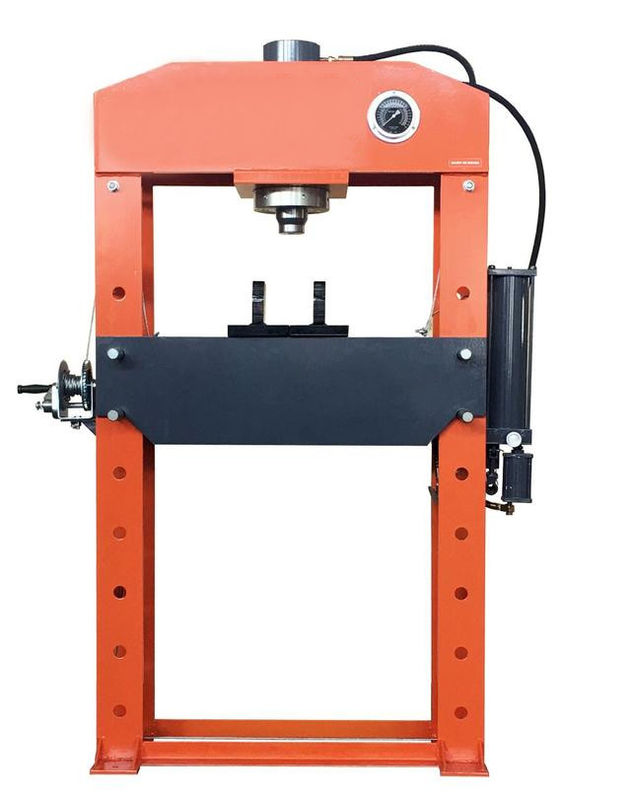

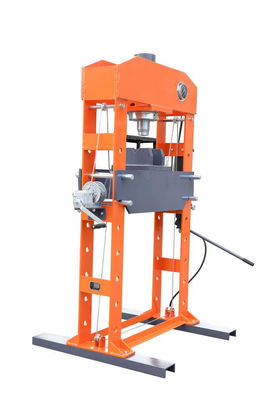

Hydraulic 75 Tonne Shop Press With Pressure Gauge

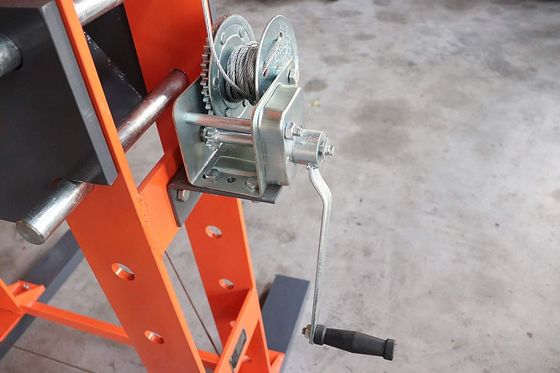

The 75-Ton Air/Hydraulic Shop Press is designed for bearing, bushing, straightening, bending as well as production metal and press work. Our press is made with a thick, fully-welded steel plate frame and uses industrial-grade hydraulic components to deliver the pressing power you need. It features a winch with a non-slip safety clutch for easy raising and lowering of the press bed.
Specifications:
- Continuous force capacity: 75 tons
- Vertical working opening: up to 42-1/2"
- Working width: 30’’
- Ram stroke: 10"
- Bed opening: 11-5/16"
- Cylinder bore: 5"
- Air pressure: 110-125 psi
- Overall dimensions: 39-3/4’’ x 39-3/4’’ x 75’’ (L x W x H)
Packaging:
- Dimension: 41-3/4" x 19" x 79-1/2"
- Shipping weight: 860 lbs
