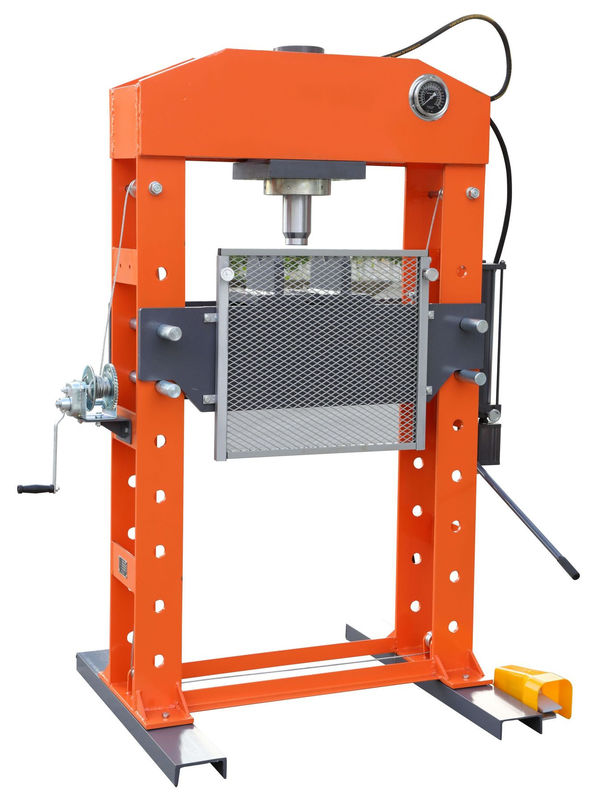

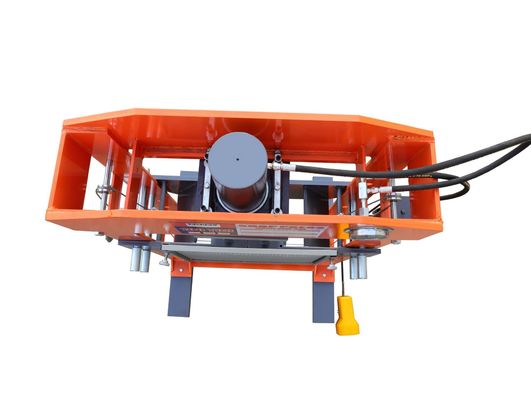

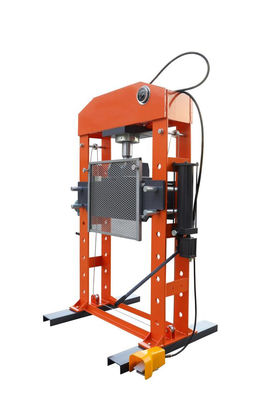

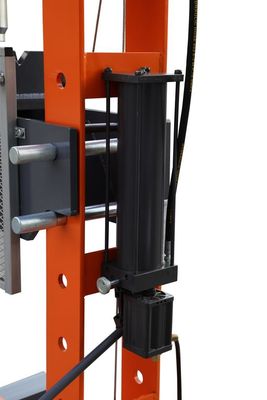

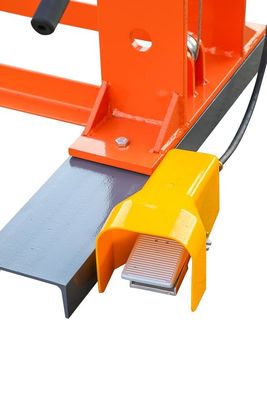

Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge

Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge
Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge

Large Image :  Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Model Number: YD06-015
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Packaging Details: Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 300PCS/MONTH
Detailed Product Description
Applicable Industries: Machinery Repair Shops, Vehicle Repair Model No.: YD06-015
Name: 100 Tonne Pneumatic/Hydraulic Workshop Press With Gague Color: Red,blue, Customized Color Acceptable
Surface Treatment: Powder Coating MOQ: 20 PCS
Delivery Time: 20 Days After Received Deposit Packaging: Crate
Payment Term: T/T 30% Deposit, 70% Before Shipment Test Video: Provided
Certification: CE Warranty Of Core Components: 1 Year
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Highlight:

Gauge 100 Ton Hydraulic Press Machine

,

CE 100 Ton Hydraulic Press Machine

,

Machinery Repair 100 ton hydraulic press

Heavy-Duty 100 Ton Hydraulic Shop Press



The 100-Ton Air/Hydraulic Shop Press is designed for bearing, bushing, straightening, bending as well as production metal and press work. Our press is made with a thick, fully-welded steel plate frame and uses industrial-grade hydraulic components to deliver the power to your project.


Specifications:

  • Continuous force capacity: 100 tons
  • Vertical working opening: up to 43-1/2’’
  • Working width: 32’’
  • Ram stroke: 11"
  • Side stroke: 9"
  • Bed opening: 11-3/4’’
  • Cylinder bore: 5’’
  • Air pressure: 110-125psi
  • Overall dimensions: 43’’ x 39-3-8’’ x 77’’ (L x W x H)

Packaging:

  • Dimension: 45" x 20" x 82"
  • Shipping weight: 1390 lbs

Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge 0Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge 1Machinery Repair Shops 100 Ton Hydraulic Press Machine With Pressure Gauge 2
