Heavy Duty Hydraulic 150 Tonne Shop Press With Pressure Gauge
Product Details
| Applicable Industries: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD06-016 |
|---|---|---|---|
| Name: | 150 Tonne Pneumatic/Hydraulic Workshop Press With Gague | Color: | Red,blue, Customized Color Acceptable |
| Surface Treatment: | Powder Coating | MOQ: | 20 PCS |
| Delivery Time: | 20 Days After Received Deposit | Packaging: | Crate |
| Payment Term: | T/T 30% Deposit, 70% Before Shipment | Test Video: | Provided |
| Certification: | CE | Warranty Of Core Components: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | ||
| Highlight |
150t Shop Press With Pressure Gauge,CE Shop Press With Pressure Gauge,150 Ton Hydraulic Shop Press |
||
Product Description

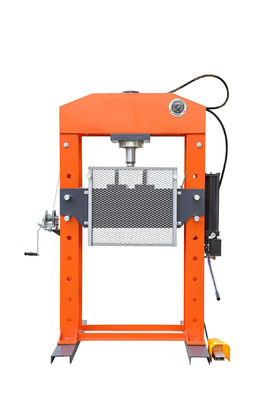

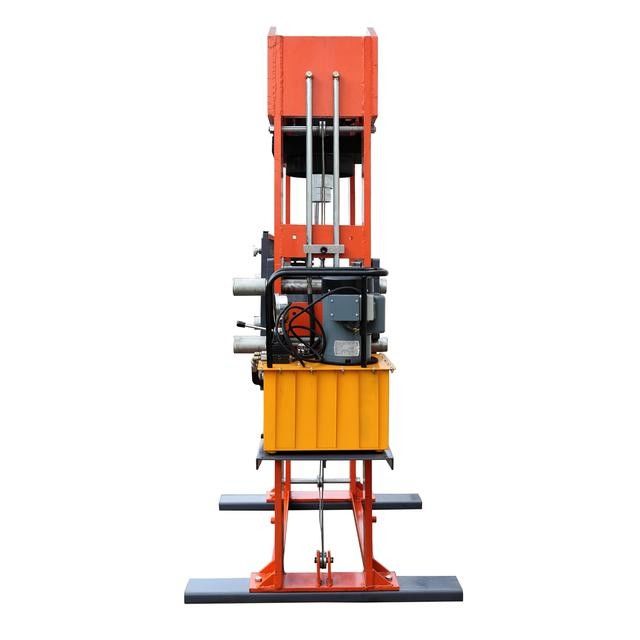

Heavy duty Hydraulic 150 Tonne Shop Press With Pressure Gauge
The Industrial 150-Ton Electric Hydraulic Shop Press is ideal for both commercial and home shops. This electric operated shop press features a 13.75” stroke, a sliding ram pressing head, a no-slip safety clutch and steel cable winch to make bed adjustments a breeze. With 150-Tons of pressure at its disposal this press will easily handle your needs, whether you are removing gears, bushings, bearings, or straightening and stamping.
Features:
- Heavy duty fully welded 1” x 6” steel H frame to add rigidity and durability
- Sliding ram pressing head offers multiple work positions (moves left and right)
- No-slip safety clutch and steel cable winch to move carriage bed
- Electric powered hydraulic pump for heavy pressing
- Ram fully extended travel time: 85 seconds
- Ram fully retracted travel time: 60 seconds
Specifications:
- Overall dimension: 78” x 40” x 83” (L x W x H)
- Frame internal width: 13-3/4”
- Frame internal length: 39-3/8”
- Ram stroke: 13-3/4”
- Ram diameter: 4-5/8”
- Ram left-right movement: 13”
- Ram pressing head diameter: 3-7/8”
- Grid guard: 36” x 23”
- Carriage bed workable opening: 34” x 16” (L x W)
- Carriage bed pin diameter: 2-3/16”
- Discharge pressure: 105-115%
- Max pump pressure: 8500 PSI
- Pressure gauge accurate to +/- 2.5%
- Maximum workpiece height allowed: 37”
- Hydraulic fluid for motor pump not included (ISO AW32 required)
Electric Motor:
- CSA approved motor: 115V 60Hz 2HP
- No-load speed: 1750 RPM
Packaging:
- Dimensions: 54” x 22” x 84”
- Shipping weight: 2700 lbs
