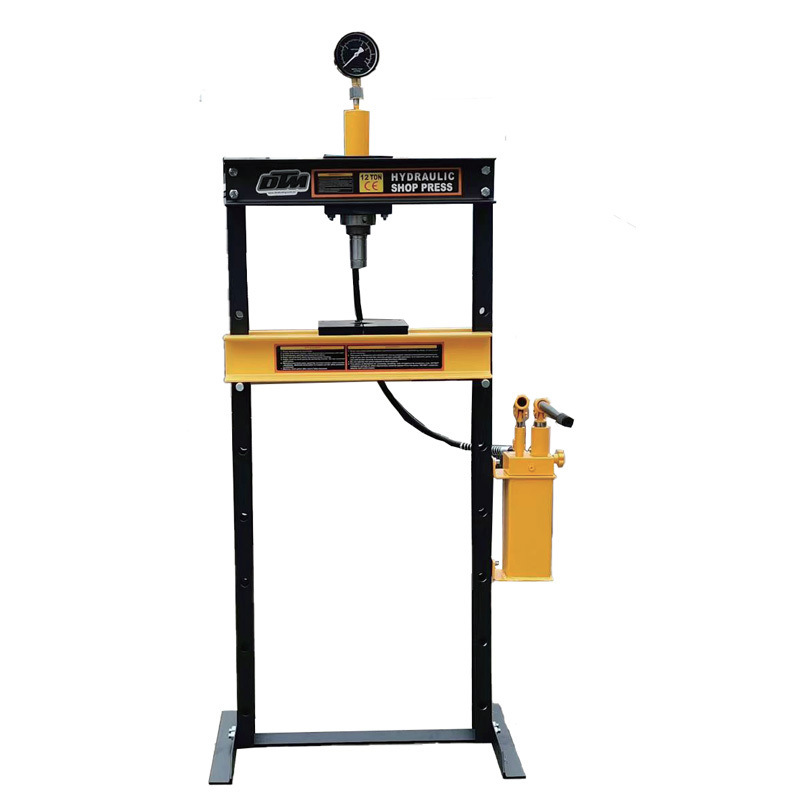

12-Tonne Hydraulic Floor Press Auto Heavy Part Repair + Accurate Oil Gauge

Large Image : 12-Tonne Hydraulic Floor Press Auto Heavy Part Repair + Accurate Oil Gauge

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD06-008

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$117.14
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	YD06-008	Product Type:	12-Tonne Hydraulic Floor Press
Holding Capacity:	26,400 Lb (12,000 Kg)	Min Height - Ram To Table:	3.35" (8.5 Cm); 38.78" (98.5 Cm)
Table Aperture:	3.22" (8.2 Cm)	Working Table Width:	15.55" (39.5 Cm)
Highlight:	12-tonne hydraulic floor press , heavy part repair press , hydraulic press with oil gauge

12-Tonne Hydraulic Floor Press Auto Heavy Part Repair + Accurate Oil Gauge

Product Specifications

Attribute	Value
Model	YD06-008
Product Type	12-Tonne Hydraulic Floor Press
Holding Capacity	26,400 lb (12,000 kg)
Min Height - Ram to Table	3.35" (8.5 cm); 38.78" (98.5 cm)
Table Aperture	3.22" (8.2 cm)
Working Table Width	15.55" (39.5 cm)

Product Details

The YD06-008 12-Tonne Hydraulic Floor Press is an industrial-grade heavy-duty pressing equipment designed for high-intensity processing scenarios. With high load-bearing capacity, strong power, and multi-position adjustment capabilities, it features a 12,000 kg rated holding capacity and hydraulic ram power system for stable high-intensity pressure output.

Core Features

Heavy-duty hydraulic ram power system with 12-tonne maximum pressing force
Oil-filled pressure gauge for real-time, accurate pressure monitoring
Multi-position adjustable worktable with height range from 3.35" to 38.78"
15.55" wide worktable accommodates large workpieces
3.22" table aperture for fixing parts or waste discharge
65" overall height for comfortable standing operation
Compact design with 63 kg gross weight for workshop mobility

Application Scenarios

Heavy Metal Processing: Bending and pressing operations for thick steel plates (15-25 mm) in machinery factories.

Heavy Machinery Maintenance: Disassembly and press-fitting of large bearings and bushings in mining equipment.

Automotive Component Repair: Straightening gearbox housings and drive axle components in auto shops.

Large Equipment Assembly: Alignment and fixing of machine tool racks and bases in manufacturing plants.

Frequently Asked Questions

Ram descends too fast when operating hand pump?

Check oil return valve tightness
Verify hydraulic oil viscosity (recommended 46# anti-wear)
Inspect and replace hand pump sealing ring if needed

Worktable slides down after adjustment?

Tighten or replace worktable locking bolts
Clean guide rail and positioning groove
Check and replace support spring if aged

Pressure gauge shows normal but actual pressure is insufficient?

Check for hydraulic pipeline leaks
Inspect ram-to-cylinder clearance
Calibrate pressure gauge

Difficult hand pump pressing after long idle period?

Check hydraulic oil condition
Bleed air from hand pump
Clean or replace oil suction filter
