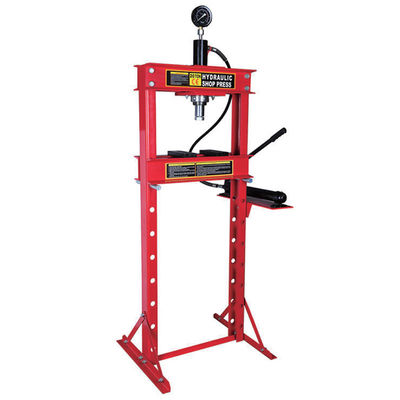

20-Tonne Hydraulic & Air Floor Press Large Bearing Press-Fit + 13cm Ram Stroke
Product Details
| Model: | YD06-010 | Product Type: | 20-Tonne Hydraulic & Air Floor Press |
|---|---|---|---|
| Holding Capacity: | 44,000 Lb (20,000 Kg) | Ram Stroke: | 5.12" (13 Cm) |
| Min Height - Ram To Table: | 1.77" (4.5 Cm); 35.82" (91 Cm) | Table Aperture: | 4.13" (10.5 Cm) |
| Highlight |
20-tonne hydraulic floor press,large bearing press-fit machine,hydraulic press with 13cm ram stroke |
||
Product Description
The YD06-010 20-Tonne Hydraulic & Air Floor Press is an industrial-grade, CE-certified high-pressure equipment designed for demanding applications. Combining hydraulic and pneumatic power systems, it delivers exceptional performance for heavy-duty pressing, assembly, and straightening operations.
- Dual Power System: Pneumatic pump for rapid positioning (60% faster than manual) with hydraulic manual handle for precise pressure control
- Heavy-Duty Construction: H-frame design with 20,000 kg capacity and excellent deformation resistance
- Versatile Work Area: Adjustable ram height (4.5-91 cm) with 13 cm stroke accommodates various workpiece sizes
- Large Work Surface: 45.5 cm wide table with 10.5 cm aperture for accessory mounting
- Stable Operation: 90 kg gross weight ensures stability during high-pressure applications
| Parameter Category | Parameter Name | Value |
|---|---|---|
| Basic Information | Model | YD06-010 |
| Basic Information | Certification | CE |
| Performance | Holding Capacity | 44,000 lb (20,000 kg) |
| Performance | Ram Stroke | 5.12" (13 cm) |
| Dimensions | Working Table Width | 17.9" (45.5 cm) |
| Dimensions | Overall Height | 65.74" (167 cm) |
| Weight | Gross Weight | 198 lb (90 kg) |
- Heavy Machinery: Press forming of thick steel plates (25-40 mm) for equipment frames and bases
- Automotive Repair: Straightening of chassis components and suspension systems
- Bearing Installation: Press-fitting of large bearings (>100 mm diameter) with interference fit
- Precision Calibration: Restoration of large molds and machine tool guide rails
- Verify air pressure (0.6-0.8 MPa required)
- Inspect for air leaks or blockages in pneumatic lines
- Check pneumatic pump piston seals for wear
- Check hydraulic oil level and top up if needed
- Inspect hydraulic system for leaks
- Examine manual pressure valve for wear
- Clean and lubricate ram guide rails
- Adjust ram-to-cylinder clearance (0.05-0.1 mm ideal)
- Bleed air from hydraulic system
- Tighten all frame connecting bolts
- Check for wear at frame/table connection
- Ensure equipment is level using adjustment gaskets
