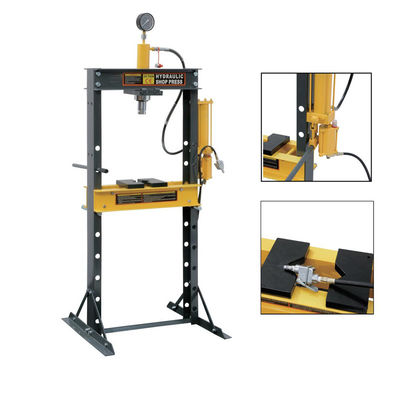

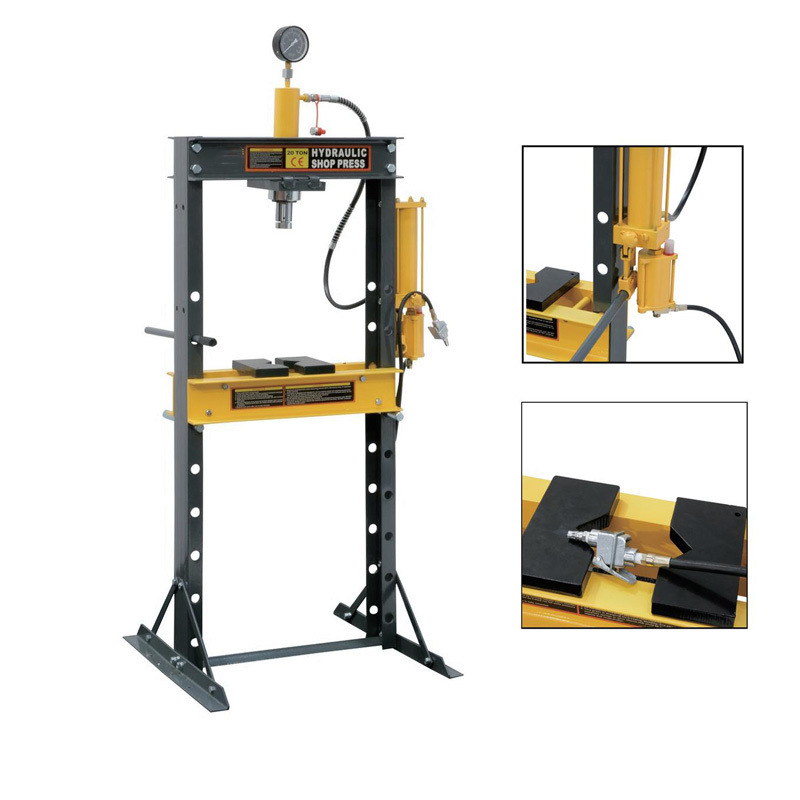

12-Tonne Hydraulic Floor Press Auto Heavy Part Repair + Accurate Oil Gauge
Product Details
| Model: | YD06-011 | Product Type: | 20-Ton Air/Hydraulic Press (20 TON AIR/HYDRAULIC PRESS WITH GAUGE) |
|---|---|---|---|
| Capacity: | 20 Tons | Cylinder Stroke: | 120mm |
| Bed Width: | 490mm | Shipping Weight: | 90kgs |
| Highlight |
12-tonne hydraulic floor press,heavy part repair press,hydraulic press with oil gauge |
||
Product Description
| Attribute | Value |
|---|---|
| Model | YD06-011 |
| Product Type | 20-Ton Air/Hydraulic Press (20 TON AIR/HYDRAULIC PRESS WITH GAUGE) |
| Capacity | 20 Tons |
| Cylinder Stroke | 120mm |
| Bed Width | 490mm |
| Shipping Weight | 90kgs |
- 20-ton rated capacity for handling metal plates (20-35mm thick) and heavy mechanical accessories
- Air-hydraulic linkage system combines pneumatic speed with hydraulic precision
- Standard pressure gauge for real-time pressure monitoring and control
- Adjustable working range of 100-970mm for diverse workpiece sizes
- 490mm-wide worktable provides ample operating space
- Durable construction with neat air/hydraulic pipeline layout for easy maintenance
Precision press-fitting of gearbox bearings, drive axle bushings, and other components with real-time pressure monitoring to prevent damage.
Bending, flanging, and shaping of steel plates (20-35mm thick) into mechanical brackets and equipment guardrails.
Straightening and repair of deformed components in agricultural and construction machinery.
Press-fitting assembly of large hardware frames and steel structure connectors with controlled pressure application.
- Check air source connection and pressure (0.6-0.8MPa required)
- Inspect pneumatic switch functionality
- Clean or replace air inlet filter if blocked
- Ensure clean, tight contact between ram and workpiece
- Verify worktable is level using a spirit level
- Replace hydraulic oil if contaminated or degraded
- Tighten base bolts and use anti-slip pads if needed
- Lubricate ram guide rails with lithium-based grease
- Center workpiece on worktable for balanced force distribution
- Maintain proper hydraulic oil level
- Clear any hydraulic pipeline blockages
- Replace aged cylinder seal rings if necessary
