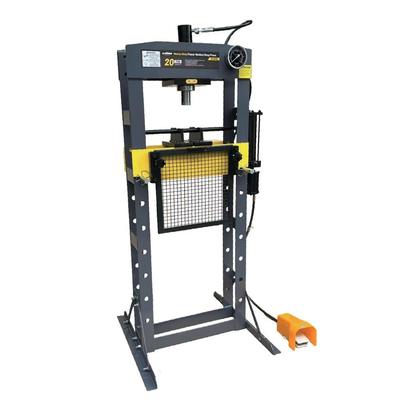

20-Ton Frame Welded Shop Press Bearing Press-Fit, 125kg N.W. + Liquid Gauge
Product Details
| Model: | YD06-012 | Product Type: | 20-Ton Frame Welded Shop Press |
|---|---|---|---|
| Capacity: | 20 Tons (TON) | Cylinder Travel Stroke: | 6.3" (160mm) |
| Packing Size: | 70.8×31.8×13.3" (1800×810×340mm) | Net Weight (N.W.): | 275 LB (125 KGS) |
| Highlight |
20-ton hydraulic shop press,welded frame bearing press-fit,hydraulic press with liquid gauge |
||
Product Description
The YD06-012 20-Ton Frame Welded Shop Press is an industrial-grade heavy-duty device designed for medium-to-heavy processing and maintenance scenarios. Its welded frame structure, side-movable press head, and comprehensive safety configurations make it ideal for heavy machinery factories, large auto repair shops, and steel structure processing plants.
- High Rigidity Frame: Integral welding process increases machine body rigidity by 40% with excellent deformation resistance
- Precision Pressure Control: Liquid-filled pressure gauge with ±2% reading error for accurate force monitoring
- Adjustable Press Head: Side-movable design improves operational efficiency by 30% for various workpiece sizes
- Safety Components: Includes protective guard, combination V-block, self-lock winch for secure operations
- Stable Construction: 140kg gross weight ensures stability during long-term use at fixed workstations
Bending and shaping of thick steel plates (25-40mm thick) and short I-beam sections. The welded frame withstands high pressure without deformation, while the side-movable press head adapts to processing at different positions.
Straightening and repairing deformed components such as automobile chassis longitudinal beams and suspension arms. The self-lock winch assists in handling to avoid component damage.
Interference fit assembly of heavy bearings (120mm+ diameter). The 160mm cylinder stroke adapts to installation requirements of different depths.
Shaping heavy components such as gearbox housings and drive axle housings. The high rigidity frame repairs deformation while maintaining sealing performance.
| Parameter Category | Parameter Name | Value |
|---|---|---|
| Basic Information | Model | YD06-012 |
| Performance | Capacity | 20 Tons (TON) |
| Performance | Cylinder Travel Stroke | 6.3" (160mm) |
| Dimensions | Overall Size (H*W*D) | 65.5*32.3*29.5" (1665*820*750mm) |
| Dimensions | Packing Size | 70.8*31.8*13.3" (1800*810*340mm) |
| Weight | Net Weight (N.W.) | 275 LB (125 KGS) |
| Weight | Gross Weight (G.W.) | 308 LB (140 KGS) |
- Clean guide rail surface of impurities or oil stains
- Apply lithium-based grease to sliding parts
- Check and tighten fastening bolts
- Allow equipment to rest if affected by vibration
- Check for leaks in connecting pipeline
- Replace gauge if used over 1 year
- Check and replace worn brake pads
- Inspect wire rope for damage
- Verify brake spring tension
- Inspect for cracks in welded parts
- Tighten frame-to-worktable bolts
- Ensure workpiece is centered
