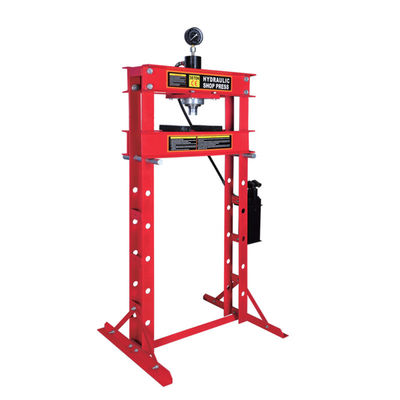

30T Hydraulic Shop Press with double pumpand gauge Auto Bearing Press-Fit + Gauge
30T Hydraulic Shop Press with double pumpand gauge Auto Bearing Press-Fit + Gauge
30T Hydraulic Shop Press with double pumpand gauge Auto Bearing Press-Fit + Gauge
Brand Name
YEEDA
PRODUCT MODEL
YD06-013
certificate
CE
country of origin
Zhejiang，China
MOQ
50pcs
unit price
$173
payment method
T/T
Supply Capacity
500PCS/MONTH
Product Summary
30T Hydraulic Shop Press with Double Pump and Gauge Auto Bearing Press-Fit + Gauge Product Overview The YD06-013 30-Ton Hydraulic Shop Press is an industrial-grade hydraulic device featuring efficient dual drive, wide-range operation, and precise pressure control. Designed for medium-to-heavy ...
Product Details
Highlight:
30T hydraulic shop press
,double pump hydraulic press
,bearing press-fit hydraulic press
Model No.:
YD06-013
Capacity:
30 Ton
Width (Worktable Width):
650mm
N.W./G.W. (Net Weight/Gross Weight):
128kg/132kg
Packing Size:
1550×350×185mm
Working Range:
120-1070mm (Note: Refers To The Adjustable Vertical Working Distance Between The Ram And The Worktable)
Product Description
30T Hydraulic Shop Press with Double Pump and Gauge Auto Bearing Press-Fit + Gauge
Product Overview
The YD06-013 30-Ton Hydraulic Shop Press is an industrial-grade hydraulic device featuring efficient dual drive, wide-range operation, and precise pressure control. Designed for medium-to-heavy workpiece processing and maintenance, it excels in applications requiring high efficiency and pressure accuracy.
Key Features
- 30-ton capacity - Handles thick steel plates (30-50mm) and heavy mechanical components with ease
- Dual-pump system - Fast stroke for rapid positioning (60% efficiency increase) and slow stroke for precise pressure application
- Wide 120-1070mm working range - Accommodates both small precision workpieces and extra-large components
- 650mm worktable - Provides stable operating space for large workpieces
- Pressure gauge - Clear real-time pressure monitoring for precise control
- Durable steel construction - Neat hydraulic pipeline layout for easy maintenance
Technical Specifications
| Parameter Category | Parameter Name | Value |
|---|---|---|
| Basic Information | Model No. | YD06-013 |
| Performance | Capacity | 30 Ton |
| Performance | Working Range | 120-1070mm |
| Dimensions | Worktable Width | 650mm |
| Weight | N.W./G.W. | 128kg/132kg |
| Logistics | Qty/20'GP | 180pcs |
Applications
Heavy Construction Machinery Component Straightening
Repair deformed connecting rods and frame crossbeams for excavators and loaders. The 30-ton capacity ensures mechanical properties meet standards while avoiding component damage.
Thick Steel Plate Shaping
Bend and shape 30-50mm thick steel plates for equipment bases and structural brackets. Dual-pump system enables both rapid alignment and precise pressure application.
Heavy Auto Component Press-Fitting
Install large-sized bearings for truck and bus gearboxes. Pressure gauge monitoring prevents overpressure damage while ensuring fitting accuracy.
Large Agricultural Machinery Disassembly
Remove aging components from tractors and harvesters. Dual-pump control allows for safe separation of fitted components without damage.
Troubleshooting
Dual Pump Switching Issues
- Check for switching valve blockages and clean with hydraulic oil
- Verify hydraulic oil level and quality - replace if contaminated
- Inspect pump connecting pipelines for leaks or looseness
Workpiece Deformation Problems
- Ensure worktable is level using adjustment gaskets
- Properly secure workpiece with appropriate tooling
- Check slow-pump pressure stability for consistent output
Hydraulic System Overheating
- Maintain proper hydraulic oil level
- Clean heat dissipation components regularly
- Avoid continuous full-load operation exceeding 3 hours
No Pressure Output
- Vent hydraulic system completely
- Verify correct motor rotation direction
- Check and clean hydraulic pump oil inlet filter
