30Ton Euro-Detachable Press Metal Straightening, 610mm Bed + Gauge
Product Details
| Model No.: | YD06-014 | Capacity: | 30 TON |
|---|---|---|---|
| Cylinder Stroke: | 160mm | Working Range: | 100-950mm |
| Bed Width: | 610mm | Shipping Weight: | 133kgs |
| Highlight |
30Ton Euro-Detachable Hydraulic Press,Metal Straightening Hydraulic Press,610mm Bed Hydraulic Press with Gauge |
||
Product Description

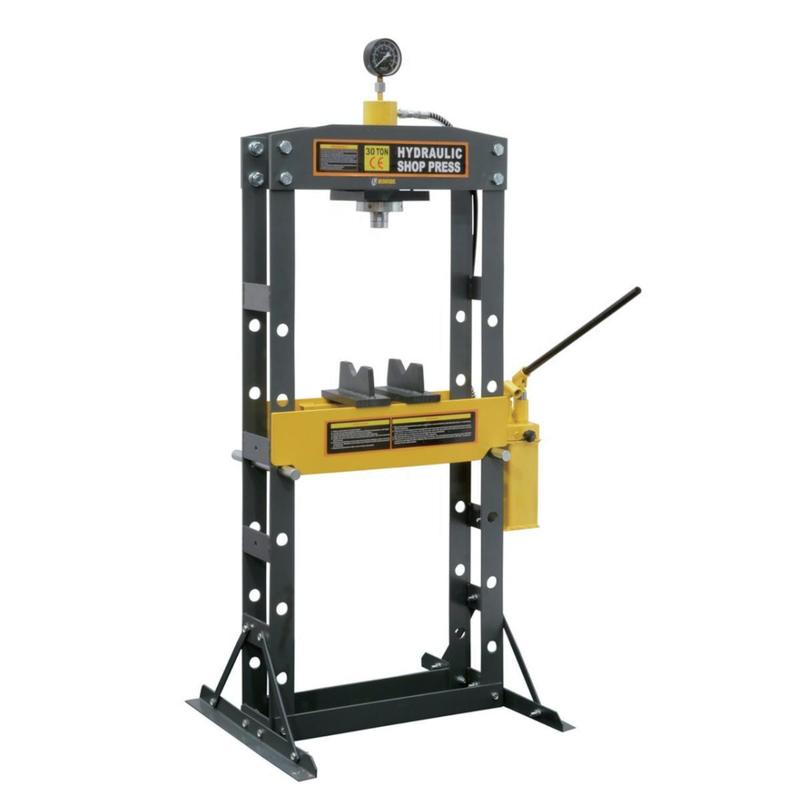

The YD06-014 30 Ton Euro-Detachable Hydraulic Shop Press with Gauge is an industrial-grade device featuring European-style design, heavy-duty load-bearing capacity, and precise pressure control. Designed for small-to-medium workshops with space constraints, this press excels in operations like bearing press-fitting, metal straightening, and workpiece shaping.
- Modular Design: Frame disassembles into 4-5 modules (max 50kg each) for easy transport and assembly
- 30-Ton Capacity: Handles 25-45mm thick steel plates and bearings up to 150mm diameter
- Precision Control: ±1.5% accuracy pressure gauge for real-time monitoring
- 610mm Worktable: Sandblasted steel surface with T-slots for fixture mounting
- Safety Features: Double protection with one-way valve and overflow valve
| Parameter Category | Parameter Name | Value | Description |
|---|---|---|---|
| Basic Information | Model No. | YD06-014 | Unique product identifier |
| Performance | Capacity | 30 TON | Stable output for medium-to-heavy workpieces |
| Performance | Cylinder Stroke | 160mm | Maximum vertical movement distance |
| Performance | Working Range | 100-950mm | Adjustable for different workpiece heights |
| Dimensions | Bed Width | 610mm | Horizontal load-bearing width |
- Auto Repair: Press-fitting gearbox and wheel hub bearings (100-950mm adjustable range)
- Metal Fabrication: Bending 25-45mm steel plates with T-slot positioning
- Agricultural Maintenance: Straightening tractor components in field conditions
- Export Ready: Compact shipping (133kg) meets EU CE standards
- Check hydraulic oil level (minimum scale line)
- Inspect all pipeline connections for leaks
- Release system air through exhaust valve
- Tighten pressure gauge interface (avoid thread damage)
- Check for air in hydraulic oil (let stand 30 minutes)
- Replace damaged gauge with original equipment
- Evenly tighten connecting bolts (30-35N*m torque)
- Adjust non-slip foot pads with level
- Check column verticality with plumb bob
