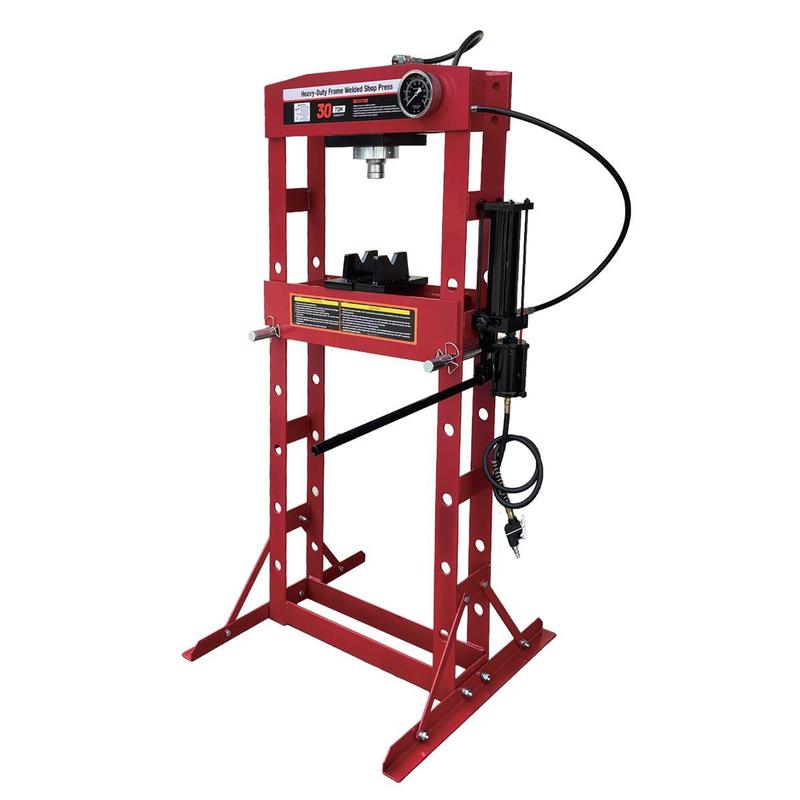

30Ton Pneumatic-Hydraulic Shop PressBushing Press-Fit, 66,000LB Capacity + Gauge
Product Details
| Model No.: | YD06-015 | Product Type: | 30TON Pneumatic/Hydraulic Shop Press |
|---|---|---|---|
| Holding Capacity: | 66,000LB (30,000kg) | Cylinder Travel Stroke: | 6.3” (160mm) |
| Product Overall Size (HxWxD): | 65.5”x32.3”x29.5” (1665x820x750mm) | Package Size: | 70.8”×31.8”×13.3” (1800x810×340mm) |
| Highlight |
30Ton pneumatic hydraulic shop press,hydraulic press with gauge,66000LB capacity bushing press-fit |
||
Product Description
The YD06-015 30TON Pneumatic/Hydraulic Shop Press is an industrial-grade equipment designed for high load-bearing capacity, flexibility, and precise pressure control. Ideal for mechanical maintenance and hardware processing, it combines pneumatic drive efficiency with hydraulic transmission stability.
- Structural Strength: Welded frame design with flaw detection testing increases load-bearing strength by 30%
- Operational Flexibility: Side-movable press head with full workbench adjustment range improves efficiency by 40%
- Pressure Control: Liquid-filled pressure gauge with ±1% accuracy prevents workpiece damage
| Parameter Category | Parameter Name | Specific Value | Description |
|---|---|---|---|
| Basic Information | Model No. | YD06-015 | Unique product identifier |
| Performance Parameter | Holding Capacity | 66,000LB (30,000kg) | Stable 30-ton pressure for gear/bearing operations |
| Performance Parameter | Cylinder Travel Stroke | 6.3" (160mm) | Maximum vertical movement distance |
| Core Configuration | Standard Components | Welded frame, movable press head, pressure gauge | Ready for immediate operation |
- Auto Gearbox Maintenance: Gear replacement with 15-25 ton recommended pressure
- Bushing Press-Fitting: Precise installation for motors and reducers
- Agricultural Machinery: Drive axle bearing maintenance with 6.3" stroke
- Metal Shaping: Bending 30-50mm steel plates with consistent results
- Clean guide rail and apply lithium-based grease
- Check side-movement drive mechanism bolts (25-30N*m torque)
- Verify pneumatic system pressure (0.6-0.8MPa)
- Reduce equipment vibration with shock-absorbing pads
- Vent air from liquid-filled pressure gauge
- Replace gauge if deviation persists (0-40 ton range recommended)
- Clean/replace air inlet filter
- Check hydraulic oil level and quality (46# anti-wear recommended)
- Inspect boosting valve for wear
