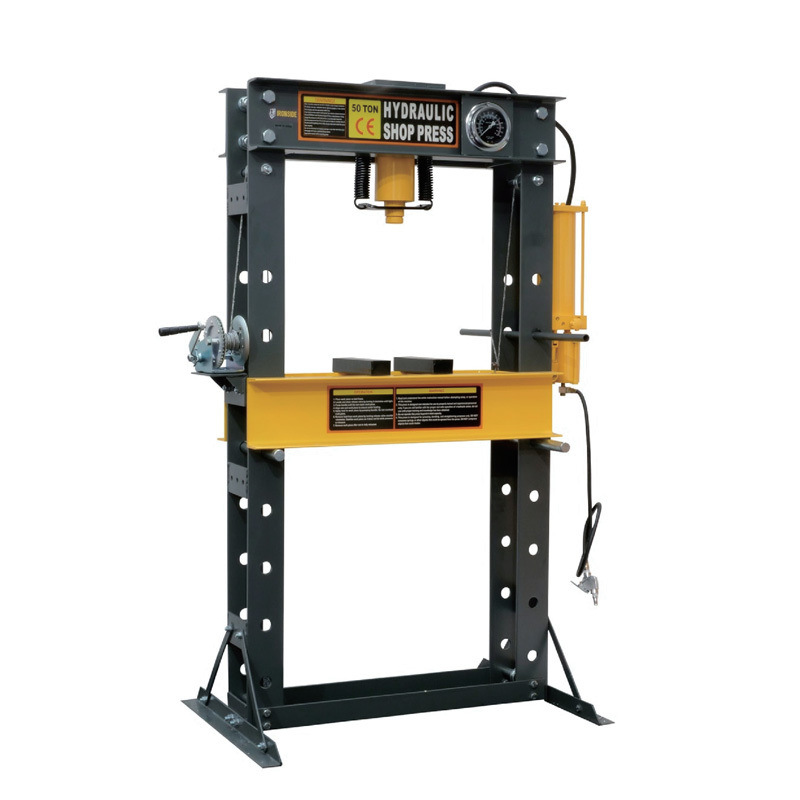

50 TONHYDRAULIC &AIR SHOP PRESS WTH GAUGE, 200mm Stroke + 690mm Bed
Product Details
| Model No.: | YD06-017 | Product Type: | 50 Ton Hydraulic & Air Shop Press With Gauge |
|---|---|---|---|
| Cylinder Stroke: | 200mm | Machine Size: | 430×920×1680mm |
| N.W./G.W. (Net Weight/Gross Weight): | 225/255KG | Packing Size: | 460×950×1750mm |
| Highlight |
50 ton hydraulic shop press,hydraulic press with gauge,workshop press 200mm stroke |
||
Product Description
The YD06-017 50 Ton Hydraulic & Air Shop Press with Gauge is an industrial-grade equipment designed for heavy machinery processing and large-component maintenance. It combines fast pneumatic drive with stable hydraulic pressure boosting, featuring a 50-ton rated capacity and extra-wide worktable for operations like heavy bearing press-fitting, thick steel plate shaping, and straightening of large mechanical components.
- Heavy-Duty Performance: 50-ton capacity with 200mm cylinder stroke handles bending of 50-80mm thick steel plates
- Dual-Drive Efficiency: Pneumatic system for fast positioning (+50% efficiency) and hydraulic system for stable pressure (±2% accuracy)
- Structural Stability: Welded thick steel frame with 690mm-wide worktable (800kg capacity) prevents workpiece displacement
- Safety Compliance: CE-certified with emergency stop button, overload protection valve, and protective fencing
| Parameter Category | Parameter Name | Value | Description |
|---|---|---|---|
| Basic Information | Model No. | YD06-017 | Unique product identifier |
| Performance | Capacity | 50 TON | Stable output for heavy-duty processing |
| Performance | Working Range | 0-690mm | Adjustable ram-to-worktable distance |
| Dimensions | Bed Width | 690mm | Horizontal load-bearing width |
| Core Configuration | Standard Components | Hydraulic & air dual-drive system, pressure gauge, hydraulic cylinder, CE-certified safety parts | |
- Heavy Construction Machinery: Straightening deformed frames and large connecting rods (35-45 tons recommended pressure)
- Thick Steel Plate Shaping: Bending 50-80mm steel plates into structural parts with precise angle control
- Heavy-Duty Auto Repair: Press-fitting large wheel hub bearings (200mm+ diameter) with 30-40 tons pressure
- Agricultural Machinery: Disassembling heavy components like gearboxes and engine blocks
- Check air compressor pressure (0.6-0.8MPa required)
- Inspect pneumatic pipeline for blockages/leaks
- Test solenoid valve function and replace if faulty
- Verify worktable levelness (≤0.2mm error)
- Ensure steel plate is firmly fixed with proper fixtures
- Check hydraulic system pressure stability
- Confirm workpiece doesn't exceed 50-ton capacity
- Recalibrate overload protection valve to 55 tons
- Replace hydraulic oil if viscosity is high
