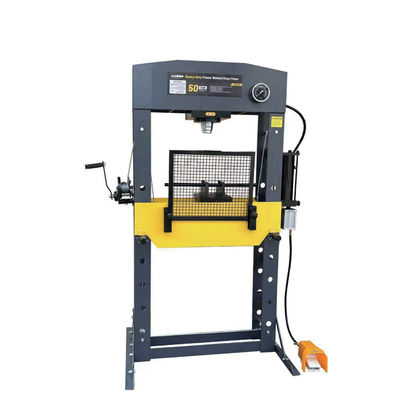

50Ton Frame Welded Press Thick Steel Shaping, 50Ton Capacity + Liquid Gauge
Product Details
| Model No.: | YD06-018 | Product Type: | 50T Frame Welded Shop Press |
|---|---|---|---|
| Cylinder Movement (Side-to-Side): | 3.5” (89mm) | Product Overall Size (HxWxD): | 74"x58.7"x31.5” (1879x1491x800mm) |
| N.W./G.W. (Net Weight/Gross Weight): | 572LB (260KGS)/616LB (280KGS) | Packing Size: | 77.16"x40.94"x14.96” |
| Highlight |
50Ton hydraulic press with liquid gauge,welded steel frame hydraulic press,workshop hydraulic press 50Ton capacity |
||
Product Description
| Attribute | Value |
|---|---|
| Model No. | YD06-018 |
| Product Type | 50T Frame Welded Shop Press |
| Cylinder Movement (Side-to-Side) | 3.5" (89mm) |
| Product Overall Size (HxWxD) | 74"x58.7"x31.5" (1879x1491x800mm) |
| N.W./G.W. (Net Weight/Gross Weight) | 572LB (260KGS)/616LB (280KGS) |
| Packing Size | 77.16"x40.94"x14.96" |
The YD06-018 50T Frame Welded Shop Press is a heavy-duty industrial equipment designed for heavy machinery maintenance, large-scale hardware processing, and thick steel plate shaping. Its welded reinforced frame provides exceptional structural strength, while the side-movable press head and multiple safety components ensure flexible and safe operation.
- Structural Strength: Fully welded frame design with X-ray flaw detection, 50% higher anti-deformation capacity than bolted frames
- Safety Protection: Includes protective guards, combination blocks, and self-lock winches (500kg capacity)
- Operational Flexibility: 3.5" (89mm) horizontal press head movement improves efficiency by 40%
- Pressure Control Precision: Liquid-filled pressure gauge with ±1.2% accuracy for real-time monitoring
- High-temperature spray coating for oil and rust resistance
- Press head guide rail with long-acting grease coating
- Ground fixing holes for enhanced stability during heavy-duty operations
Straightens deformed drive axles of excavators and loaders using 35-45 tons of stable pressure with real-time pressure monitoring.
Bends high-strength steel plates (60-100mm thickness) into structural components with precise angle control.
Press-fits bearings (>200mm diameter) with 25-35 tons of pressure for tight, secure installations.
Separates aging components using 50 tons of pressure with assisted handling for reduced labor.
- Clean guide rail and apply lithium-based grease
- Check and tighten press head drive mechanism bolts (30-35N*m torque)
- Verify hydraulic oil level and replenish if low
- Clean dial with alcohol if contaminated
- Add vibration dampening if liquid is turbid
- Tighten connection interface and replace gaskets if leaking
- Inspect and replace worn wire rope if needed
- Check brake pads (replace if <3mm thickness)
- Verify workpiece doesn't exceed 500kg capacity
- Secure equipment with M16 expansion bolts
- Inspect for weld cracks and contact manufacturer if found
- Ensure workpiece is centered on worktable
Product Highlights
