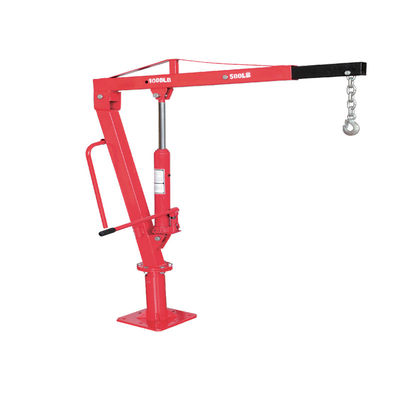

360° Stationary Rotating Swivel Boom forAuto Shop Use, 4 Lifting Gears + Hydraulic Pump

Large Image : 360° Stationary Rotating Swivel Boom forAuto Shop Use, 4 Lifting Gears + Hydraulic Pump

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD01-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$72
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Capacity:	450kg (1000 Lbs)	Min Lifting Radius:	930mm (36.6")
Max Lifting Radius:	1295mm (51")	Base Size:	270mm×270mm (10.6"×10.6")
Max Lifting Height:	2015mm (79.3")	Component Weight 1:	13kg (with Packaging: 33×32×31cm)
Highlight:	360° rotating swivel boom for auto shop , hydraulic swivel boom with lifting gears , workshop hydraulic pump boom

360° Stationary Rotating Swivel Boom for Auto Shop Use, 4 Lifting Gears + Hydraulic Pump

Product Specifications

360° Stationary Rotating Swivel Boom (Pick-Up Truck Mount Crane)

Parameter Category	1000 lbs Model (450kg)	2000 lbs Model (900kg)	Description
Basic Info	Pick-Up Truck Mounted Crane	Pick-Up Truck Mounted Crane	Compatible with pickup trucks, used for outdoor cargo lifting
Basic Info	Truck Accessory	Truck Accessory	Can be directly installed in the pickup truck bed without additional modifications
Performance Parameter	450kg (1000 lbs)	900kg (2000 lbs)	Maximum safe lifting weight; over-range operation is prohibited
Performance Parameter	930mm (36.6")	930mm (36.6")	Distance from the closest lifting point of the boom to the center of the base
Performance Parameter	1295mm (51")	1295mm (51")	Distance from the farthest lifting point of the boom to the center of the base
Performance Parameter	2015mm (79.3")	1800mm (70.8")	Maximum lifting height of the boom, determining the upper limit of cargo elevation
Structural Parameter	270mm270mm (10.6"10.6")	270mm270mm (10.6"10.6")	Size of the fixed base, ensuring installation stability
Structural Parameter	/	1355mm	Exclusive to the 2000 lbs model; saves storage space after folding
Weight Parameter	13kg (with packaging: 333231cm)	14kg (with packaging: 343332cm)	Weight of small components, easy for single-person handling
Weight Parameter	36kg (with packaging: 1113218cm)	36kg (with packaging: 1133218cm)	Weight of the main structure, requiring two-person collaborative handling

Foldable Engine Crane

Parameter Category	1 Tonne (1000kg) Standard Model	1 Tonne (1000kg) Hydraulic Model	Description
Basic Info	Foldable Engine Crane	Foldable Engine Crane	Used for lifting and moving engines and heavy components
Basic Info	/	Single Piston Hydraulic Pump	The hydraulic model is driven by hydraulics, saving effort and enabling precise speed control
Performance Parameter	1000kg (2222 lbs)	1000kg (1 tonne)	Supports multi-gear load adjustment, compatible with components of different weights
Performance Parameter	/	250kg; 500kg; 750kg; 1000kg	The hydraulic model has 4 preset load gears, switchable on demand to avoid overloading
Dimension Parameter	1470mm (57.8")	1500mm	Height of the main equipment, affecting the space required for lifting operations
Dimension Parameter	1520mm (59.8")	1450mm	Front-back span of the frame, determining stability and operation range
Dimension Parameter	978mm (38.5") (outer width); 850mm (33.5") (inner width)	1000mm	Outer width affects storage space; inner width is compatible with component sizes
Dimension Parameter	/	Distance between front wheel centers: 800mm; Distance between rear wheel centers: 540mm	Wheelbase design of the hydraulic model enhances movement stability
Weight Parameter	76kg (packaged in plywood case: 1423836cm)	71kg (Component 1: 16kg, packaging: 713516cm; Component 2: 55kg, packaging: 1403020cm)	The hydraulic model is packaged in components for easy transportation and assembly

Product Details

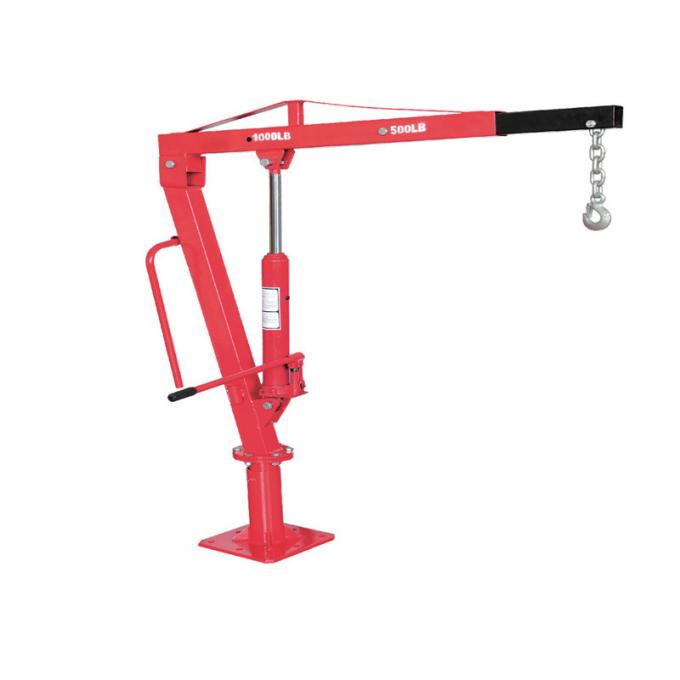

360° Stationary Rotating Swivel Boom

This outdoor lifting accessory is specifically designed for pickup trucks, featuring 360° rotation and lightweight installation. The boom can achieve full rotation without moving the vehicle, making it ideal for outdoor cargo transfer and equipment maintenance. The standard 270mm*270mm base can be directly fixed to the pickup truck bed with bolts, requiring no welding or in-depth vehicle modifications (installation time ≤30 minutes).

1000 lbs (450kg) Model: Focuses on flexibility and portability (total weight: 49kg), with a maximum lifting height of 2015mm for small/medium cargo
2000 lbs (900kg) Model: Designed for heavy-duty operations, featuring 900kg capacity and foldable design (folded height: 1355mm) for space-saving storage

Constructed from high-strength steel with anti-rust spray coating, the boom features wear-resistant bearings for smooth rotation and includes a limit device to prevent over-rotation. The base offers multiple mounting holes for compatibility with various pickup truck brands.

Foldable Engine Crane

This workshop/outdoor tool specializes in heavy component handling with space-saving design. Available in standard and hydraulic models, it efficiently lifts/moves heavy components (500-1000kg) like engines and gearboxes. The hydraulic model's single-piston pump reduces operating force by 66% and offers 4 preset load gears for precise control.

Folding Design: Saves 60% storage space compared to fixed cranes - standard model ships in plywood case; hydraulic model disassembles for compact storage
Safety Features: Both models include overload protection; hydraulic version adds pressure relief valve to prevent component damage
Mobility: Hydraulic model features anti-slip rubber tires for stable movement on concrete or dirt surfaces

Application Scenarios

360° Stationary Rotating Swivel Boom

Agricultural Machinery Maintenance: Lift tractor/harvester components (450kg max) with 360° coverage for efficient outdoor repairs
Construction Site Logistics: Transfer materials (900kg max) between vehicles with 2015mm lifting height for elevated loading/unloading
Roadside Assistance: Quickly lift tires/drive shafts (450kg) for efficient remote area rescues

Foldable Engine Crane

Auto Shop Engine Work: Hydraulic model precisely lifts car/truck engines (1000kg max) with 4-gear weight matching
Farm Equipment Repair: Standard model handles tractor engines (1000kg) with wide 978mm frame for stability
Factory Component Handling: Hydraulic wheels move 300-750kg machine tools between production areas with single-operator control

Frequently Asked Questions

360° Stationary Rotating Swivel Boom

Q: Boom jams during rotation?
A: Clean joint, apply lithium grease (2-3mm). If persists, check/replace worn bearings with manufacturer-approved parts.

Q: Base loosens during use?
A: Retighten bolts to 40-45N*m (diagonal pattern). For thin truck beds (<3mm), add 5mm steel plate under base.

Foldable Engine Crane

Q: Hydraulic pump loses pressure?
A: Check 46# hydraulic oil level; inspect/tighten connections (15-20N*m); replace aged nitrile rubber seals.

Q: Wheels slip during lifting?
A: Use rubber mats on smooth surfaces; adjust wheel height on uneven ground; ensure load center of gravity aligns with crane center.
