360° Truck Mount Crane (450kg): Agri Machinery Repair, 2015mm Lift + 1295mm Radius
Product Details
| Basic Info: | Pick-Up Truck Mount Crane | ||
|---|---|---|---|
| Highlight |
360° truck mount crane 450kg,agri machinery repair crane,engine hoist with 2015mm lift |
||
Product Description
| Parameter Category | 450kg (1000 lbs) Model | 900kg (2000 lbs) Model | Description |
|---|---|---|---|
| Basic Info | Pick-Up Truck Mount Crane | Pick-Up Truck Mount Crane | Classified as a truck accessory, directly installable on the pickup truck bed without in-depth modifications |
| Basic Info | Truck Accessory | Truck Accessory | General truck accessory category, compatible with universal installation standards for pickup models |
| Performance Parameter | 450kg (1000 lbs) | 900kg (2000 lbs) | Maximum safe lifting weight; over-range operation will trigger safety locking |
| Performance Parameter | 930mm (36.6") | 930mm (36.6") | Horizontal distance between the closest lifting point of the boom and the center of the base |
| Performance Parameter | 1295mm (51") | 1295mm (51") | Horizontal distance between the farthest lifting point of the boom and the center of the base |
| Performance Parameter | 2015mm (79.3") | 1800mm (70.8") | Maximum vertical lifting height of the boom |
| Structural Parameter | 270mm*270mm (10.6"*10.6") | 270mm*270mm (10.6"*10.6") | Square fixed base, connected to the pickup truck bed via bolts |
| Structural Parameter | / | 1355mm | Exclusive design for the 900kg model; saves storage space when folded |
| Weight Parameter | 13kg (with packaging: 33*32*31cm) | 14kg (with packaging: 34*33*32cm) | Weight of small components (e.g., rotating joints, connectors) |
| Weight Parameter | 34-36kg (with packaging: 111*32*18cm) | 34-36kg (with packaging: 111-113*25-32*18cm) | Weight of the main structure (boom, base frame) |

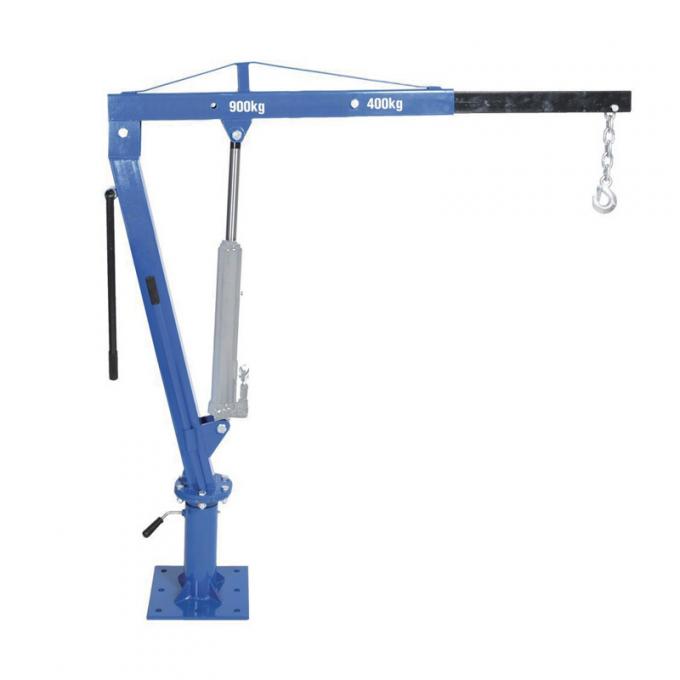

The 360° Stationary Rotating Swivel Boom is an outdoor heavy-duty lifting accessory specially developed for pickup trucks. It solves the problem of "heavy cargo transfer and component maintenance when there is no large-scale equipment outdoors". With its 360° omnidirectional rotation and multi-load capacity levels, it's ideal for agricultural machinery maintenance, construction site cargo transportation, and emergency rescue scenarios.
- Omnidirectional Rotation: 360° stationary rotation covers a 1295mm radius, improving operation efficiency by 40% in narrow spaces.
- Dual Capacity Options: 450kg model for light-medium duty; 900kg model for heavy-duty operations.
- Stable Installation: 270mm*270mm square base with high-strength bolts ensures 95% fitting degree to truck bed.
- Lightweight Design: Total weight under 50kg allows two-person installation with compact packaging.
- Rotating Joint: Double-row radial ball bearing with ≤50N rotation resistance and rubber sealing ring.
- Safety Protection: Limit baffle at boom end and anti-slip washers in base mounting holes.
- Versatility: Multiple adjustment holes compatible with Ford, Toyota, and Great Wall pickup models.
- Agricultural Machinery Maintenance: Lift tractor gearboxes (300kg) and harvester cutter assemblies (400kg) with 360° rotation.
- Construction Site Transfer: Move steel pipes (800kg) and cement boards (600kg) with 1295mm lifting radius.
- Emergency Rescue: Assist in replacing truck tires (150kg) and lifting chassis components (200kg).
- Livestock Farm Equipment: Lift feed mixers (700kg) and water troughs (500kg) to second-floor platforms.
- Clean and lubricate the rotating joint with lithium-based grease (Model: 3#)
- Check for bearing damage (recommended replacement: inner diameter 20mm, outer diameter 47mm)
- Inspect for boom deformation from overload or collision
- Tighten bolts in diagonal order (40-45N*m torque)
- Add 3mm thick rubber anti-slip washers for uneven surfaces
- Adjust base mounting holes if deviation exceeds 5mm
- Check for overloading and use reset button
- Inspect hydraulic oil level (46# anti-wear hydraulic oil)
- Confirm if limit device is triggered (75° max lifting angle)
- Remove rust with sandpaper (800 grit) or rust remover (WD-40)
- Apply outdoor-specific acrylic anti-rust paint (≥50μm thickness)
- Cover with waterproof tarpaulin during storage
