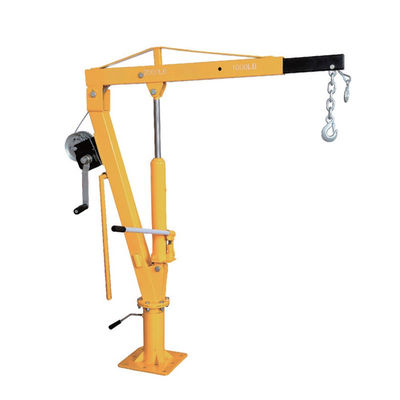

360° Truck Mount Crane (1000LB)Auto Shop Use, 4 Gears + Hydraulic Pump
Product Details
| Basic Info: | Pick-Up Truck Mount Crane | Capacity: | 450kg (1000LB) |
|---|---|---|---|
| Min Lifting Radius: | 930mm (36.6") | Max Lifting Radius: | 1295mm (51") |
| Max Lifting Height: | 2015mm (79.3") | Base Size: | 270mm×270mm (10.6"×10.6") |
| Highlight |
360° truck mount crane with hydraulic pump,1000LB auto shop crane 4 gears,hydraulic truck mount crane for auto shop |
||
Product Description
| Parameter Category | 1000LB (450kg) Basic Model | 2000LB (900kg) Enhanced Model | Description |
|---|---|---|---|
| Basic Info | Pick-Up Truck Mount Crane | Pick-Up Truck Mount Crane | Classified as a truck accessory, directly installable on the pickup truck bed |
| Capacity | 450kg (1000LB) | 900kg (2000LB) | Core load-bearing parameter, adapting to lifting needs of different weights |
| Min Lifting Radius | 930mm (36.6") | 930mm (36.6") | Horizontal distance between the closest lifting point of the boom and the base center |
| Max Lifting Radius | 1295mm (51") | 1295mm (51") | Horizontal distance between the farthest lifting point of the boom and the base center |
| Max Lifting Height | 2015mm (79.3") | 1800mm (70.8") | Maximum vertical lifting height of the boom |
| Base Size | 270mm×270mm (10.6"×10.6") | 270mm×270mm (10.6"×10.6") | Square fixed base, connected to the truck bed via bolts |
| Folded Standing Height | / | 1355mm | Exclusive design for the 2000LB model, saving storage space |
| Parameter Category | 1 Tonne (1000kg/2222LB) Standard Model | 1 Tonne (1000kg/2222LB) Hydraulic Model | Description |
|---|---|---|---|
| Basic Info | Foldable Engine Crane | Foldable Engine Crane | Used for lifting and moving engines and heavy components |
| Core Configuration | / | Single Piston Hydraulic Pump | Hydraulic model features labor-saving operation and precise speed control |
| Capacity | 1000kg (2222LB) | 1000kg (2222LB) | Hydraulic model has 4 preset lifting gears |
| Lifting Positions | / | 250kg; 500kg; 750kg; 1000kg | Gears can be switched on demand to avoid equipment damage |
| Frame Height | 1470mm (57.8") | 1500mm | Height of the main equipment |
| Frame Length | 1520mm (59.8") | 1450mm | Front-back span of the frame |
This heavy-duty lifting accessory is specially developed for pickup trucks, solving the pain point of cargo transfer and component maintenance without large-scale equipment outdoors. With its 360° omnidirectional rotation design, it serves as a mobile lifting platform for various applications.
- Precise Load-Bearing: The 1000LB model handles light-to-medium operations (200kg plows, 150kg generators); the 2000LB model focuses on heavy-duty needs (800kg steel pipes, 700kg feed mixers).
- Flexible Operation: 360° stationary rotation covers a 1295mm radius without moving the pickup. Base installation takes ≤30 minutes with 4 high-strength bolts.
- Durable Construction: Welded with Q345 high-strength steel, phosphating + anti-rust spray treatment, 48-hour salt spray test. Compatible with Ford, Toyota, and Great Wall pickups.
Focusing on heavy component handling and space saving, with a rated load capacity of 1000kg (2222LB). Available in standard and hydraulic models for auto repair, agricultural machinery maintenance, and factory equipment relocation.
- Hydraulic Model: Single-piston hydraulic pump with operating force only 1/3 of standard model. 4 load gears (250-1000kg) for precise lifting.
- Standard Model: 1470mm frame height + 978mm wide base for stable operation. 76kg weight suitable for fixed workstations.
- Space-Saving: Hydraulic model volume reduced by 60% when folded. Standard model can be further compressed by disassembling wheels.
- Agricultural Machinery Maintenance: Lifts tractor gearboxes (350kg) and harvester cutter assemblies (400kg) with 360° rotation for alignment.
- Construction Site Transportation: Transfers steel pipe bundles (800kg) and cement boards (600kg) with 1295mm maximum radius.
- Emergency Rescue: Assists in replacing truck tires (150kg) and lifting drive shafts (200kg) in narrow road conditions.
- Auto Repair Shops: Disassembles car engines (400kg) in 500kg gear and installs light truck engines (800kg) in 1000kg gear.
- Agricultural Machinery Stations: Handles 800kg tractor engines and 600kg harvester gearboxes with stable 978mm width base.
- Factory Equipment Relocation: Moves 300kg motors and 750kg small machine tools with hydraulic pump operation.
Q: What if the boom gets stuck during rotation?
- Clean and lubricate rotating joint with Grade 3 lithium-based grease
- Check bearing for rust or damage (replace if needed)
- Inspect for deformation from overload operation
Q: How to handle base shaking during lifting?
- Tighten bolts diagonally (40-45N*m torque)
- Add 3mm thick rubber anti-slip washers
- Adjust mounting holes if deviation exceeds 5mm
Q: What if hydraulic crane won't lift/lower?
- Check hydraulic oil level (add 46# anti-wear hydraulic oil if low)
- Inspect for pipeline leaks at joints
- Reset pressure relief valve if left open
